Wide belt grinding machines HESEMANN MFA10

Working width: 1350 mm Number of sanding units: 3 st. Workpiece thickness max.: 150 mm HESEMANN
Multi-purpose surface sanding machine
MFA 10

Grinding width 1,350mm
TRANSVERSE / LONGITUDINAL / LONGITUDINAL DLB

Feed speed 5-25m/min frequency controlled

Conveyor belt cleaning device
Working height constant 880 mm
Workpiece thickness 3-150 mm
Motorized adjustable

Pressure roller diameter 50 mm in the infeed of the machine

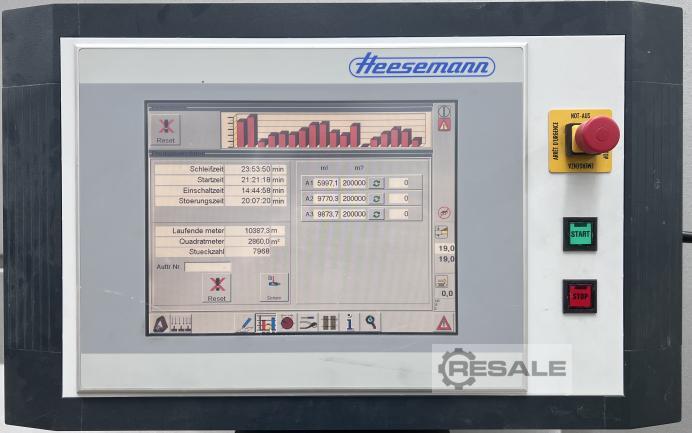

Industrial PC 12 inch
Operating System Windows XP, E
Touch screen
Program Memory for 100 programs

1 transverse grinding unit
Sanding belt dimensions 5,400 × 150 mm
Belt speed 2-20 m/s frequency-controlled
Drive power 15 KW
Pressure fin system
Blasting device, controlled depending on the workpiece

1 longitudinal grinding unit
Abrasive belt dimensions 2,620 × 1,400 mm
Belt speed 1.8-18 m/s
Drive power, 15 KW frequency controlled,
Belt blasting device, controlled depending on the workpiece
Synchronous and counter-rotation

1 longitudinal grinding unit with pressure flake belt
Abrasive belt dimensions 2,620 × 1,400 mm
Belt speeds 1.6-16 m/s
Drive power 15 KW frequency regulated

Three pressure bars with computerized selective pressure control system CSD
with infinitely variable pressure adjustment of the individual pressure elements 16 mm wide

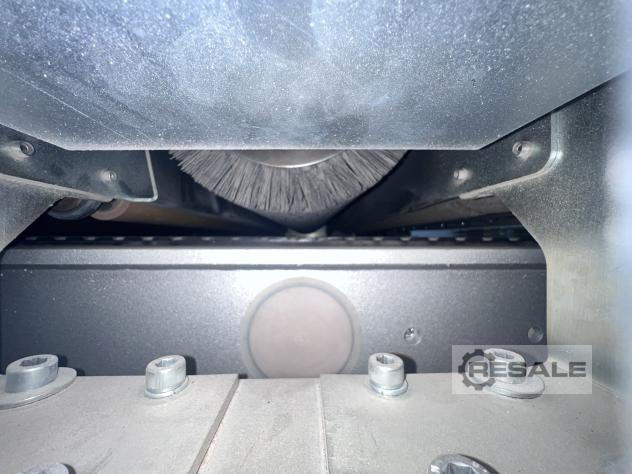

1 brush unit
Central, height-adjustable, including extraction hood and pressure roller
Diameter 150 mm
Drive power 1.5kW

1 workpiece suction clamping system
for workpieces shorter than 700 mm in the feed direction

1 ionization tab from the top
For dissipating static charges including high-voltage transformer

1 workpiece blasting device
With rotating compressed air nozzles within the machine room including extraction hood

seller offer No. resale 168794387
