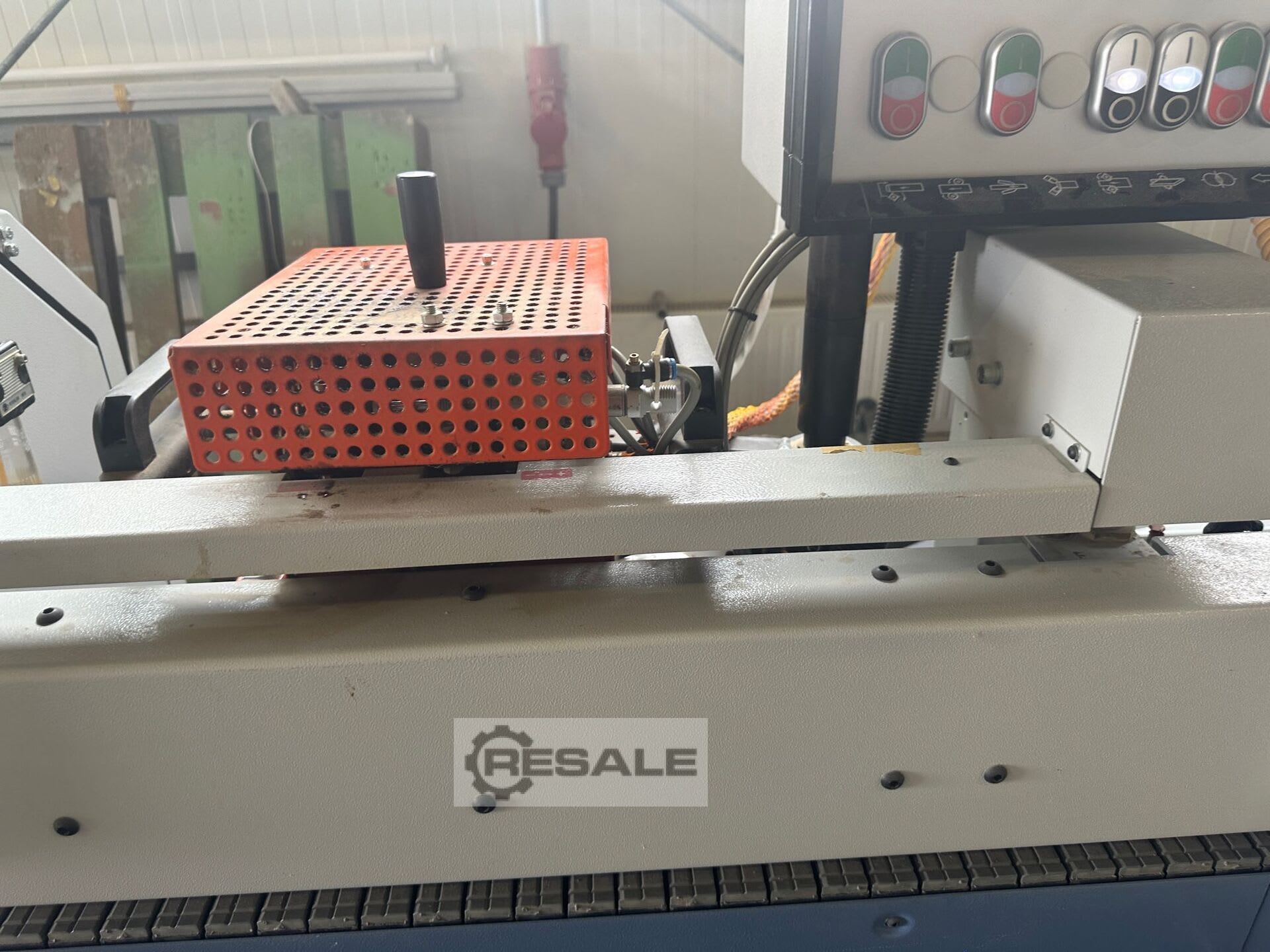

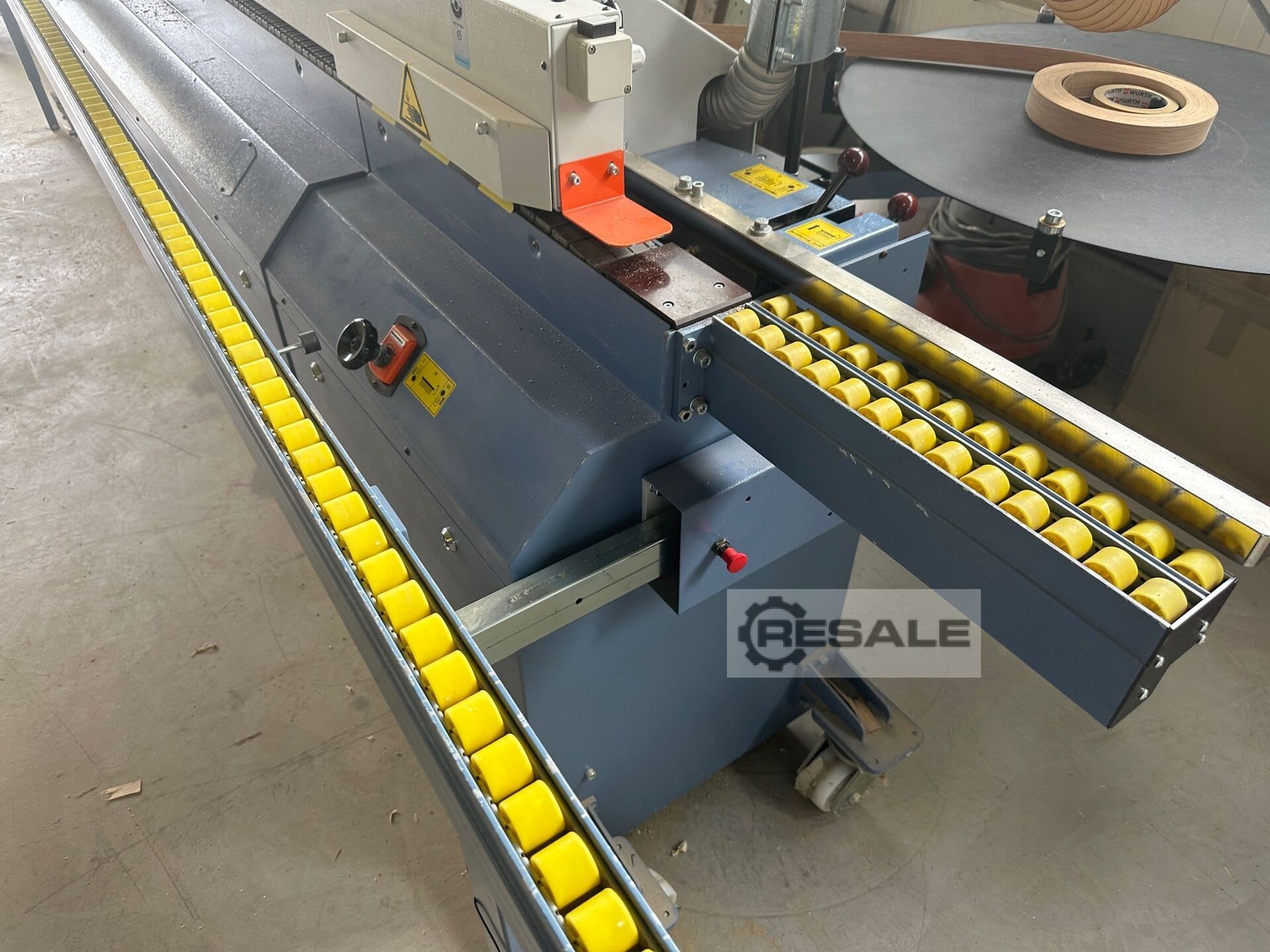

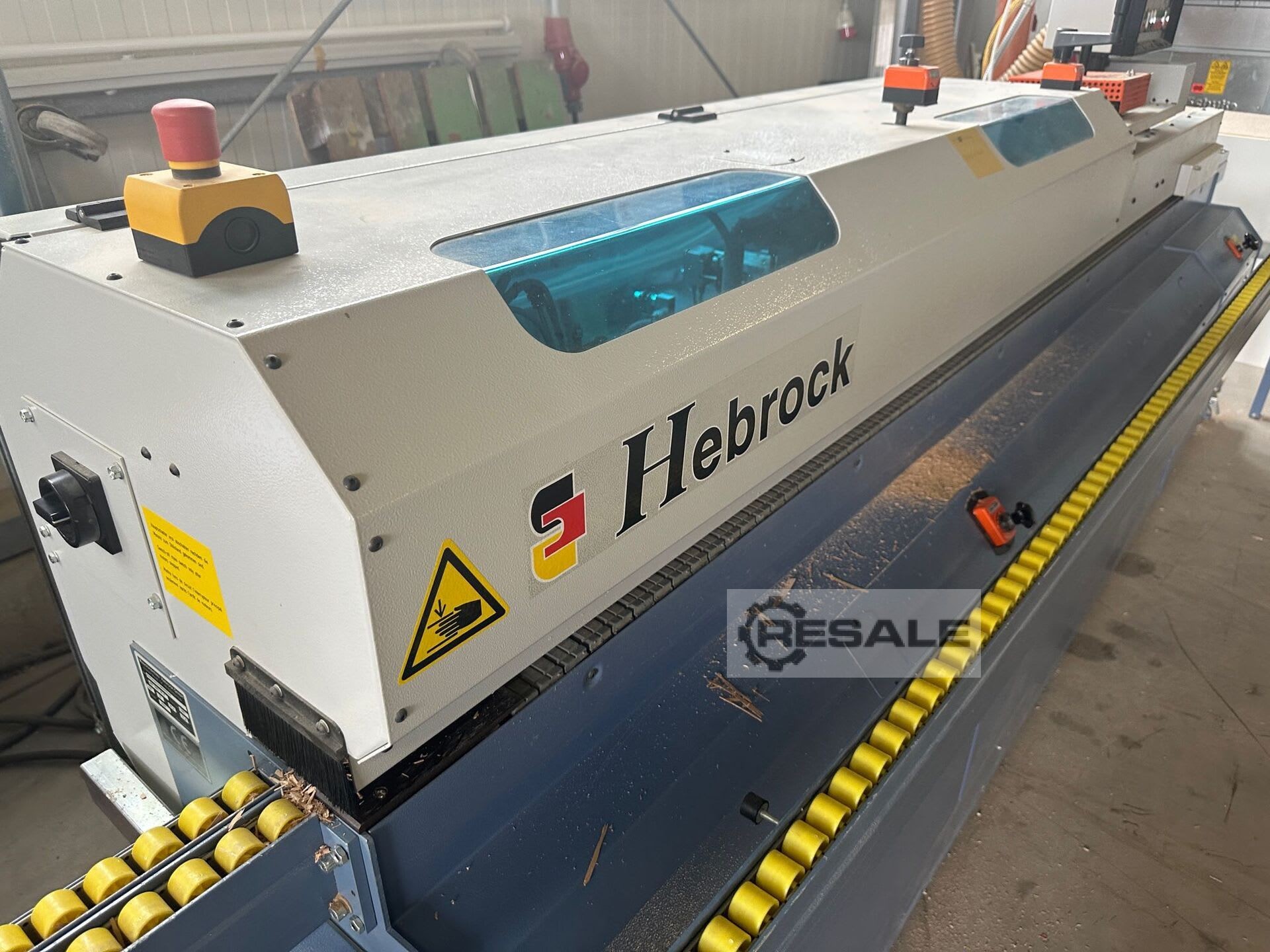

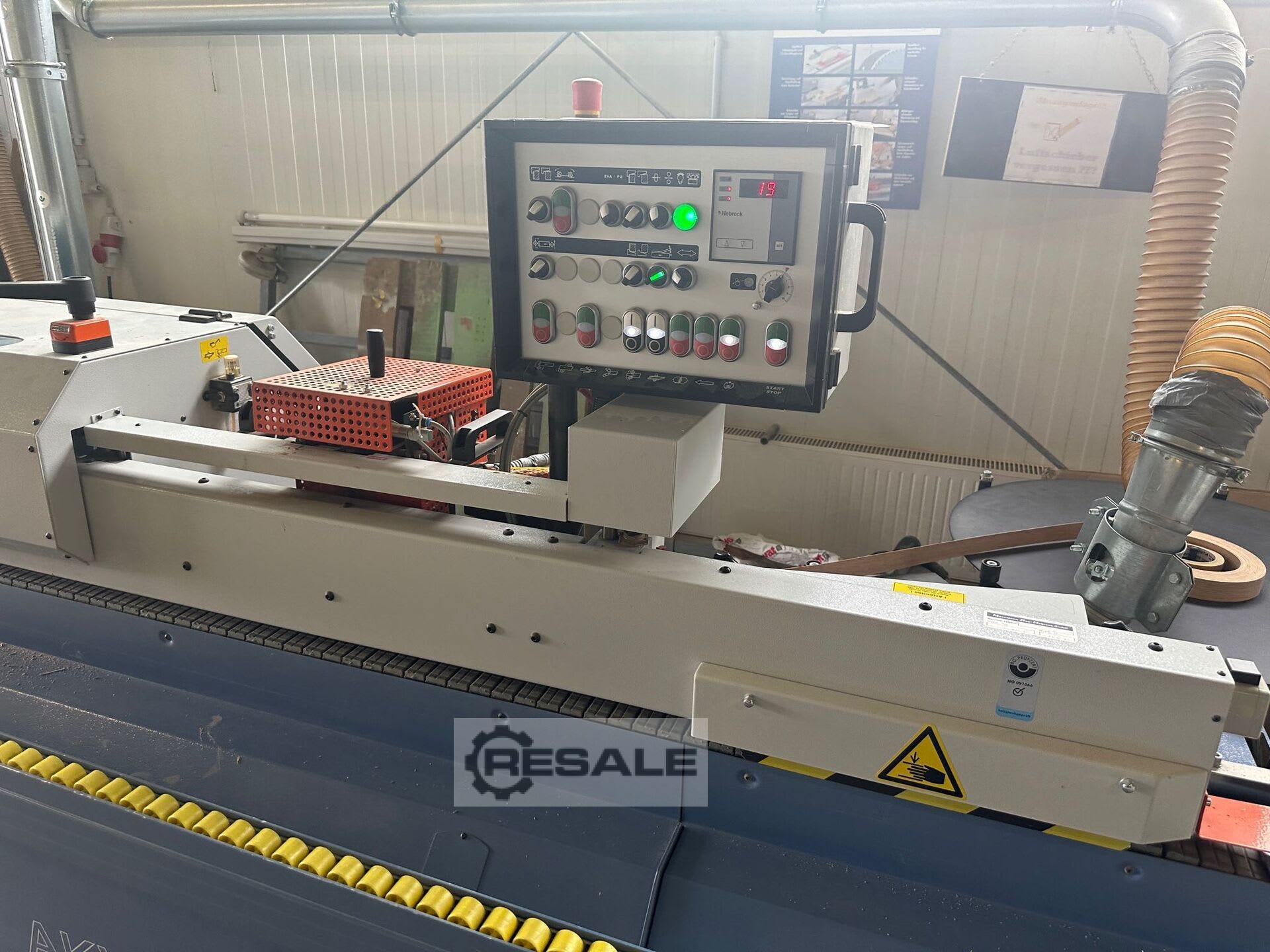

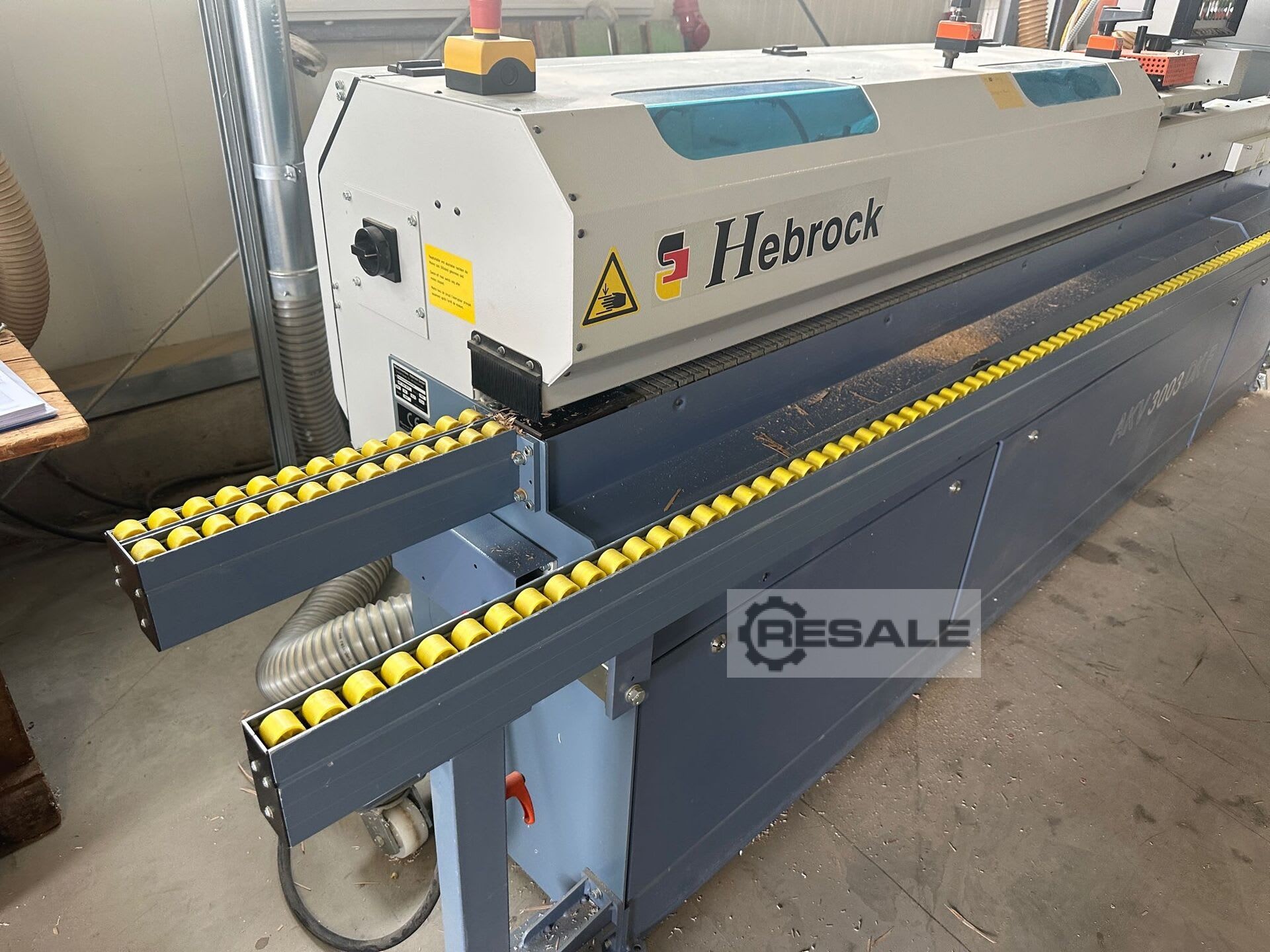

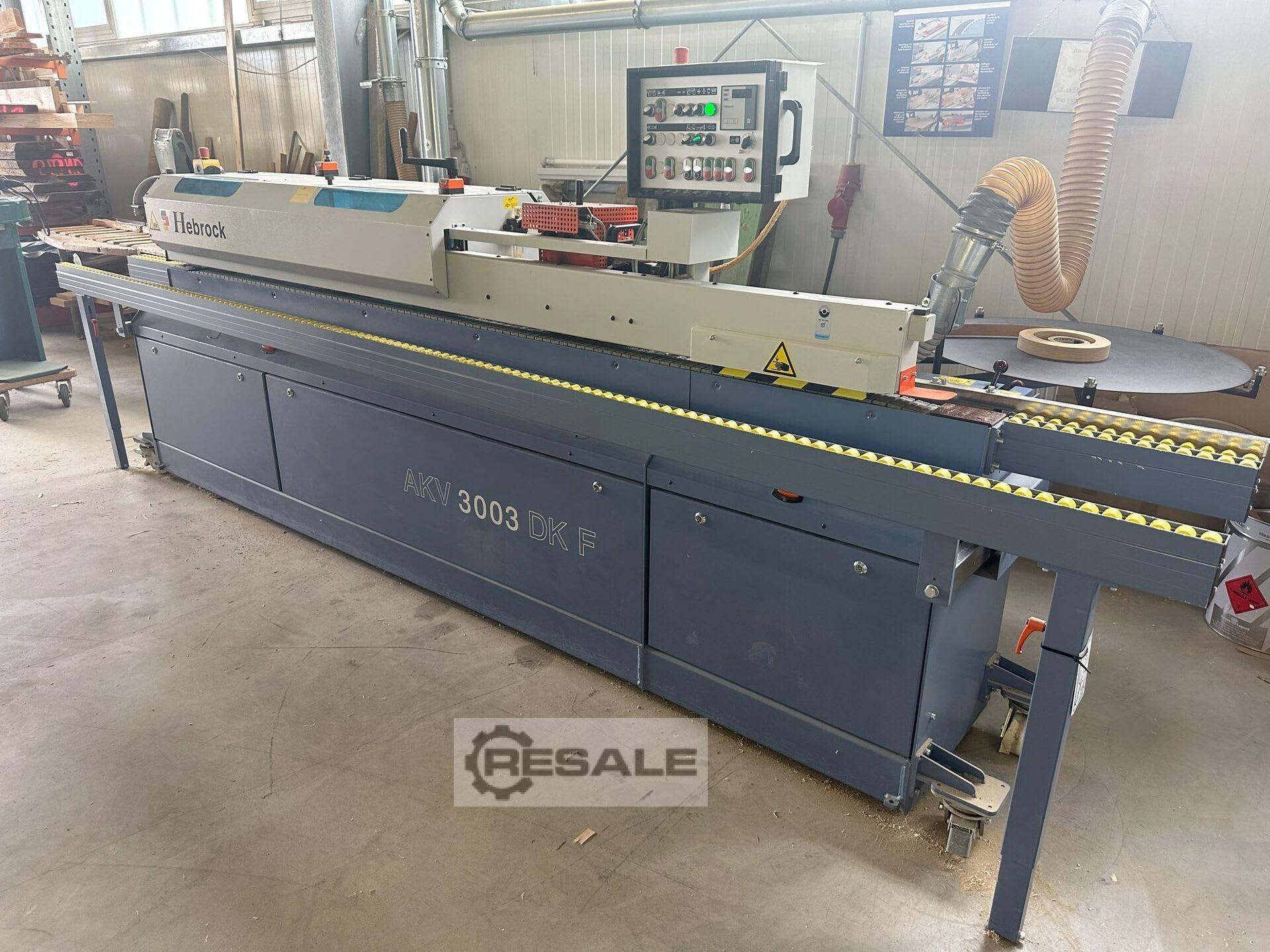

Edge gluing machines HEBROCK AKV 3003 DK F

Excellent condition - Fully operational - Loading / Transport possible!

maximum workpiece thickness 45 mm

minimum workpiece length 220 to 350 mm

maximum edge material height 50 mm

minimum edge material length for fixed dimensions 330 to 400 mm

maximum edge material protrusion top and bottom 2.5 mm

Edge material protrusion front approx 10 to 20 mm

Edge material rear protrusion ca 10 to 30 mm

.
minimum workpiece width 90 mm

minimum workpiece thickness 10 mm

maximum length with extension arm 4269 mm

Working length with boom 4269 mm

Depth with roller plates 1425 mm

Working table height 888 mm

Working width with support pushed in 210 mm

Working table width with support rail extended 680 mm

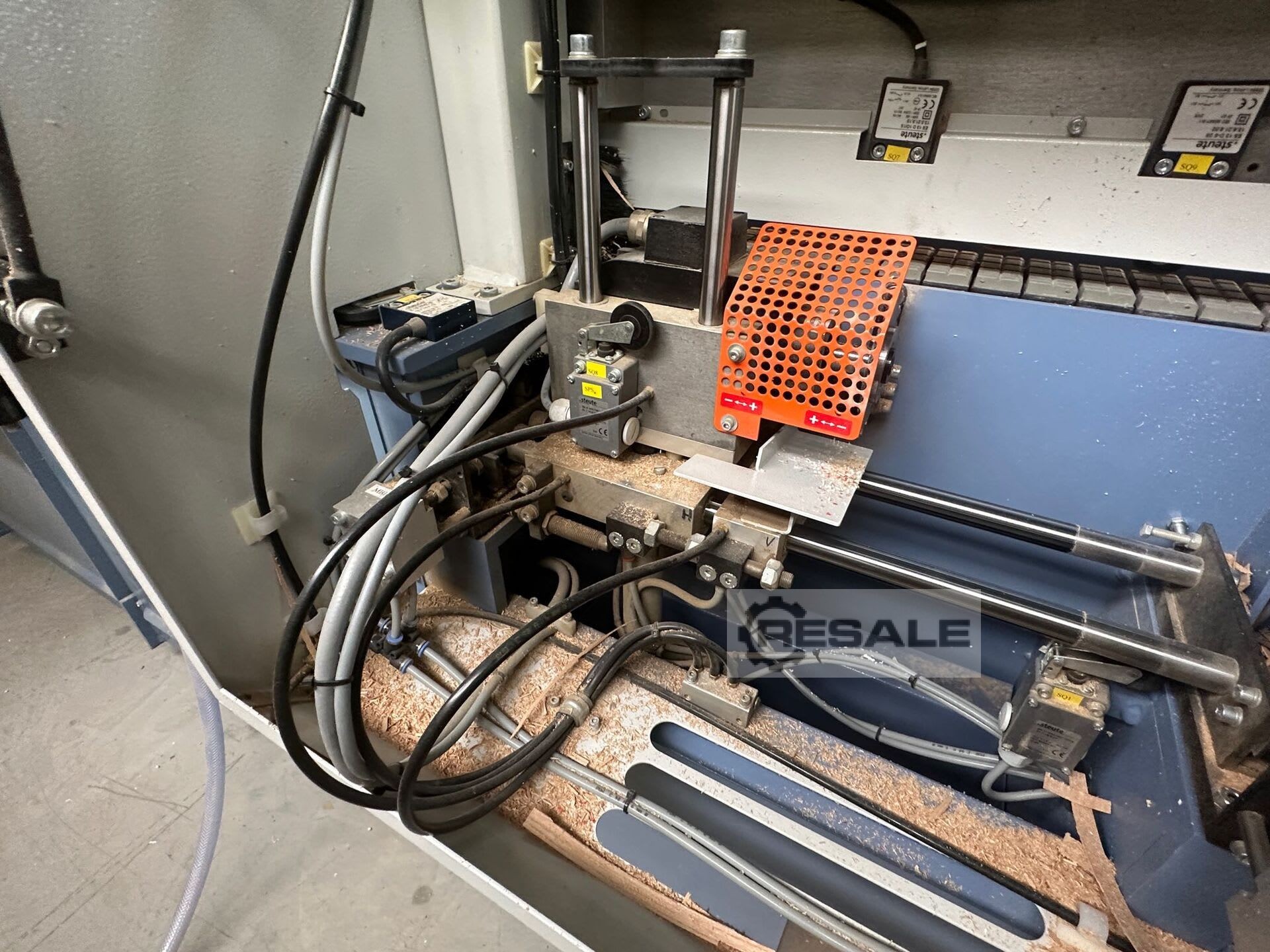

With milling unit
seller offer No. resale 169375718
