Mixers FRYMAKORUMA (PROXES) DinexH 200

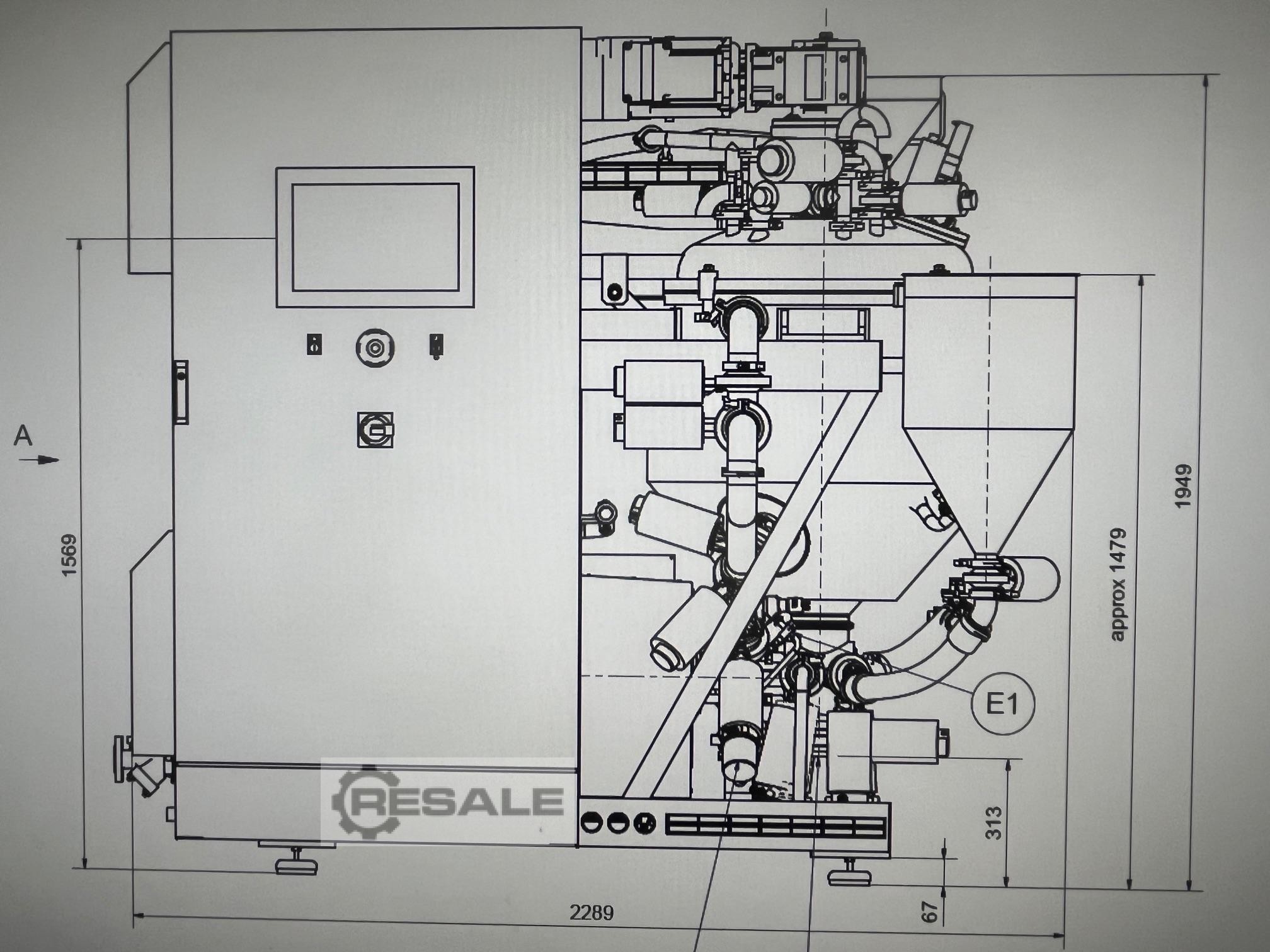

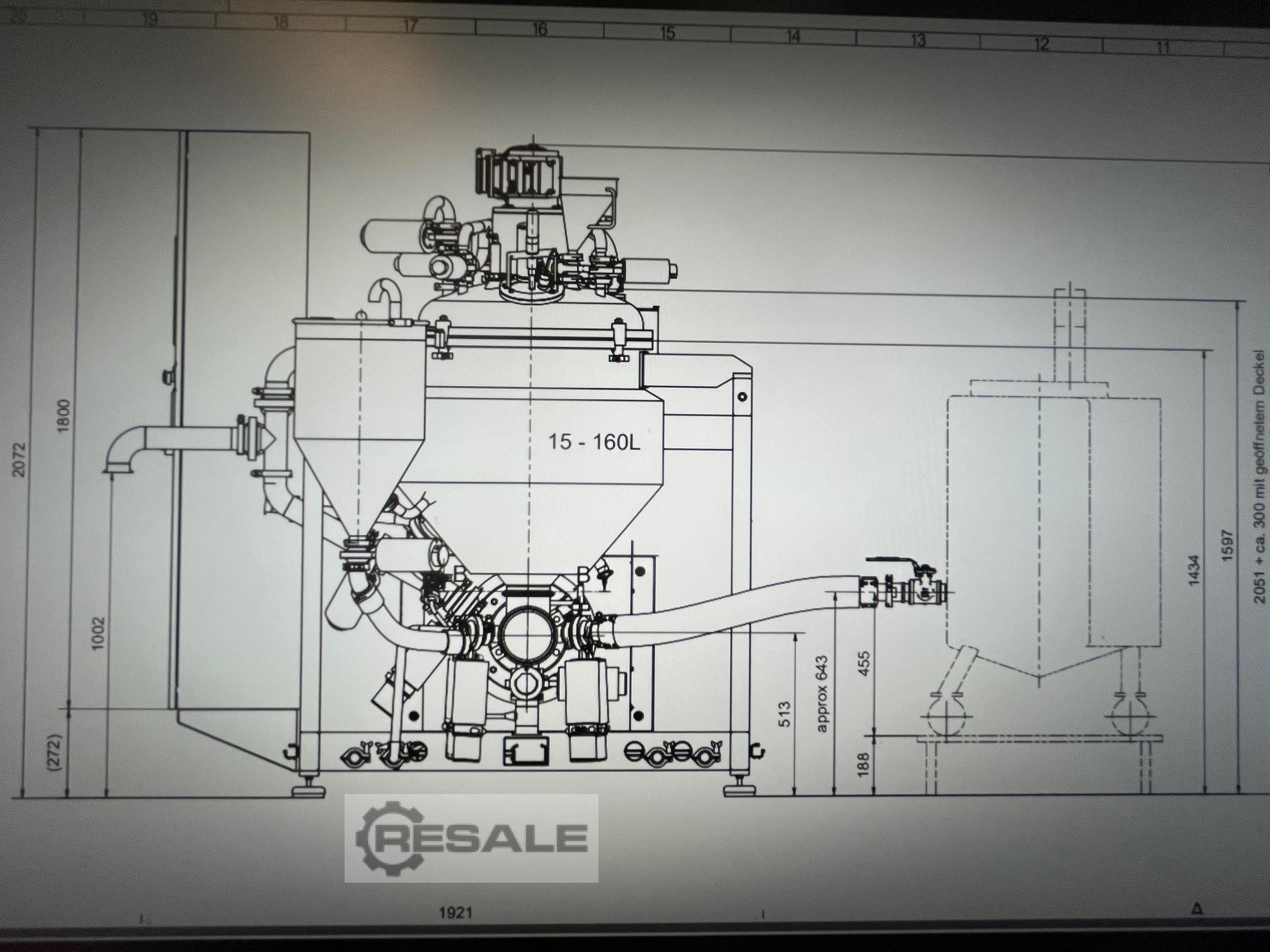

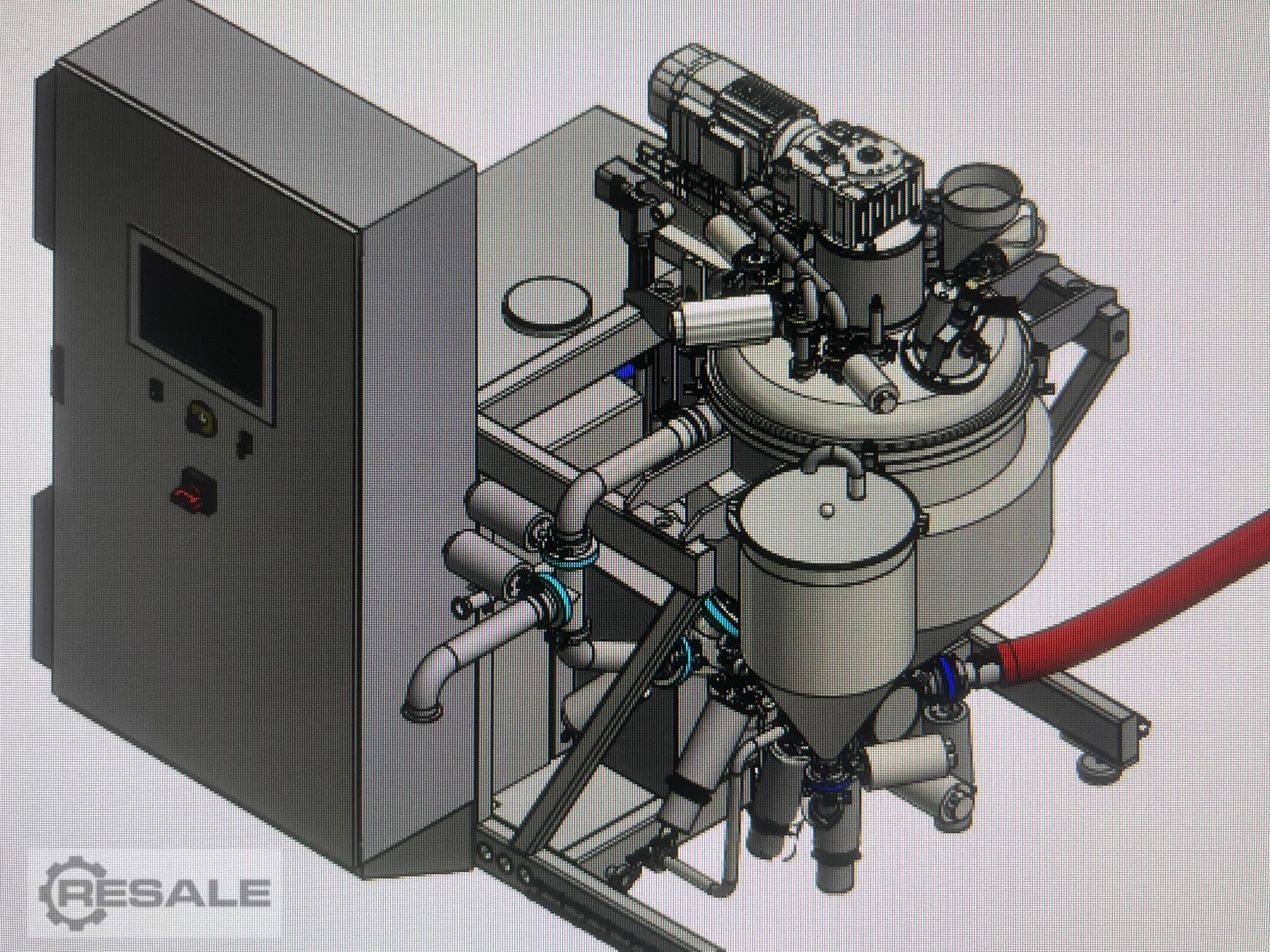

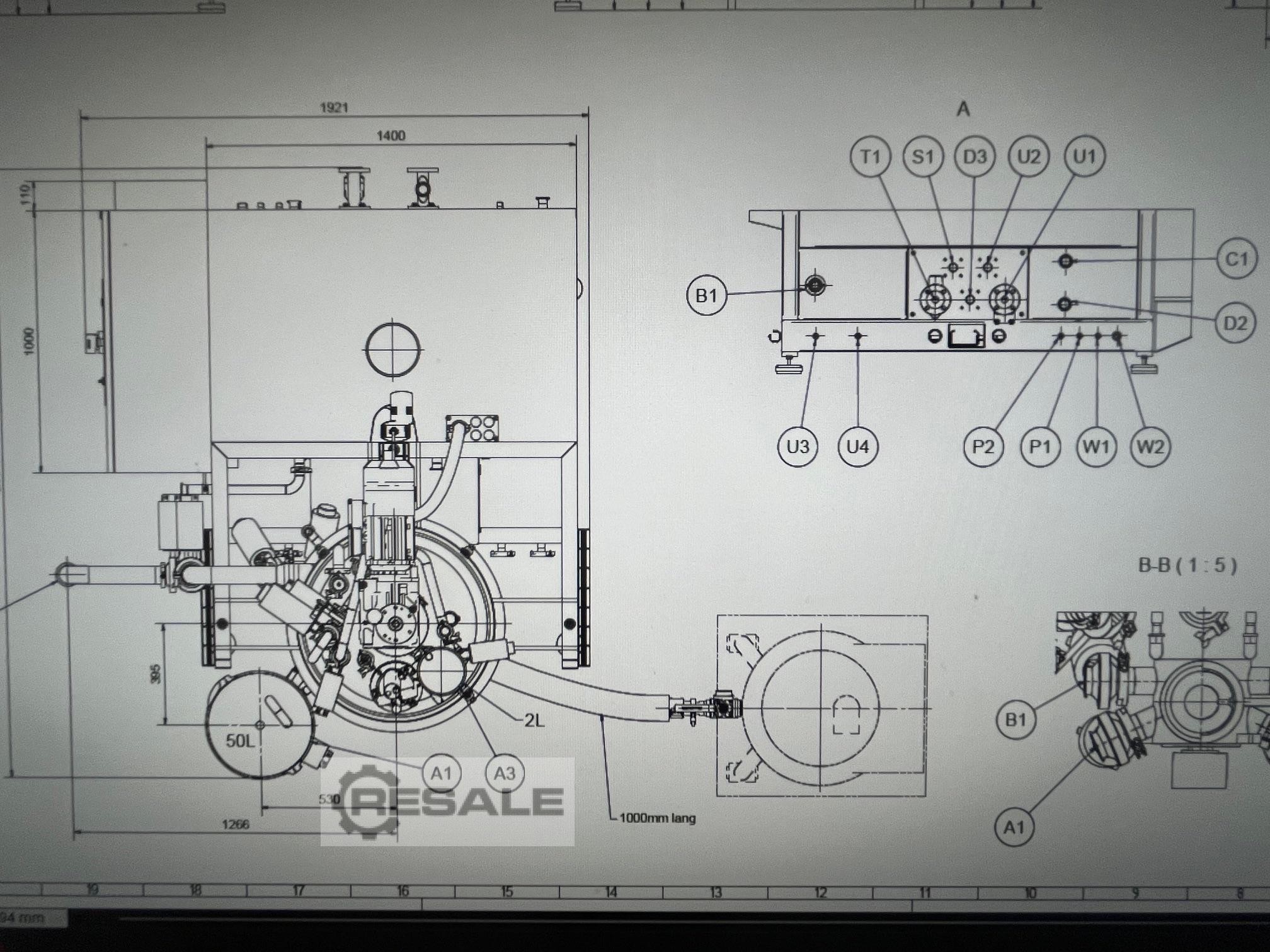

FrymaKoruma (ProXES) Type DinexH 200 vacuum high shear emulsifier for the production of high-quality emulsions, suspensions, creams and lotions, total volume 200 litres, usable volume 160 litres, minimum volume 15 litres, usable operating pressure product chamber -1.0/0.0 bar, usable operating pressure double jacket -1.0/+6.0 bar, scraper agitator (single-arm, counter-rotating scraper agitator, direction reversal for cleaning, flow breaker with perforated mixing blade mounted in the lid, PTFE scraper plate, agitator drive 1.5 kW, agitator speed fixed), high-performance homogeniser (rotor/stator system, tool size 160 mm, power 22 kW), main vessel lid (domed design, camera installed on the lid, 1 DN 125 sight glass incl. wiper and light, 1 DN 32 vent valve incl. electro-pneumatic valve, 1 pressure transducer, lid closure by means of segment clamp screws), container lid can be lifted, tilted and lowered, CIP cleaning by means of 3 cleaning heads, circulation line, receiving container (funnel (50 litres) for liquids), H6315523 vacuum pump (2.2 kW), H6315523 electrical connection 400V/3Ph/PE/50Hz, Siemens S7-300 PLC control with HMI 19" Siemens touchscreen, machine dimensions approx. 2000 x 2200 mm (WxD), machine height with closed lid approx. 2150 mm, machine height with open lid approx. 2400 mm, includes Dino Maschinenbau type CD6DR K electric steam generator (10 bar) incl. mixed water cooler type MWK 2 S.
In "as-new" condition (unused and still in original packaging)
seller offer No. resale 168737908
