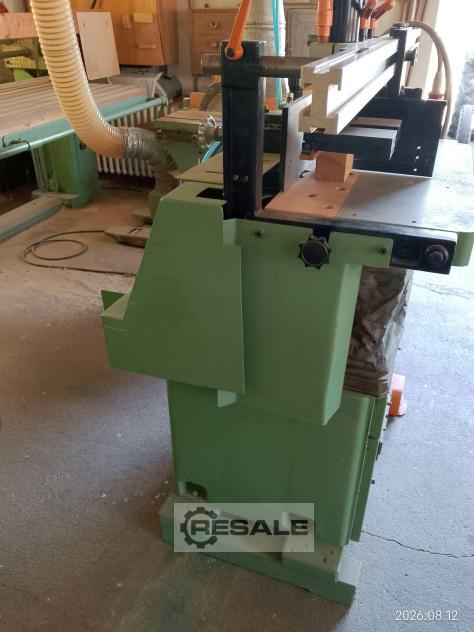

Cross-profile millers FESTO UP65

Cross-section milling machine Festo
Universal profiling cutter Type: UP 65

Milling finger tines and finger joints
Cross-profiling in endless cycle succession

Milling depth maximum 65 mm
Maximum working height 100 mm
Tool clamping width 200 mm
Support table length x width 657 mm x 272 mm
Motor power 7.5 kW
Speed of the milling spindle 4,300 rpm
Tool flight circle maximum 250 mm
Milling spindle diameter 40 mm
Cutting speed 56 m/sec.
Working cycles maximum 8 per minute
Air consumption per work stroke 14 NI (standard liters)
Cutting cross-section per stroke maximum 60 cm²
Air requirement 20 m³/min.
Extraction connection 1 x 250 mm x 140 mm, 1 x 120 mm diameter
Speed of table movement up and down can be regulated


Weight: 300 kg
L x W x H : 850 mm x 700 mm x 1,170 mm
seller offer No. resale 9854
