Pallet Automation FASTEMS MLS-MD

Manufacturer: FASTEMS

Year of Manufacture: 2007

Model: MLS-MD

Type of Machine: Multi-Level System Medium Duty (MLS-MD) - Linear Pallet Storage System

Technical Specifications:

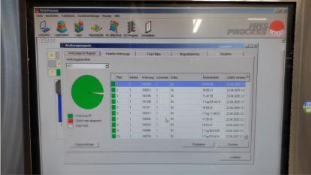

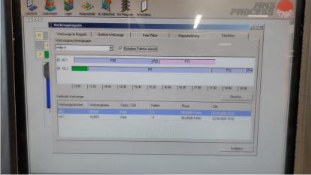

- Control: Fastems MMS4
- Current: 3x63A
- Power Supply: 400V AC, 50/60Hz
- Compressed Air Connection: 6.5 bar

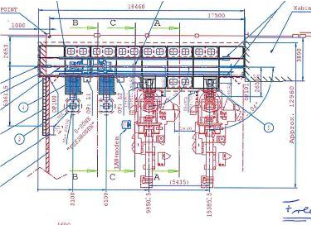

- Dimensions: Approximately 18.5m length x 5.1m height
- Shelf Spaces: 42 total, maximum height 1095mm each

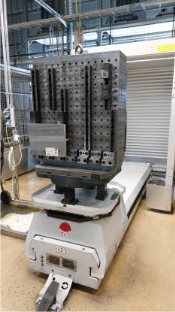

- Pallet Size: 630 x 500m
- Handling Weight: 1,500 kg
- Equipment / Setup Bays: 2
- Designed For: 2x Heller FP4000
- Axes: 3 axes - X-axis (travel motion of storage and retrieval unit), Y-axis (lifting motion), Z-axis (load handling device)
- Cooling System: Yes, leakage oil extraction system
- Maximum Speed of Storage and Retrieval Unit: 0 to 2.5 m/s
- Pallet Change: Yes
- Special Feature: Retrofit performed in 2017
- Scope of Delivery: Shelf storage, storage and retrieval machine, and setup stations. Delivered without pallets.
