Thread Cutting Machines FALKEN BHK 02 (M24)

thread dia.: bis M 24
turning speeds: max. 280 U/min
thread: M5 - M24
working area: 2050 Rmax.
work height max.: 900 mm
table surface area: 700 x 900 mm
oil volume: 100 l
engine output: 3.0 kW
weight - pallet system: 280 kg
Equipment:

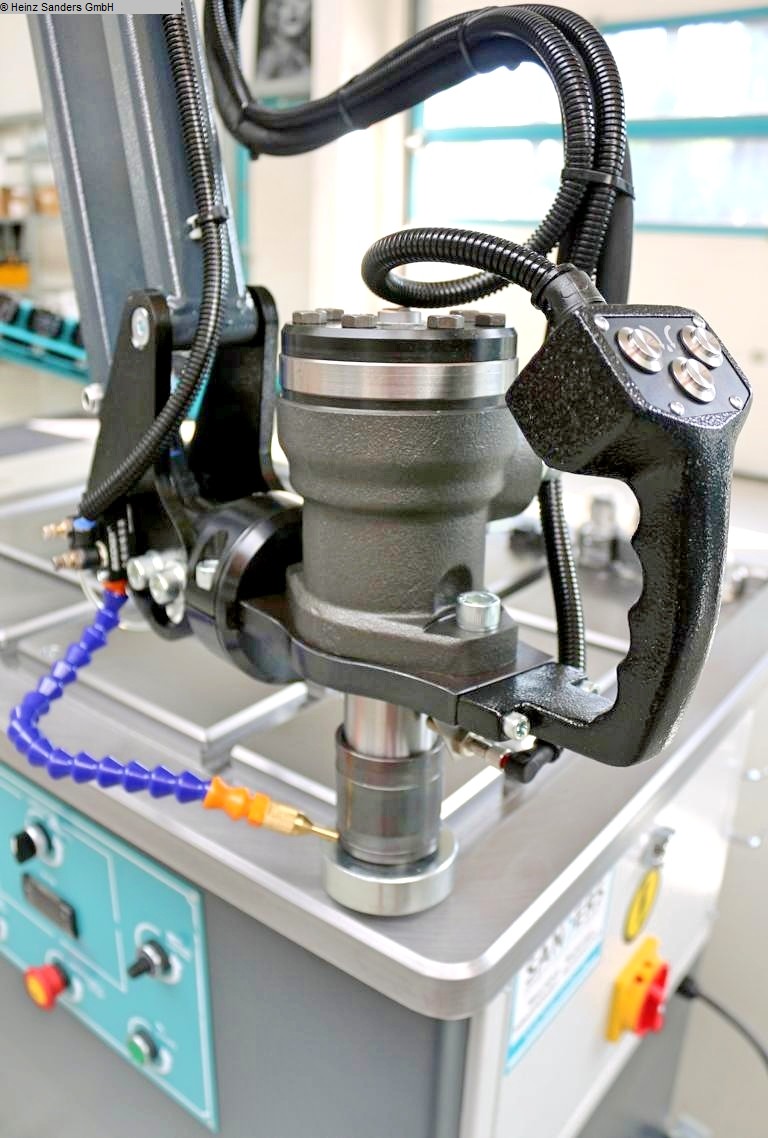

- electro-hydraulic tapping machine
- Large working range (max. radius 2050 mm)
Smooth swivel movement, e.g. due to built-in gas pressure dampers
- Mobile machine base frame
Oil tank hydraulic unit integrated in the base frame
Hydraulic pressure gauge
- Vertical / horizontal thread cutting possible
- Connection cable with 16A plug

Special accessories included in the scope of delivery :
- Tap quick-change inserts according to DIN 376
. M05 / M06 / M08 / M10 / M12 / M14 / M16 / M18 / M20 / M22

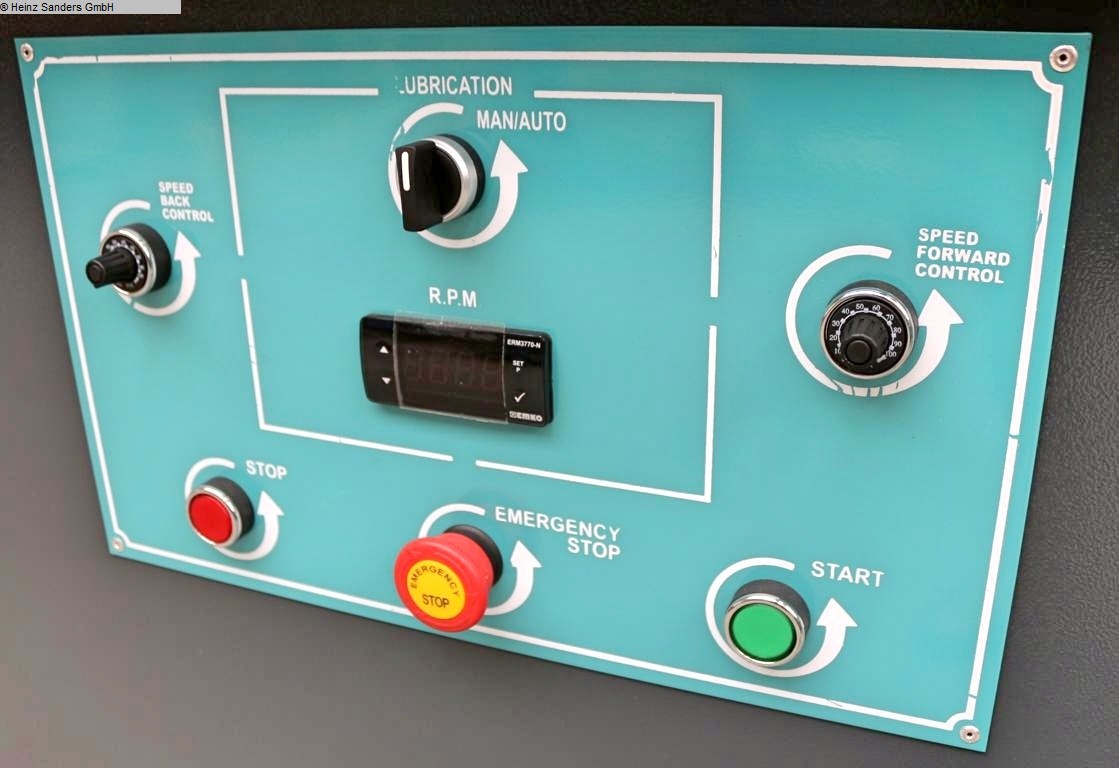

- Infinitely variable speed adjustment incl. digital display
- Minimum quantity lubrication (spray oiler/compressed air)

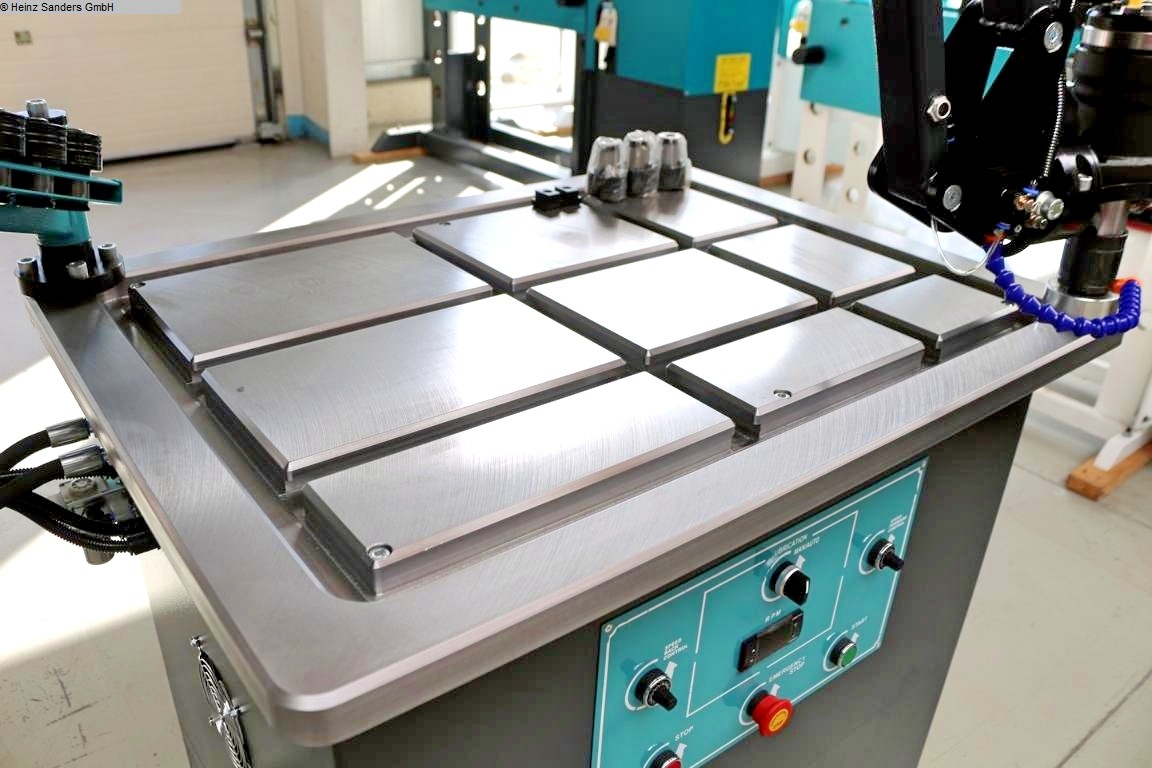

- T-slot clamping table
- Tapping head can be fixed with magnetic quick-action insert
