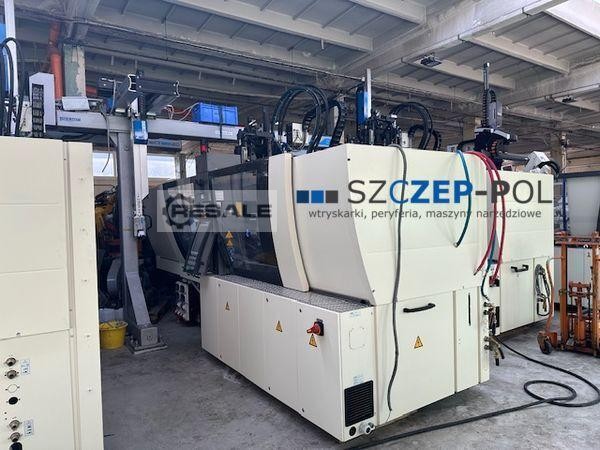

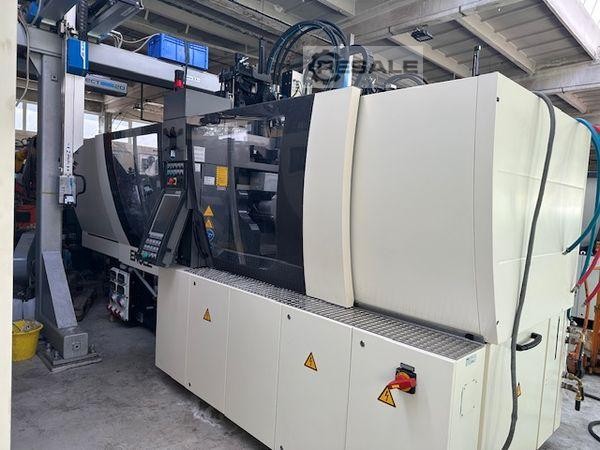

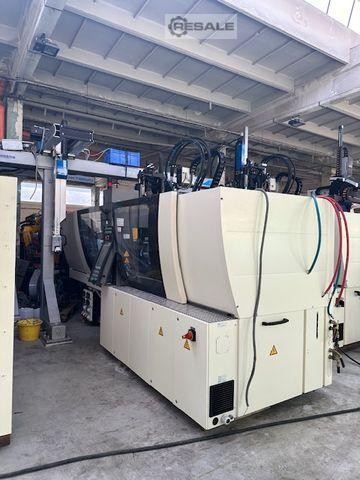

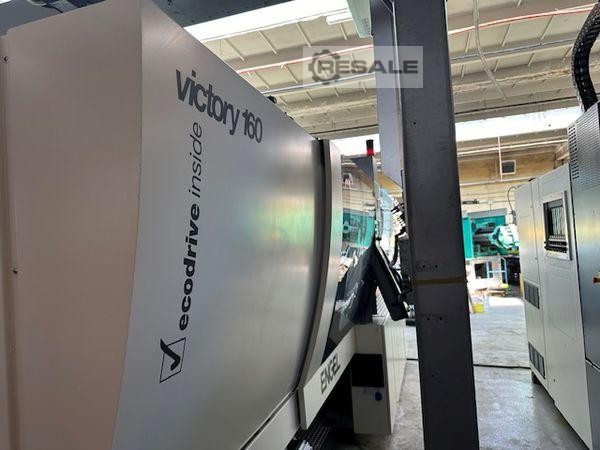

Injection molding machines ENGEL Victory 330H/80V/160

Clamping force: 1600 kN Engel Victory 330H/80V/160 combi Ecodrive / Production line with the Sepro SR S5-25 S3 Trans robot / Operating hours: approx. 18,000 h in automatic mode
Year of Make: 2013

Injection unit:
Screw diameter: 30 mm
Injection weight: approx. 100 g
Spray pressure: 2385 bar
Dosing volume: 113 ccm

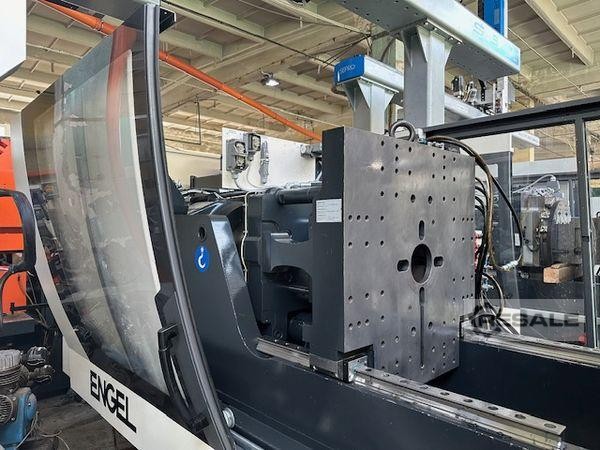

Clamping unit :
Clamping force: 160 t
Spar spacing: 0x0 mm
Size of the clamping plates: 750x750 mm
Ejector: hydraulic
Clamping unit: hydraulic

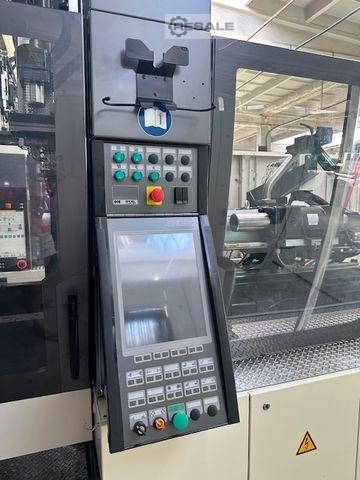

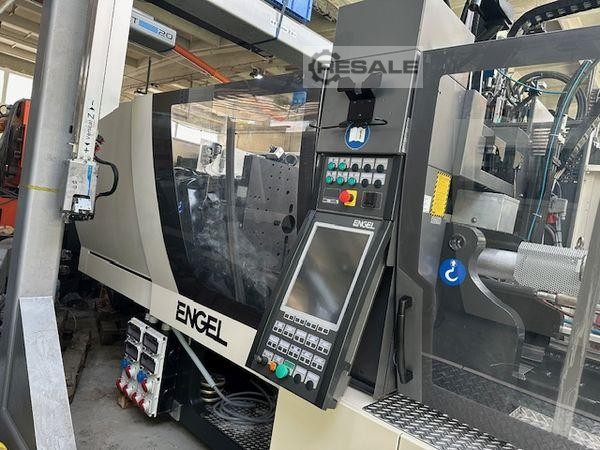

Control: CC 200 - touch screen

Additional equipment:
2K Injection Molding Machine with Turntable and Robot
Tie-bar-less machine, hybrid: energy-saving, high-speed and very quiet
Very good technical condition
Operating hours: approx. 18,000 h in automatic mode
Total number of operating hours: 24,312 h
Euromap 67
Robot interface
Air Valve x 5
Hydraulic core pull x 5
Control with hot runners x 16
Reinforced Injection Units – Bimetal
Main motors - 2 x servo motor controlled with inverter
Proportional valves on injection units - precise spraying
Screw diameter in vertical injection unit: ⌀22 mm - approx. 28 g/hp
It is possible to buy a turntable

Robot Sepro SR S5-25 S3 Trans
Year of Make: 2013
3-axis robot: 3 axes are driven by servo motors (electric): X, Y, Z S51231703 (telescopic)
Travel in axes S51231703 approx.: X-2000, Y-1000, Z-1500
Automatic axle lubrication
Touch control panel
The safety package for robots
Robot with adapter and protective housing
Purchase of the robot at an additional cost

Metrics:
Weight: 8700 kg
Length/Width/Height: 5.35x1.76x3.42 m

All offered machines are started by our service technicians before they are sold.
It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź.

Price: On request
seller offer No. resale 168403263
