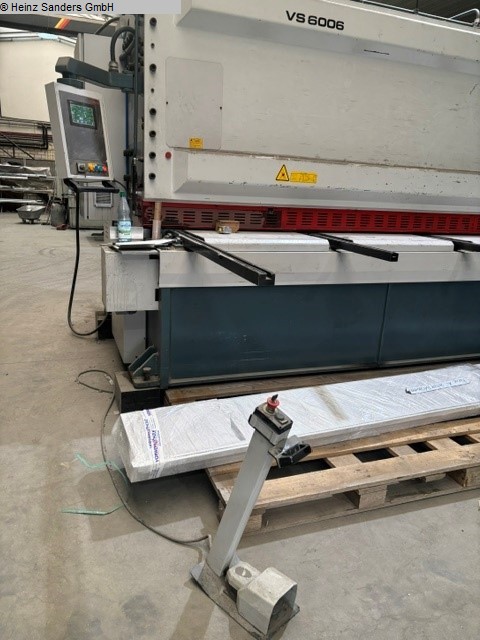

Hydraulic Shear DURMA VS 6006

sheet width: 6080 mm
plate thickness: 6.0 mm
rear stop: 1000 mm
cutting angle: 0.5 - 2.0 °
down holder: 29 Stk
no. of strokes: ca. 10 Hub/min
total power requirement: 22.0 kW
dimensions of the machine ca.: 7300 x 2150 x 2750 mm
weight: 25500 kg
Current list price: approx. 150.000 euros

Features:
- Electro-hydraulic, slide-guided sheet metal shear
- Electro-hydraulic cutting angle adjustment
- Electro-hydraulic cutting gap adjustment
- Electrically driven backgauge with ball screws
- Manual central lubrication
- Cut line illumination
- Ball bearings in the table
- Fold-up finger guard, 1.000 mm
- Side stop with T-slots, tilting stop, and scale
- 5 support arms with T-slots
- Photoelectric sensors on the rear of the machine
- 1 freely movable foot switch

Includes optional equipment:
- Pneumatic sheet metal holding device
