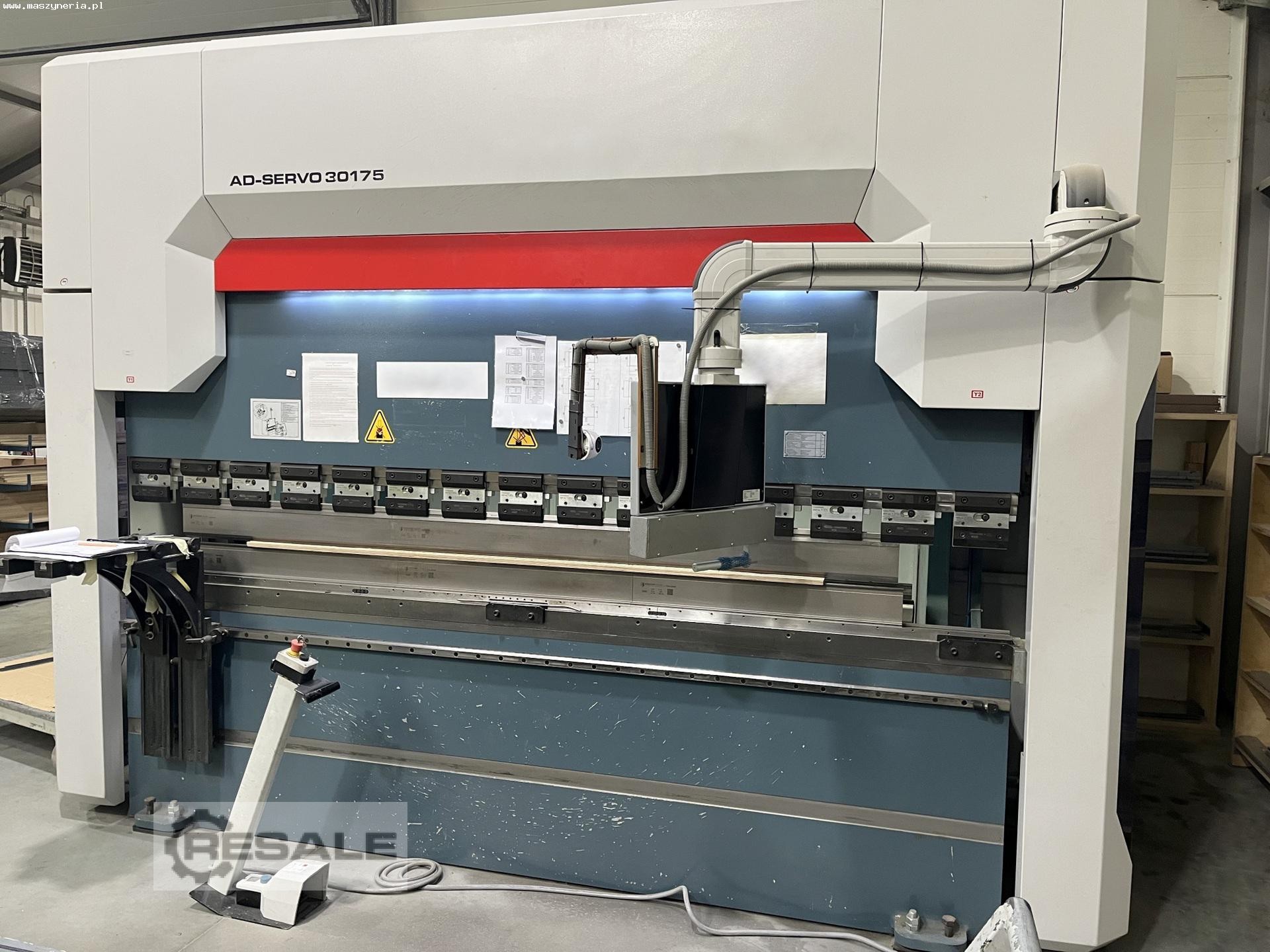

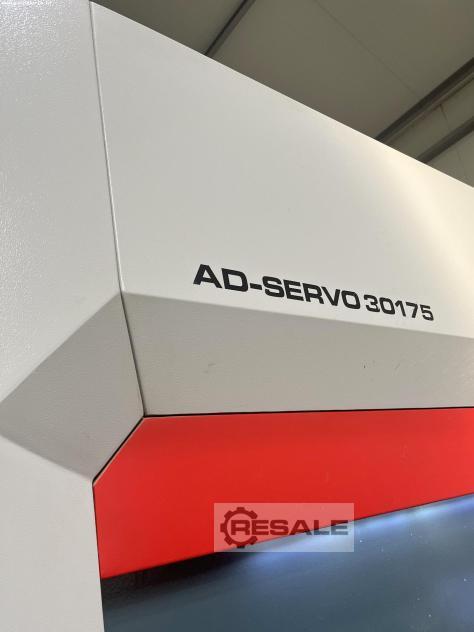

CNC Pressbrakes DURMA AD-SERVO 30175

DURMA AD-SERVO 30175 CNC hydraulic press brake was built in 2016 in Turkey by DURMAZLAR MAKİNA SANAYİ ve TİCARET A.Ş. This highly efficient machine is an effective answer to the daily challenges of modern business. The state-of-the-art technology used in it makes it more precise and energy-efficient than other presses on the market. The stress-relieved steel design, combined with economical drives, guarantees excellent bending results, even during the most intensive machining. All this is complemented by the intelligent CYBELEC CNC control with its intuitive interface. The DURMA AD-S 30175 CNC press brake weighs 11500 kg.

Technical specifications of the DURMA AD-SERVO 30175 press brake
- CNC controller: CYBELEC ModEva 15T
- maximum press force: 175 t
- maximum sheet metal length: 3050 mm
- slider stroke: 265 mm
- maximum weight of upper tool: 11 kg
- maximum M5651405 weight of bottom tool: 16 M5651405 kg
- TFT panel: CYBELEC S-MOD-15T
- foot switch control
- stopping time: 102 ms
- stopping distance: 8 mm
- safety distance : 263.2 mm
- oil tank capacity: 100 l
- maximum pressure: 4061 Psi
- motor power: 2x 6.2 kW
- power supply: 3x 400 V; 50 Hz
- dimensions (L x W x H): 4250 x 1850 x 3050 mm
- weight of the DURMA AD-SERVO 30175 machine: 11500 kg
seller offer No. resale 167403982
