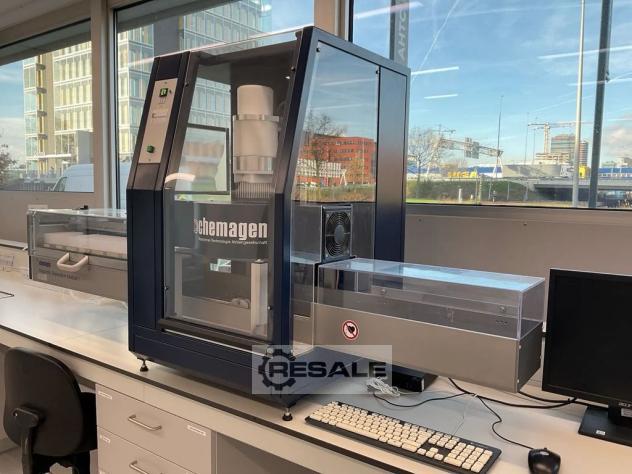

Nucleic Acid Extraction System CHEMAGEN Chemagic MSM I

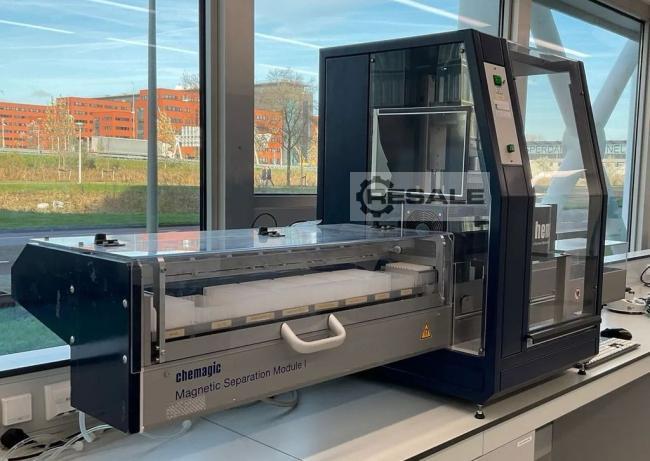

Chemagen chemagic Magnetic Separation Module I
The chemagic Magnetic Separation Module I (chemagic MSM I) automatically isolates nucleic acids within one hour. Viral RNA from 96 nasal mucosal swabs can be isolated simultaneously.

The Chemagen MSM-1 is an automated system for the high-throughput isolation of nucleic acids (DNA/RNA).

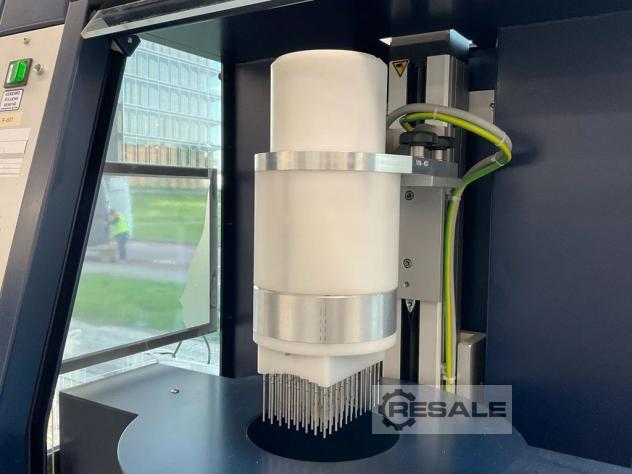

It uses a patented magnetic bead technology, in which magnetizable metal rods are immersed in the process solutions to efficiently collect the bound particles and bring them back into suspension.

Technical Features & Capacity

Throughput: The system has a modular design and can process 12, 24 or 96 samples simultaneously, depending on the rod head used.

Sample volume: It offers high flexibility for volumes from 10 μL to 10 ml.

Processing time:
96 samples (small volumes): approx. 15–60 min.
24 samples (medium volumes): approx. 35–60 min.
12 samples (large volumes): approx. 45–60 min.

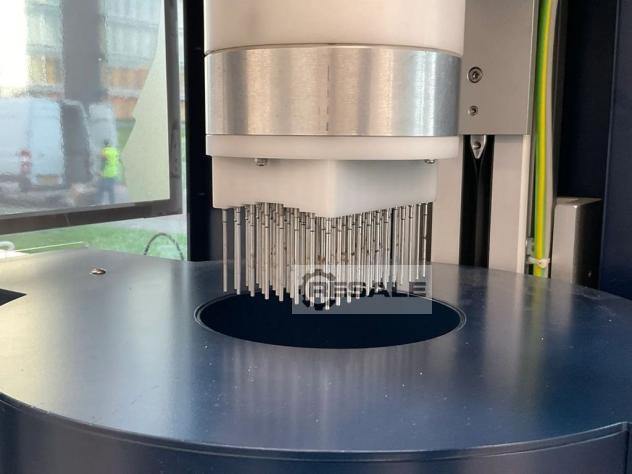

Technology: The particles are resuspended by rotating the metal rods at up to 2,000 rpm, which allows for high yield and purity without cross-contamination.

System Components & Extensions
Automation: The MSM-1 can be integrated into standard liquid handling units and often has a 6-axis industrial robot for fully automated
Sample tracking.

Software: The system is controlled via chemagic QA software, which is LIMS compatible.

Applications
The device is primarily used in research and diagnostics areas, including:

Biobanking and Human Genetics
HLA typing
Detection of viruses and bacteria
Extraction from various materials such as whole blood, saliva, serum or plasma

System Components
Actuators: High-precision linear axes for vertical movement and a rotation axis for mixing
Electromagnet: Central unit for controlling the magnetic attraction on the metal rods
Interfaces: Integrated PC with screen, keyboard and barcode scanner for sample tracking
Software: chemagic QA software (LIMS compatible, logging, user K6327004 management)

Special K6327004 features
Cross-contamination protection: The use of disposable protective covers (tip combs) for the metal rods prevents contact between samples.
Automation: Can be combined with the chemagic dispenser for automated buffer filling or integrated into liquid handling robots (e.g. Hamilton, Tecan).

Bar Heads: 96
Sampling volume: 10 - 400 μL
Number of samples: 1 to 96 samples

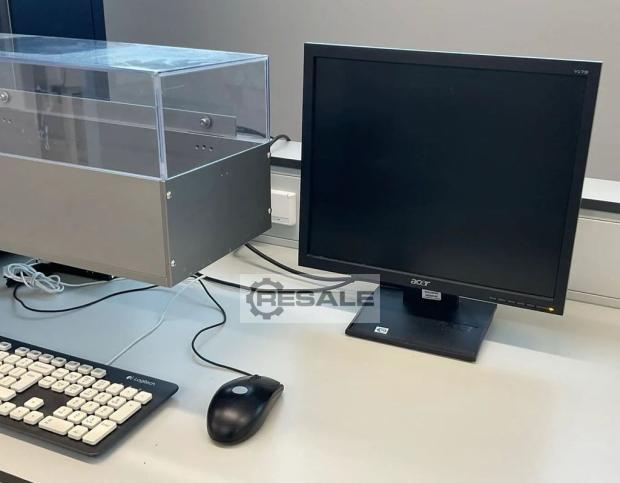

TFT monitor, keyboard and mouse

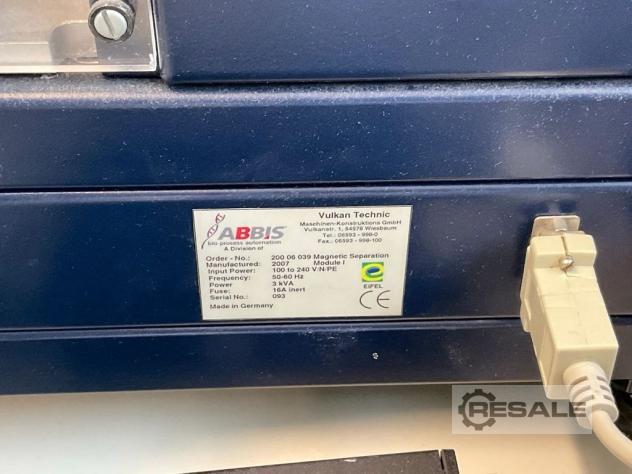

YOC 2007

Dimensions & Construction
Basic machine (W/D/H): approx. 600 x 640 x 950 mm.

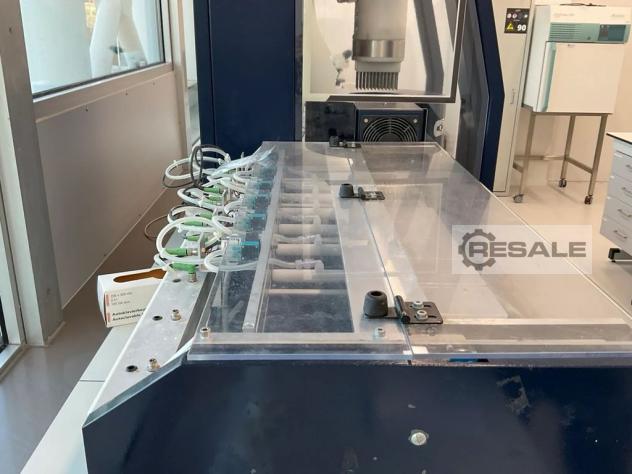

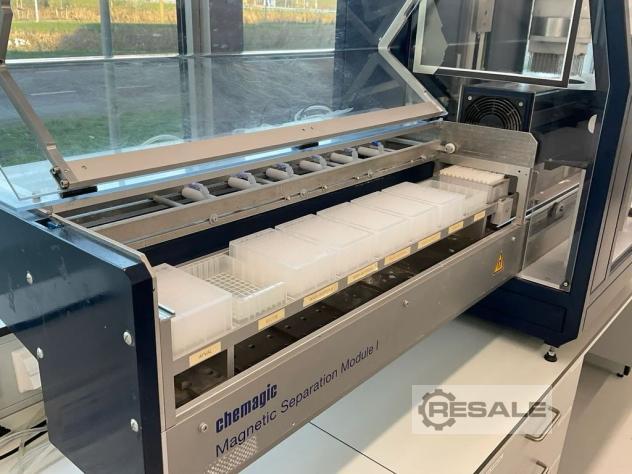

Carrier axle (W/D/H): 1940 x 170 x 200 mm (at full expansion stage with rail system).
Total space requirement: A fully configured system can take up to 2000 x 740 x 800 mm (L/W/H).
