Edge gluing machines BRANDT PROFILINE KDF430

Workingpiece thickness from to: 8 mm Total length: 4770 mm Equipment:
- Extended inlet ruler
- Joining milling unit 2 x 2.2 KW 200 Hz
- Gluing unit A8
- Cross-cut unit chamfer/straight 2 x 0.18 KW
- Pneumatic adjustment caps chamfer/straight
- Milling unit 2 x 0.55 KW counter-rotation with multiple roller probing
- Pneumatic 2-point adjustment
- Program adjustment side buttons
- Shape milling unit 1 x 0.35 KW WD 40
- Pneum. 2-point adjustment radius/chamfer
- Profile scraper with quick-change heads and special keypad
- Pneumatic adjustment of the scraper blade
- Glue joint scraper blade

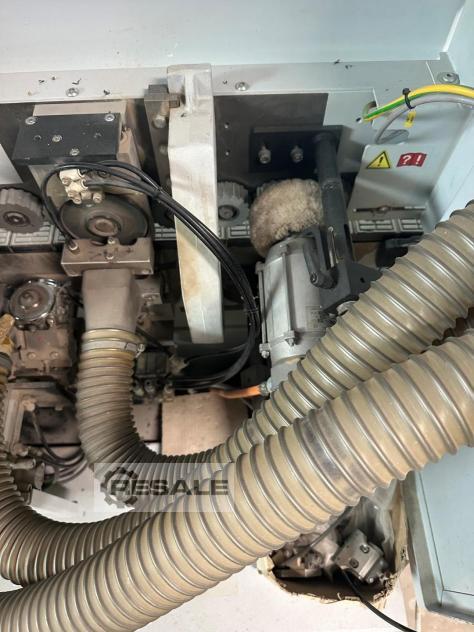

- Buffing unit

Technical data:
- Workpiece width min:
- At workpiece thickness 8-22mm ¦ 70 mm
- For workpiece thickness 23-40mm ¦ 120 mm
- At workpiece thickness 41-60mm ¦ 150 mm
Depending on the workpiece length
- Workpiece protrusion ¦ 38 mm
- Workpiece thickness ¦ 8 - 60 mm
- Edge height max.= workpiece height¦ + 6 mm
- Edge material roll ¦ 0.4 - 3 mm
- Edge cross-section max.
- For PVC ¦ 135 mm²
- For veneer ¦ 100 mm²
- Roll diameter max. ¦ 830 mm
- Strip edge material ¦ 0.4 - 8 mm
- Edge cross-section max.
- For strips ¦ 360 mm²
- Feed rate ¦ 8 - 14 m/min
- Feed max. with shape milling machine ¦ 11 m/min
- Working height ¦ 950 mm
- Pneumatic connection ¦ min. 6 bar
- Overall length ¦ 4,770 mm

Technical data and equipment subject to actual equipment
