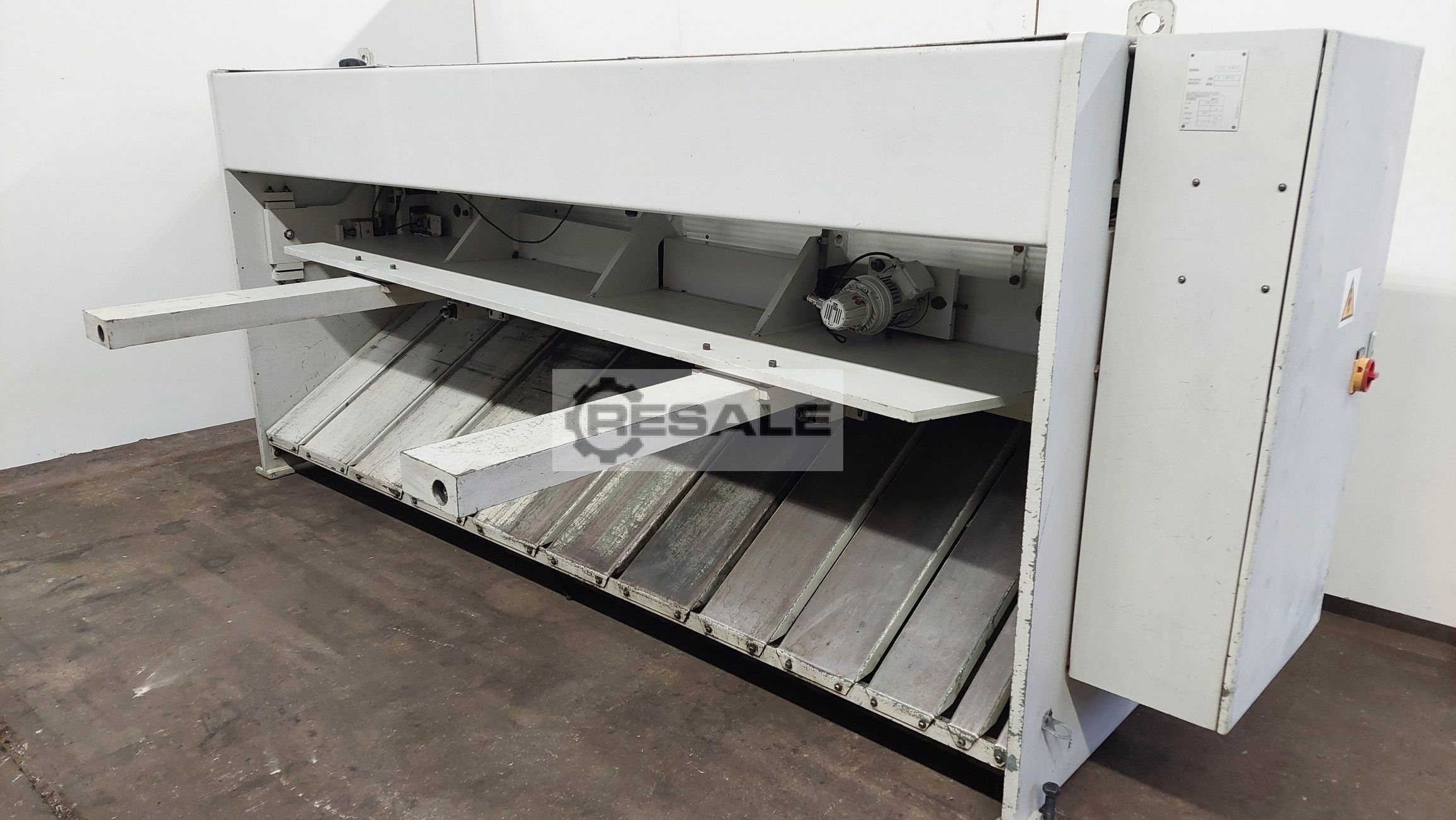

Guillotine Shears BEYELER V.E Shear 6,5 x 3070

Offer 25340

Technical data:

- Cutting length 3070 mm
- Cutting thickness 6.5 mm
- Cutting angle controlled 0.5 - 3 °
- Number of sheet hold-downs 18 pcs
- Stroke rate 10 - 23 min
- Mot. Controlled backgauge up to 750 mm
- Front angle stop + support arms
- Pneumatically supported sheet metal hold-up
- Autom. Cutting angle adjustment according to sheet thickness
- Cutting length limitation
- Autom. Positioning of the backgauge
- Autom. Backgauge retraction
- Drive 400 V / 15 kW
- Pneumatic connection 6 bar
- E. footswitch
- Space requirement approx. W 3850 x H 1750 x D 1800 mm
- Weight approx. 5500 kg

seller offer No. resale Lg.-Nr. 25340
