Bevel Edge Welding Machines used for sale (4)

offer 22679 Specifications: - sheet thickness 50 mm - min. straight edge 3 mm - Bevel angle adjustable 25 - 55 ° - Working speed 1.5 - 3.1 m/min - Crane suspension bracket - Drive 400 V / 4 kW - Space requirement approx. W 1400 x D 1200 x H 1950 mm - Weight approx. 1500 kg

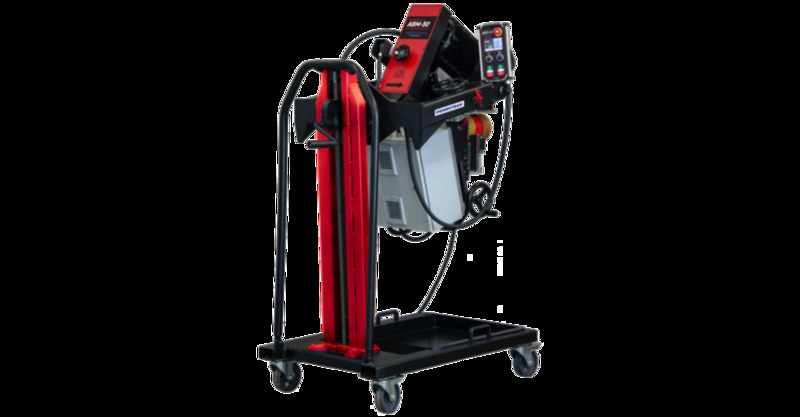

: neu : ca. 6-8 Wochen ab Auftrag : Polen : 16980 €: 326.02 €: 1 : 66 mm: 60 °: 300-800 U/min: 0 - 1,2 mm/min: 6 mm: 6.5 kW: 1179 mm: 853 mm: 1524 mm: 320 kgportable auto-feed bevelling machinereal time measurement and on-screen displaydouble-sided bevellingvariable spindle speedmilling head including 8 replaceable insertsremote control panel with LCD display max. bevel width: 66 mm at 15°52 mm at 30°50 mm at 45°51 mm at 60°The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

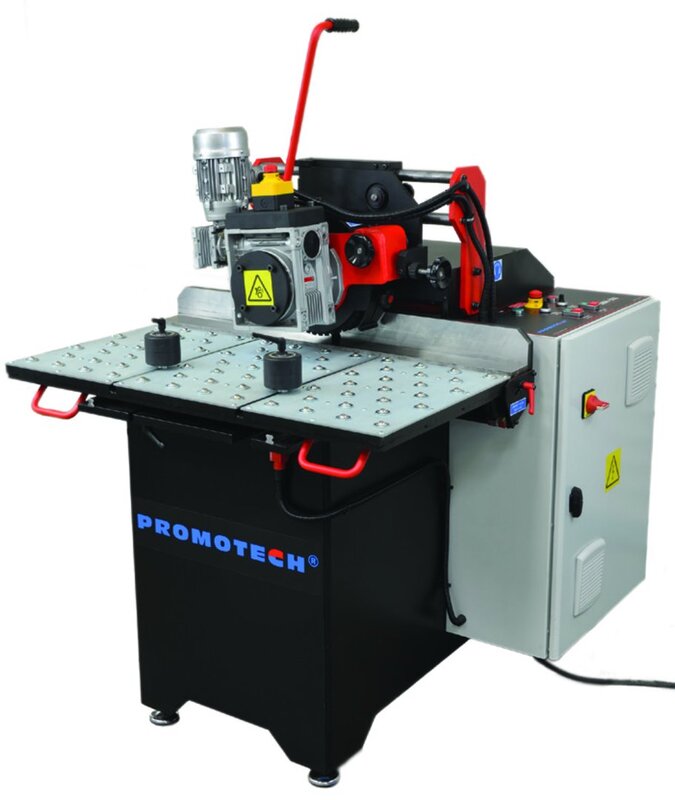

: neu : ca. 6-8 Wochen ab Auftrag : Polen : 26880 €: 513.41 €: 1 : 1 : 30 mm: 60 °: 500-2920 U/min: 50 - 150 m/min: 3 mm/min: 100 mm: 7.5 kW: 1216 mm: 1275 mm: 850 kgcontinuous adjustment of spindle speed and feed rate make it suitable for different types of steel and aluminumhigh speed rotary milling head equipped with 10 insertscutting inserts for various materials3D contact wheel control for proper workpiece alignmentergonomic ball roller benchswarf drawerBASIC SET:SBM-500 stationary bevelling machineset of toolsuser manual in ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 4 Wochen ab Auftragse : Polen : 1595 €: 1 : 1 : 21 mm: 60 °: 2740-3290 U/min: 2.2 kW: 21 kgportable heavy-duty machine designed for bevelling steel plates and -pipesguide rolls for easy operationautomatic overload protectiontwo milling heads with 10 square cutting insertsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
