Band Saws BERG-SCHMID GBS 218

cutting diameter: 220 mm
saw band length: 2455 x 27 x 0,9 mm
cutting width: 230 mm
cutting speed: 35-74 m/min m/min
total power requirement: 1,2 kW
weight of the machine ca.: 250 t
dimensions of the machine ca.: 1,6 x 0,9 x 1,8 m

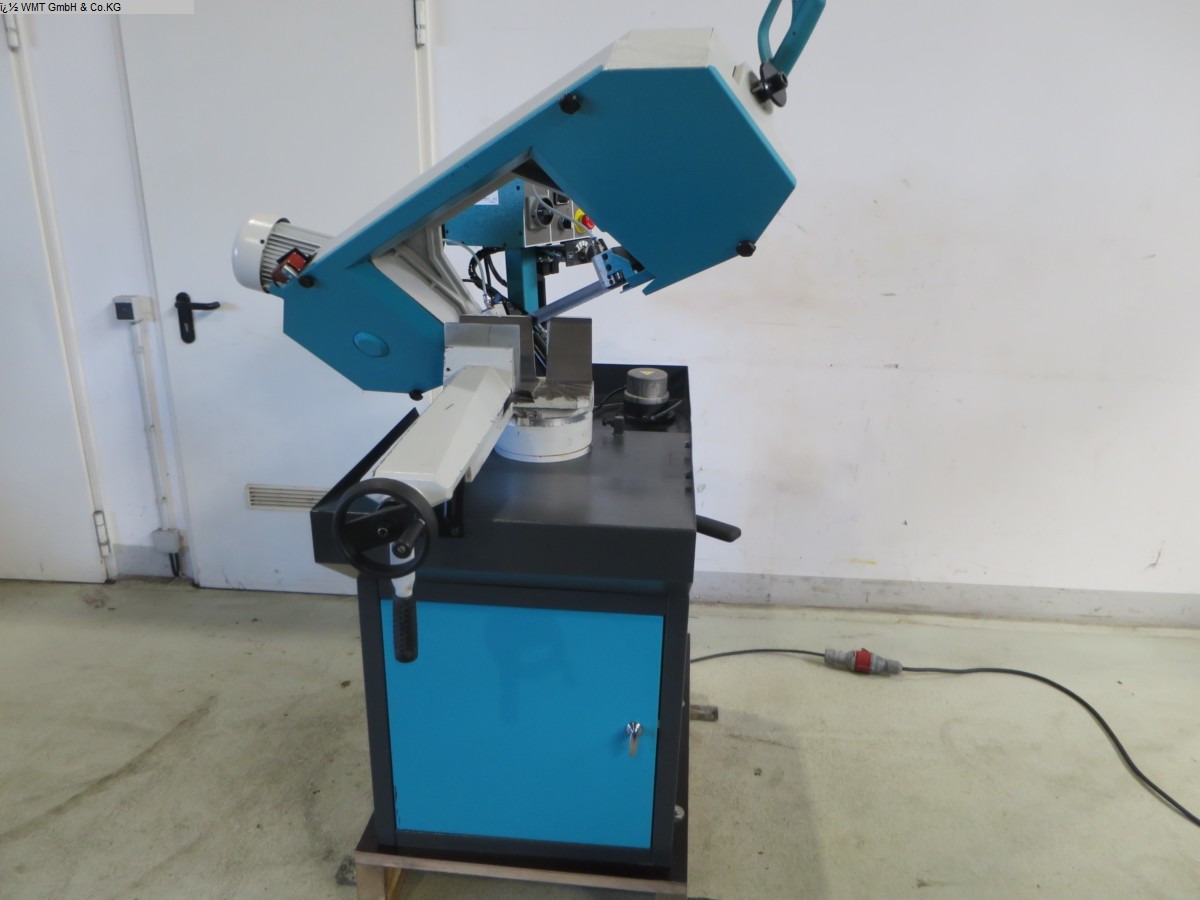

The GBS 218 Eco AutoCut is a precision miter band saw designed for use in workshops and light industrial settings. It is ideally suited for cutting steel, stainless steel, and aluminum profiles, combining a powerful range of features with user-friendly operation.

Thanks to the integrated AutoCut system, the machine offers three selectable operating modes: automatic saw frame lowering with adjustable feed rate, rapid approach to the workpiece, and manual operation with a braking cylinder function. This versatility makes it ideal for a wide variety of sawing requirements.

Key features:

- Miter cuts up to 60° to the left
- Two-stage selectable cutting speed: 35 + 70 m/min
- Vise with quick-clamping mechanism
- Carbide saw blade guides
- Automatic electric coolant system
- Optional: Minimal quantity lubrication for improved cooling and lubrication



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1108-66344
