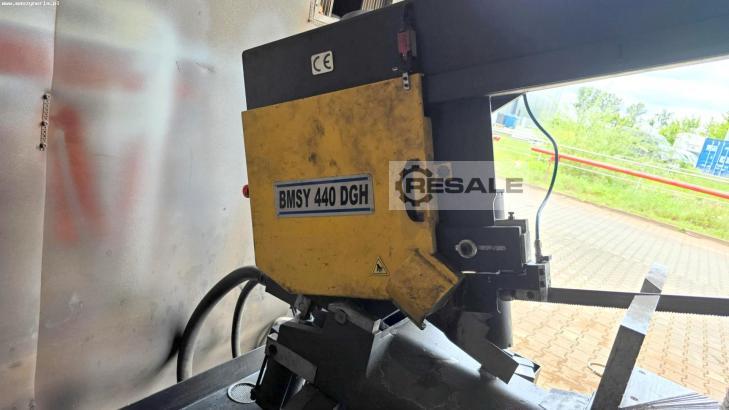

Band Saws BEKA-MAK BMSY 440 DGH

BEKA-MAK BMSY 440 DGH metal band saw was built in 2020 in Turkey by BEKA-MAK MAKİNA SAN. VE TİC. A.Ş. The machine is designed for the precise cutting of workpieces with circular, rectangular and square cross-sections at angles in the range from +60° to -60°. High machining accuracy, combined with a number of well-proven technical solutions, makes the machine ideal for use in professional industrial plants and workshops.

The BEKA-MAK BMSY 440 DGH is characterised by a stable design based on a robust, rotating arm. Cutting is performed using a 5200 mm saw blade, whose precise guidance is ensured by guides with rollers and carbide inserts. The movable coolant tank cooperates with an electric pump, supplying coolant to both band guide units. A hydraulic vice ensures the workpiece is held securely in place during cutting. The BMSY 440 DGH semi-automatic band saw is offered with a comprehensive range of equipment, including, among others, a hydromechanical band tensioning system with a manometer and a hydraulic angle-setting brake with a digital position readout. The total weight of the machine is 1570 kg.

Technical specifications of the BEKA-MAK BMSY 440 DGH band saw machine
- cutting capacity at an angle of +60°
circular cross-section: 320 mm
rectangular cross-section: 250×440 mm
square cross-section: 250 mm
- cutting capacity at an angle of +45°
circular cross-section: 410 mm
rectangular cross-section: 410×440 mm
square cross-section: 410 mm
- cutting capacity at an angle of +30°
circular cross-section: 440 mm
rectangular cross-section: 500×440 mm
square cross-section: 440 mm
- cutting capacity at an angle of 0°
circular cross-section: 440 mm
rectangular cross-section: 610×440 mm
square cross-section: 440 mm
- cutting capacity at an angle of -30°
circular cross-section: 440 mm
rectangular cross-section: 500×440 mm
square cross-section: 440 mm
- cutting capacity at an angle of -45°
circular cross-section: 410 mm
rectangular cross-section: 410×440 mm
square cross-section: 410 mm
- cutting capacity at an angle of -60°
circular cross-section: 320 mm
rectangular cross-section: 285×440 mm
square cross-section: 285 mm
- cutting speed: 20-100 m/min
- cutting height: 870 mm
- saw blade dimensions: 5200 x 34 x 1,1 mm
- main motor power: 3 kW
- hydraulic motor power: 0,55 kW
- cooling pump motor power: 0,12 kW
- chip conveyor motor power: 0,25 kW
- installed power: 3,92 kW
- control voltage: 24 V
- power supply: 400 V; 50 Hz
- dimensions (L x W x H): 3050 x 1850 x 1640 mm
- weight of the BEKA-MAK BMSY machine: 1570 kg

Equipment of the BEKA-MAK band saw
- mobile control panel
- hydraulic vice
- hydraulic angle-setting brake with digital position readout
- hydromechanical band tensioning system with a manometer
- laser pointer
- brush for chip removal
- inverter
- drive gearbox
- hydraulic cylinder

(The technical parameters given may differ slightly from reality. A verification with the actual capabilities of the offered machine is required.)
