Hydraulic Shear ATLANTIC ATS 3012

sheet width: 3050 mm
plate thickness: 12.0 mm ST
plate thickness: 8.0 mm VA
no. of strokes: 7 - 14 Hub/min
down holder: 18 Stück
cutting angle: 0.5 - 3.0 °
work height max.: 930 mm
back stop - adjustable: 1000 mm
Control: SP 8
total power requirement: 22.5 kW
weight: 8500 kg
range L-W-H: 4180 x 2030 x 2210 mm
from a maintenance workshop
good / well-maintained condition ()

Equipment:

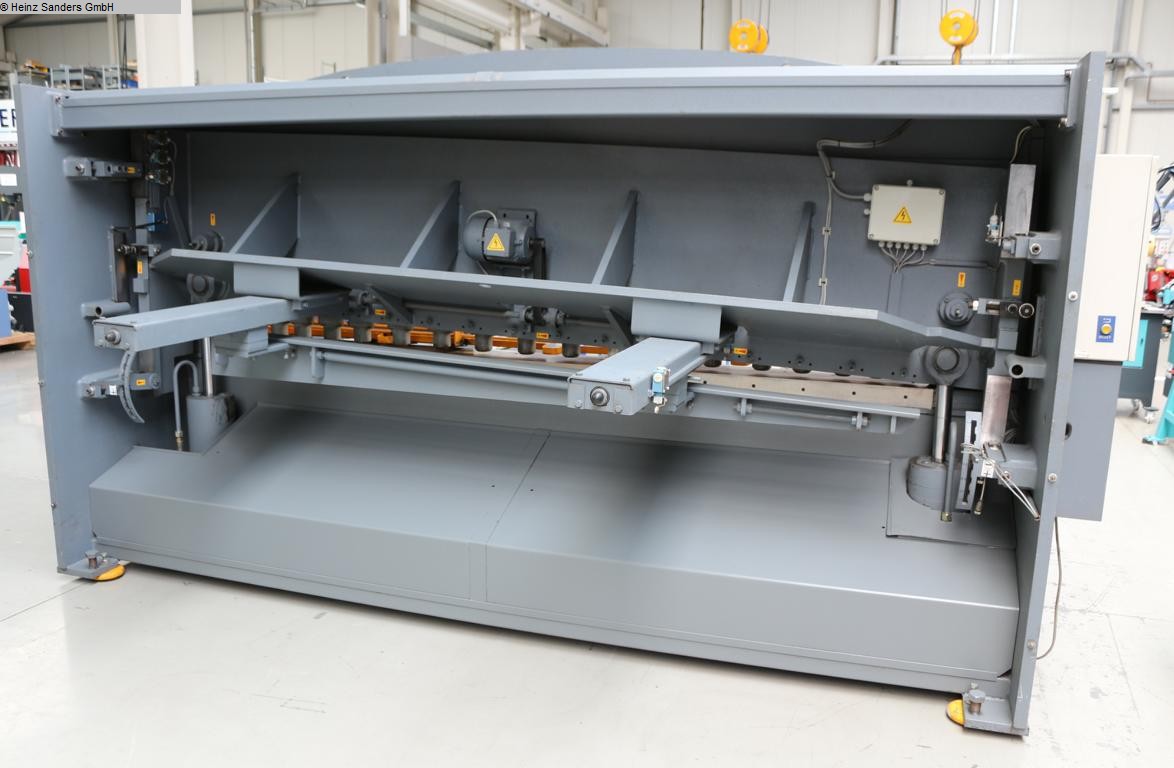

- electro-hydraulic guillotine shear with guided blade beam

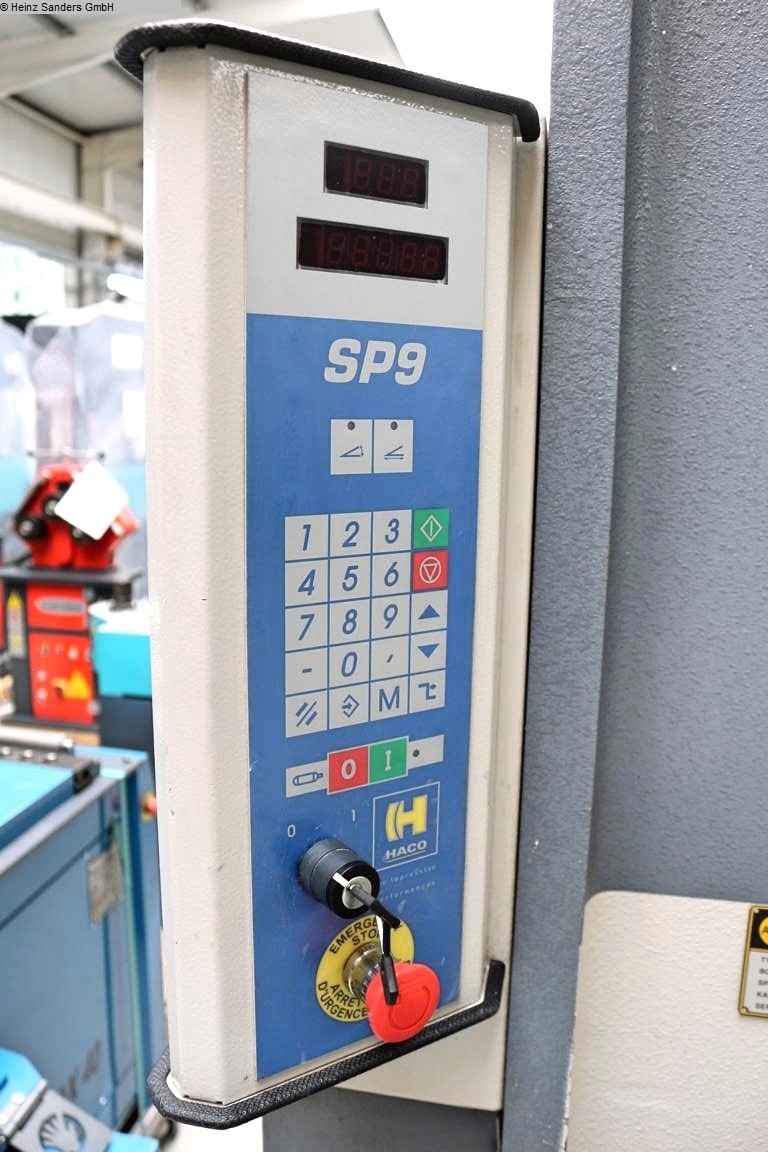

- includes HACO NC control system SP 9
in like-new condition
backgauge pre-selection positioning
digital display of actual value
electro-hydraulic cutting angle adjustment with digital display
emergency stop switch
- NC motorized backgauge on recirculating ball screws
- manual blade gap adjustment, adjustable from the rear

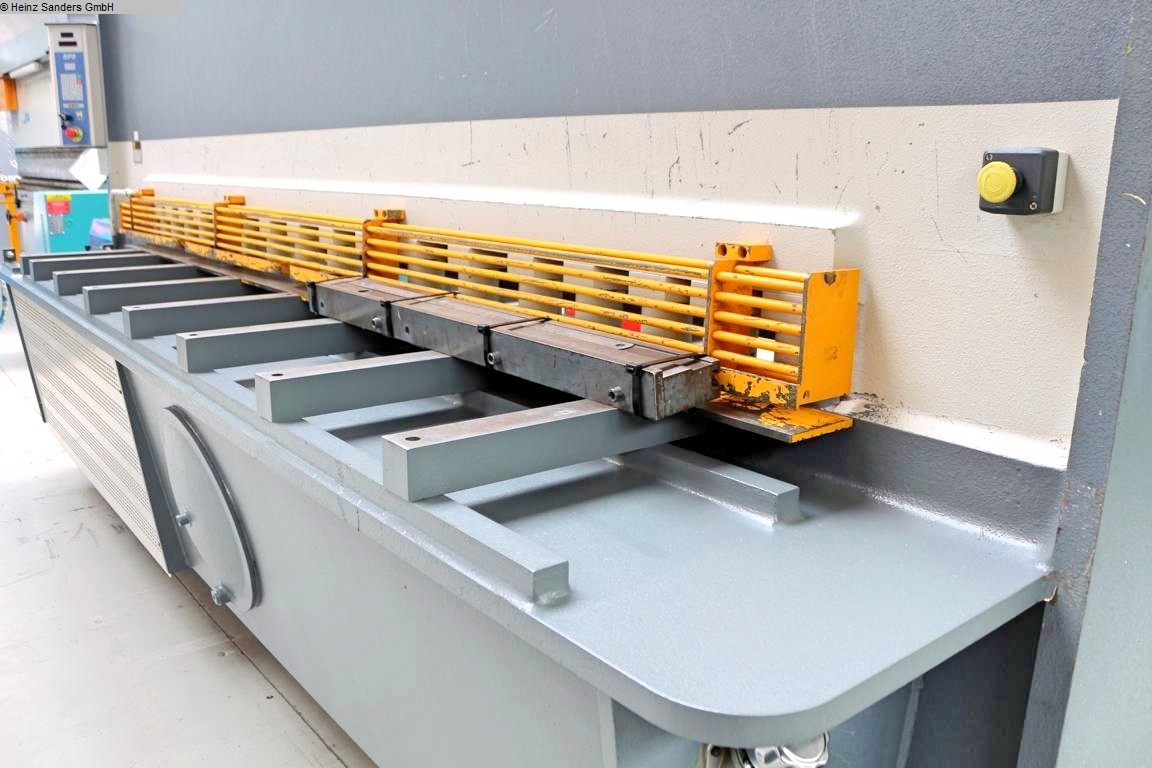

- front finger guard
- 1x side gauge ... 1,000 mm
- rear sheet metal chute
- 1x movable foot pedal
- operating manual
