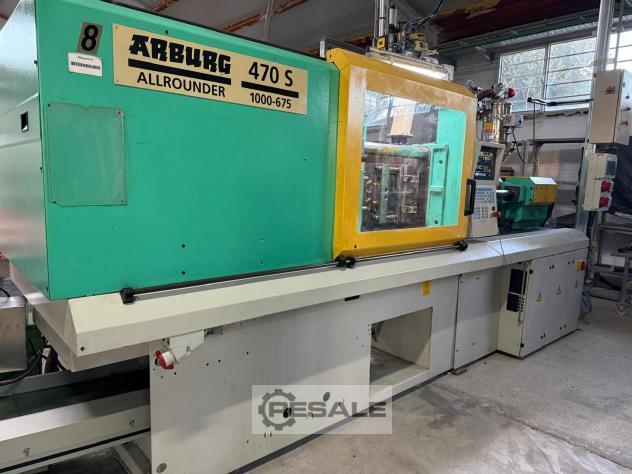

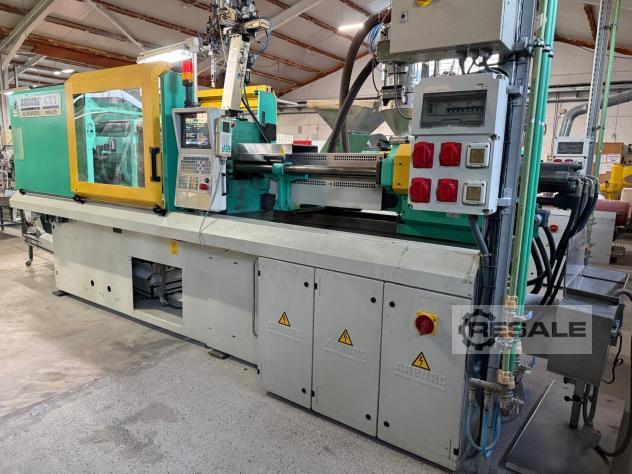

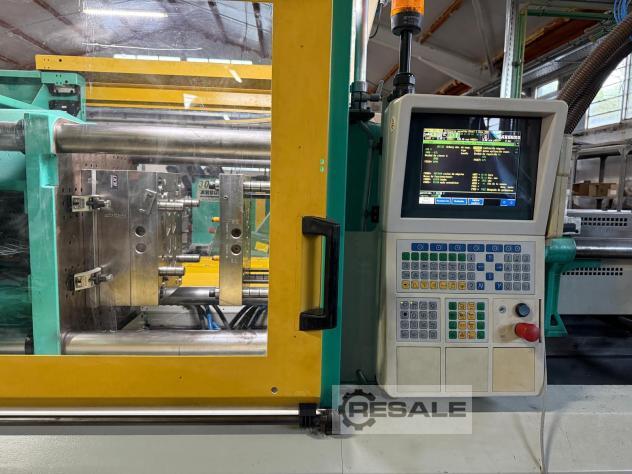

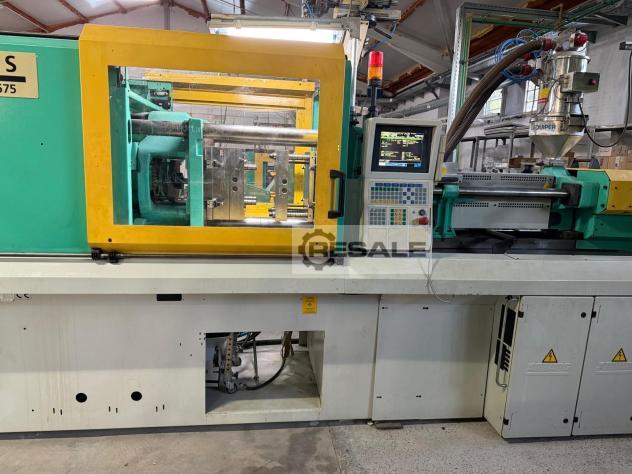

Injection molding machines ARBURG ALLROUNDER SELECTA 470 S 1000

Clamping force: 1000 kN ARBURG ALLROUNDER SELECTA 470 S 1000 – 675 (Year 2001)
Serial number: 187132 – Machine no. 8
Clamping force: 1000 kN
EUROMAP: 1000-675.
Operating hours in automatic mode: 32,312 h.
Machine cycles: 3,192,800.
Hydraulic pump operating hours: 42,753 h.
Screw diameter: 55 mm.
Distance between columns: 470 x 470 mm.
Platens: 637 x 637 mm.
Maximum mold height: 750 mm.
Ejector force: 40 kN.
Ejector stroke: 175 mm.
Injection volume: 675 cm³.
Operating voltage: 400 V – 3 – 50 Hz.
Heating: 14.9 kW. P
ump motor: 1 x 22.00 kW.
Total installed power: 50 kW.
Dimensions: 4180 x 1645 x 2140 mm (height).
Weight: 5400 kg.

seller offer No. resale GEST-007A
