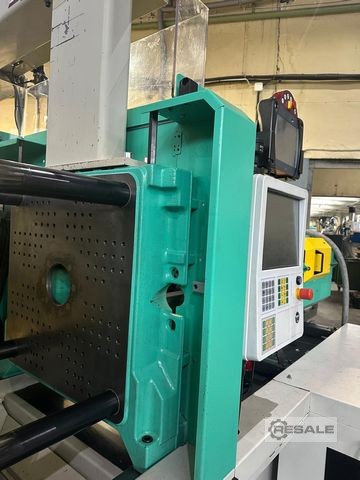

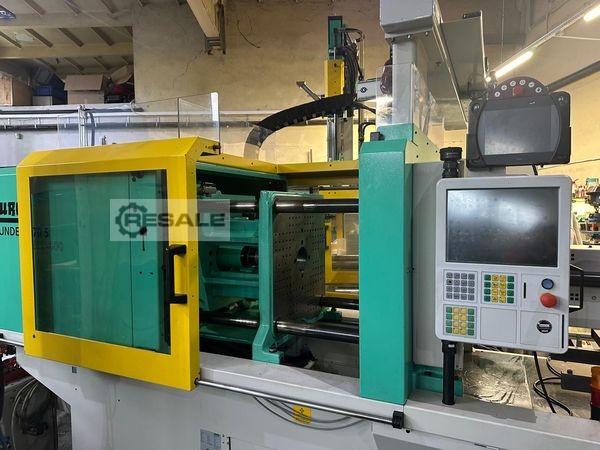

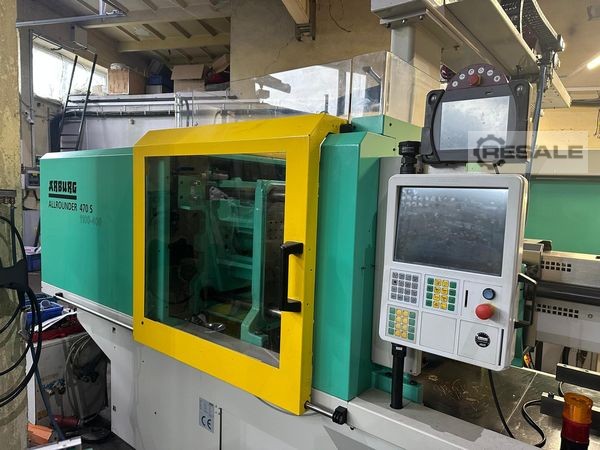

Injection molding machines ARBURG 470S 1100-400

Clamping force: 1100 kN Arburg 470S 1100-400 with the Wittmann W711 robot
Year of Make: 2008

Injection unit:
Screw diameter: 40 mm
Injection weight: 184 g
Spray pressure: 2000 bar
Dosing volume: 201 cc

Clamping unit:
Clamping force: 110 t
Spar spacing: 470x470 mm
Size of the clamping plates: 637x637 mm
Ejector: hydraulic
Clamping unit: hydraulic

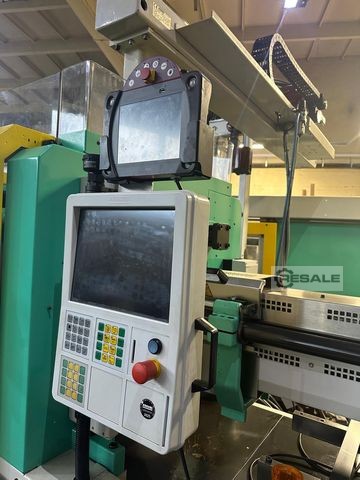

Control: SELOGICA - Touchscreen

Additional equipment:
Euromap 67
Robot interface
Air Valve x 2
Hydraulic core pull x 1
Control with hot runners x 8
Hardened injection unit - Bimetal
Proportional valve on the injection unit – precise injection
Conveyor belt integrated with the machine control system
Built-in sorting flap
It is possible to change the screw diameter
Robot Wittmann W711
Year of Make: 2008
4-axis robot: 3 axes are driven by servo motors (electric): X, Y, Z; Axis C - pneumatic
Traversing in axes: X-420, Y-1200, Z-2000
Touch control panel
Robot with adapter
Purchase of the robot at an additional cost

Dimensions:
Weight: 5200 kg
Length/Width/Height: 4.56x1.52x2.13 m

All offered machines are started by our service technicians before they are sold.
It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź.

Price: On request
seller offer No. resale 169625125
