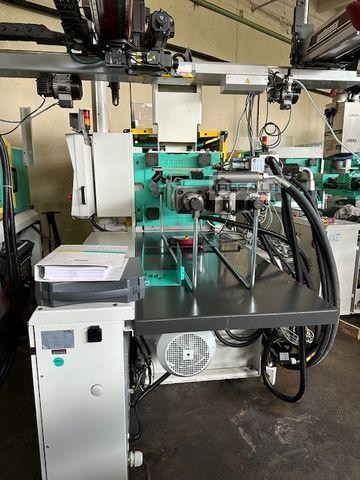

Injection molding machines ARBURG 420C 800-250

Clamping force: 800 kN Arburg 420C 800-250 with the Wittmann W721 robot
Year of Make: 2004

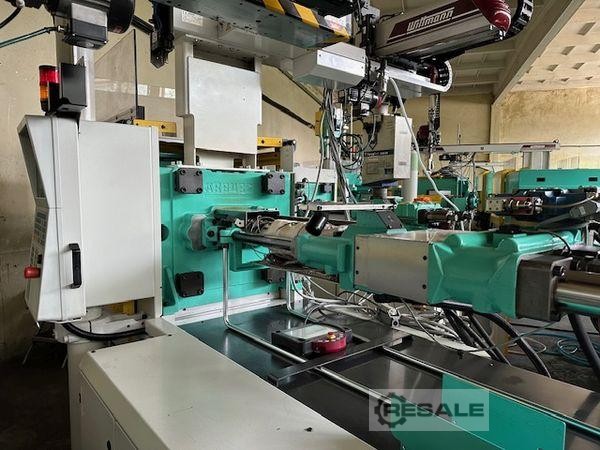

Injection unit:
Screw diameter: 30 mm
Injection weight: 89 g
Spray pressure: 2470 bar
Dosing volume: 106 ccm

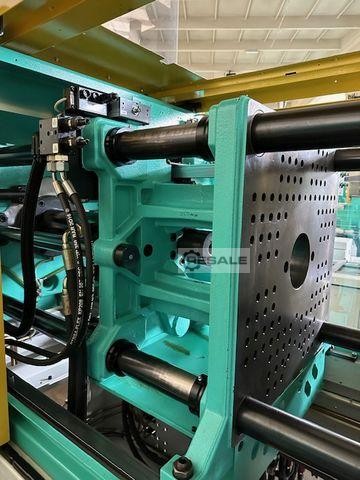

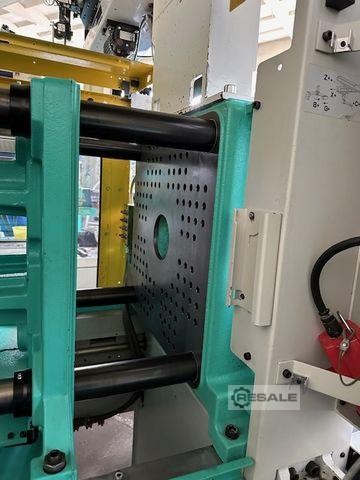

Clamping unit:
Clamping force: 80 t
Spar spacing: 420x420 mm
Size of the clamping plates: 570x570 mm
Ejector: hydraulic
Clamping unit: hydraulic

Control: SELOGICA

Additional equipment:
Euromap 67
Robot interface
Air Valve x 2
Hydraulic core pull x 2
Control with hot runners
Hardened injection unit - Bimetal
Proportional valve on the injection unit – precise injection
Built-in system for printing quality control from the Kistler brand sensor - measurement of tool pressure
Original Tool Crane

Robot Wittmann W721
Year of Make: 2007
4-axis robot: 3 axes are driven by servo motors (electric); Axis C
Travel in axes: X-550, Y-1200, Z-1250
Touch control panel
Robot with adapter
Purchase of the robot at an additional cost

Dimensions:
Weight: 3180 kg
Length/Width/Height: 4.30x1.64x2.08 m

Drive:
Pumps/motor: 15 kW
Heating capacity: 6.5 kW
Total power: 21.5 kW

All offered machines are started by our service technicians before they are sold.
It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź.

Price: On request
seller offer No. resale 169625119
