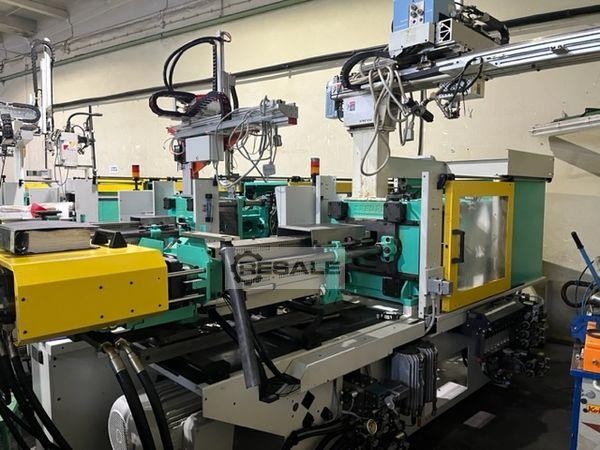

Injection molding machines ARBURG 420C 1300-675

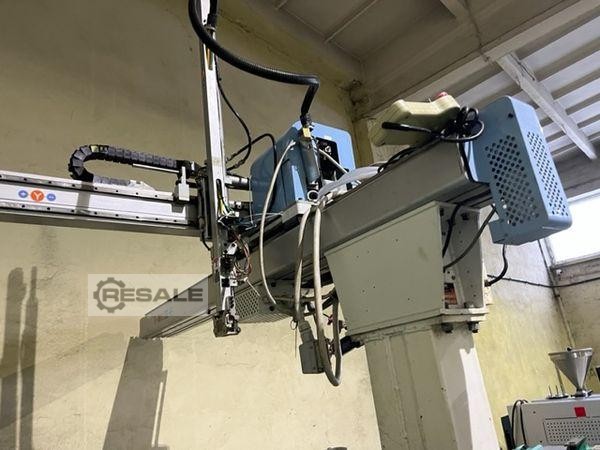

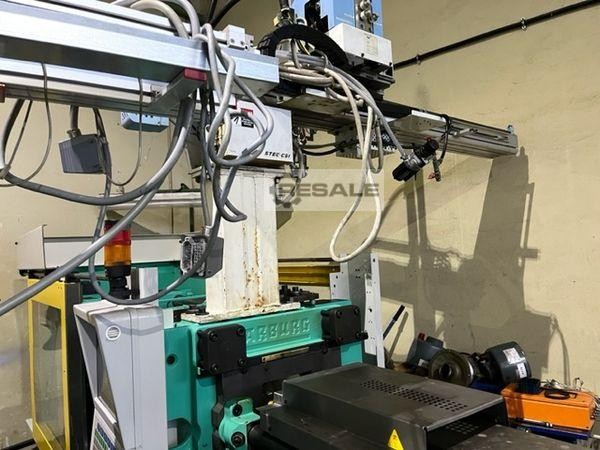

Clamping force: 1300 kN Arburg 420C 1300-675 with the Star Sprue Picker
Year of Make: 2002

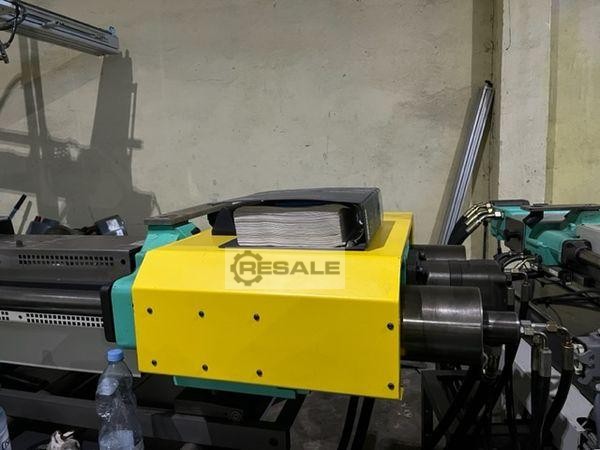

Injection unit:
Screw diameter: 50 mm
Injection weight: 297 g
Spray pressure: 2080 bar
Dosing volume: 353 ccm

Clamping unit:
Clamping force: 130 t
Spar spacing: 420x420 mm
Size of the clamping plates: 605x605 mm
Ejector: hydraulic
Clamping unit: hydraulic

Control: SELOGICA

Additional equipment:
Euromap 12
Robot interface
Air Valve x 2
Hydraulic core pull x 2
Hardened injection unit - Bimetal
Type of injection unit: Vario - This offers the possibility of using the injection unit, e.g. for side spraying
Covers from the operator's side open automatically

Dimensions:
Weight: 4330 kg
Length/Width/Height: 4.80x1.64x2.08 m

Drive:
Pumps/motor: 30 kW
Heating capacity: 14.9 kW
Total power: 44.9 kW

All offered machines are started by our service technicians before they are sold.
It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź.

Price: On request
seller offer No. resale 169625127
