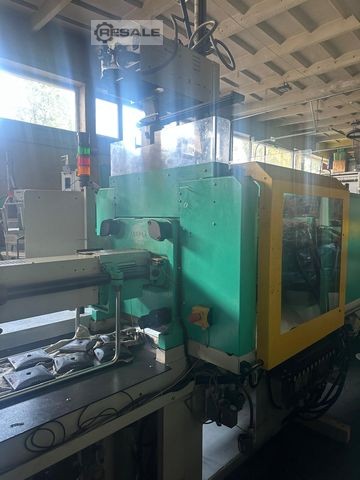

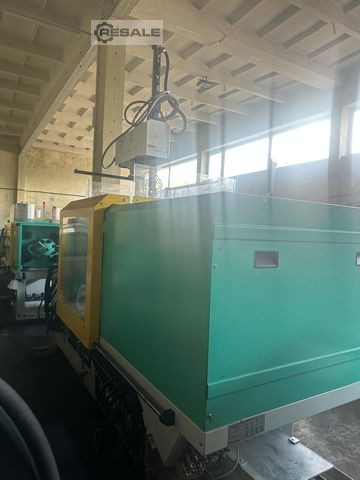

Injection molding machines ARBURG 370H 600-290

Clamping force: 600 kN Arburg 370H 600-290 with the Geiger MiniServo II sprue picker / hybrid machine
Year of manufacture: 08.2014

Injection unit:
Screw diameter: 30 mm
Injection weight: 97 g
Spray pressure: 2500 bar
Dosing volume: 106 ccm

Clamping unit:
Clamping force: 60 t
Tiebar spacing: 370x370 mm
Size of the clamping plates: 510x510 mm
Ejector: electric
Clamping unit: toggle lever

Control: SELOGICA - Touchscreen

Additional equipment:
Production line with the Arburg Multilift Select robot and conveyor belt
Electric machine: high-speed, energy-saving and very quiet
Operating hours: 32,839 h in automatic mode
Euromap 67
Euromap 12
Robot interface
Air Valve x 2
Hydraulic core pull x 1
Control with hot runners x 6
Hardened injection unit - Bimetal
Main motor of the machine - Servo motor driven by inverter - Energy saving
Proportional valve on the injection unit – precise injection
Central lubrication
Kistler Sensor - Tool Pressure Control
Machine with two cylinders / battery with compressed nitrogen (extra charge for fast work)
Built-in Arburg conveyor belt and sorting flap
Sprue Picker Geiger MiniServo II
Year of manufacture: 2018
Axes X and Y are driven by servo motors (electric)
Purchase of the sprue picker for an extra charge

Dimensions:
Weight: 3600 kg
Length/Width/Height: 4.00x1.45x2.04 m

All offered machines are started by our service technicians before they are sold.
It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź.

Price: On request
seller offer No. resale 169625109
