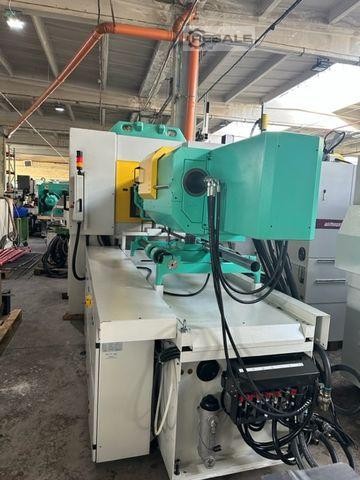

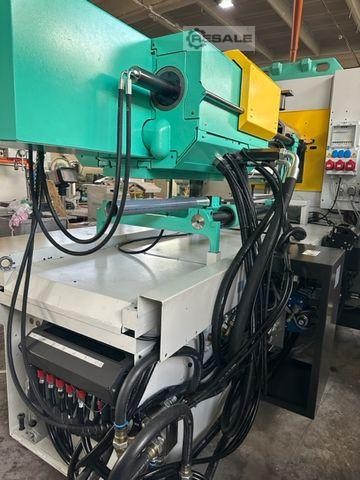

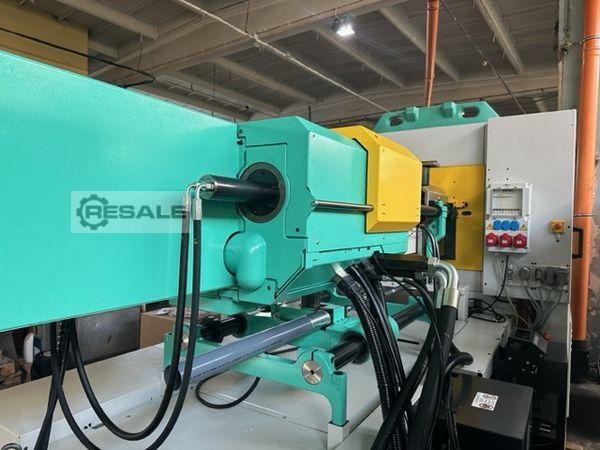

Injection molding machines ARBURG 1500T 3200-1300 e²

Clamping force: 3200 kN Arburg 1500T 3200-1300 e² / Hybrid machine with a turntable
Year of Make: 2011

Injection unit:
Screw diameter: 60 mm
Injection weight: 607 g
Spray pressure: 2000 bar
Dosing volume: 664 ccm

Clamping unit:
Clamping force: 320 t
Spar spacing: 0x0 mm
Size of the clamping plates: 1510 mm
Ejector: hydraulic
Clamping unit: hydraulic

Control: SELOGICA - Touchscreen

Additional equipment:
Hybrid machine: high-speed, energy-saving and very quiet
Operating hours: approx. 30,000 in automatic mode
Euromap 67
Robot interface
Control with air valve
Hydraulic core pull x 3
Control with hot runners x 13
Hardened injection unit - Bimetal
Main motor of the machine – servo motor driven by inverter
Very precise rotary table, driven by a servo motor, controlled by an inverter
Rotary table diameter: 1500 mm
Horizontal injection unit with automatic injection height adjustment
Self-closing nozzle
Primus-Sensor - Tool Pressure Control
There is the possibility of converting the injection unit to work vertically

Dimensions:
Weight: 16080 kg
Length/Width/Height: 4.91x2.12x4.62 m

All offered machines are started by our service technicians before they are sold.
It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź.

Price: On request
seller offer No. resale 169625154
