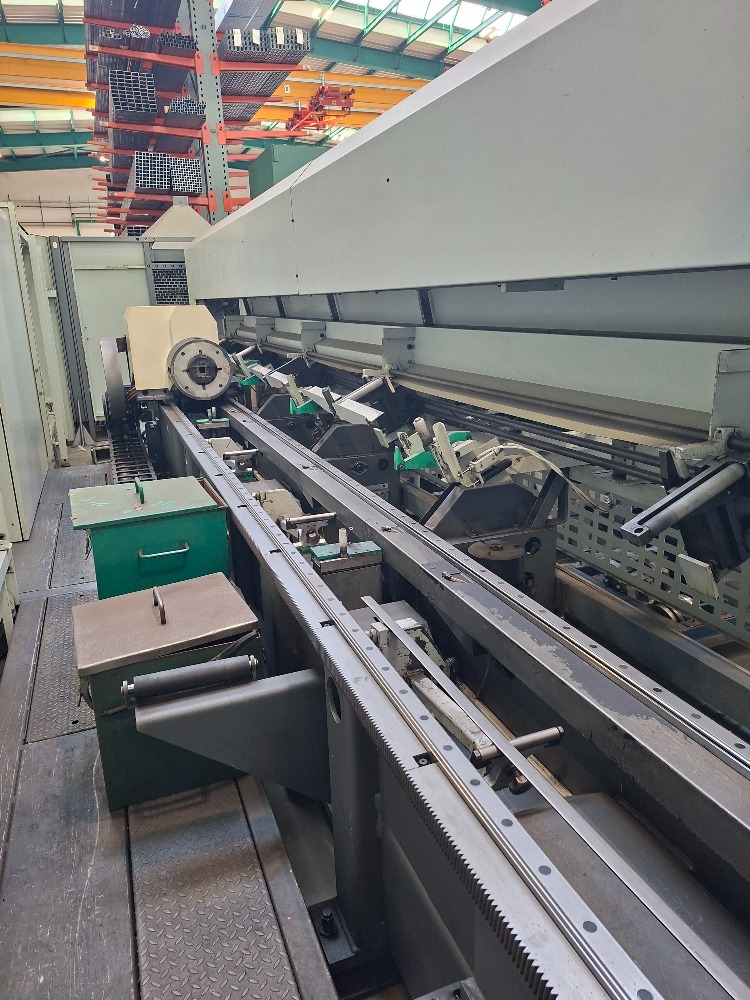

Laser Cutters ADIGE Lasertube LT722D

Manufacturer: Adige

Model: Lasertube LT722D

Technical Details:

- Laser Source: Rofin Sinar DC25
- Laser Power: 40 kVA apparent power
- Minimum Bar Length: 3200 mm
- Maximum Bar Length: 6500 mm
- Max Bar Weight (L=6500): 100 kg
- Max Bar Weight (L=8500): 130 kg
- Round Section Diameter: 12 to 140 mm
- Round Section Optional: 12 to 152.5 mm
- Square Section Side: 12 to 120 mm
- Max Circumscribed Circle: 170 mm
- Minimum Side Dimension: 10 mm
- Maximum Side Dimension: 140 mm
- Max Side Dimension Optional: 150 mm
- Max Load Saddle Capacity: 4000 kg
- Power Voltage: 400 V +/- 10%
- Frequency: 50 Hz
- Type of Power: Three phase without neutral
- Total Machine Power: 26 kVA
- Enclosure Protection: IP54
- Hydraulic Reservoir Capacity: 25 l
- Hydraulic Pressure: 70 bar
- Pneumatic Pressure: 6 bar
- Pneumatic Capacity: > 500 Nl/min
- Weight L=6500 version: 9000 daN
- Weight L=8500 version: 10000 daN
- Ambient Temperature: 5 to 40 degrees C
- Aspirator: Torit DPF4
- Certification: CE
