Reactors

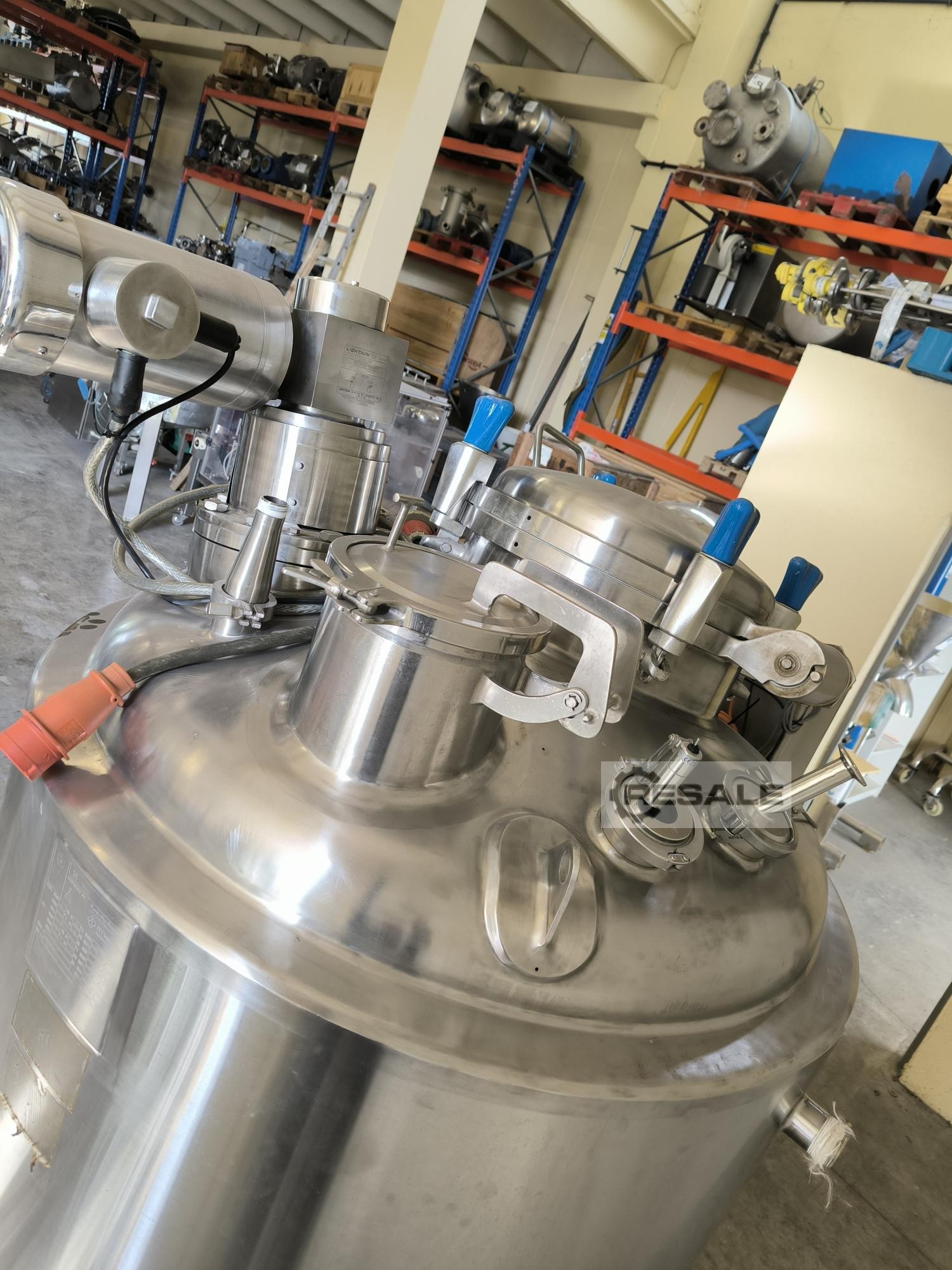

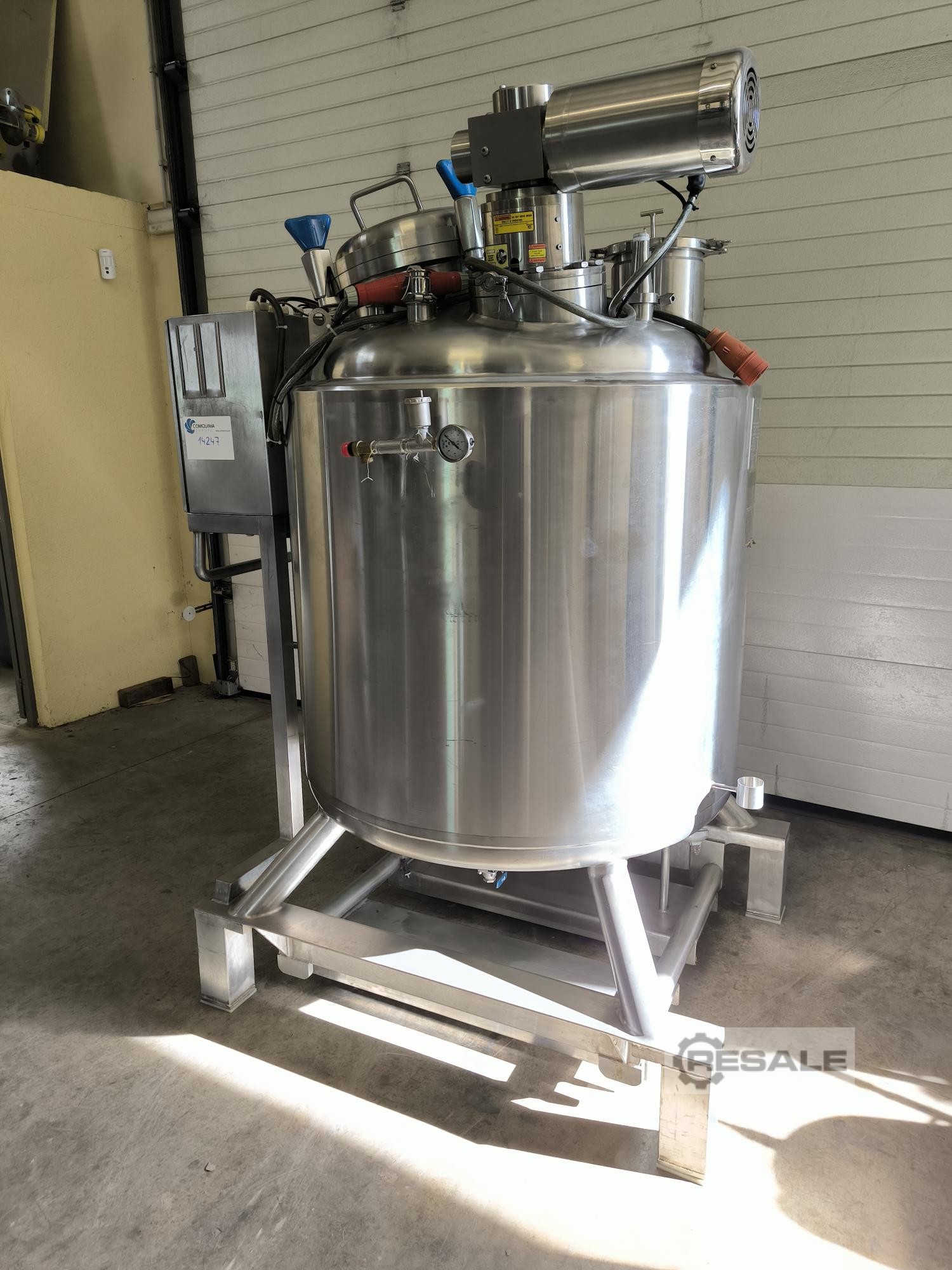

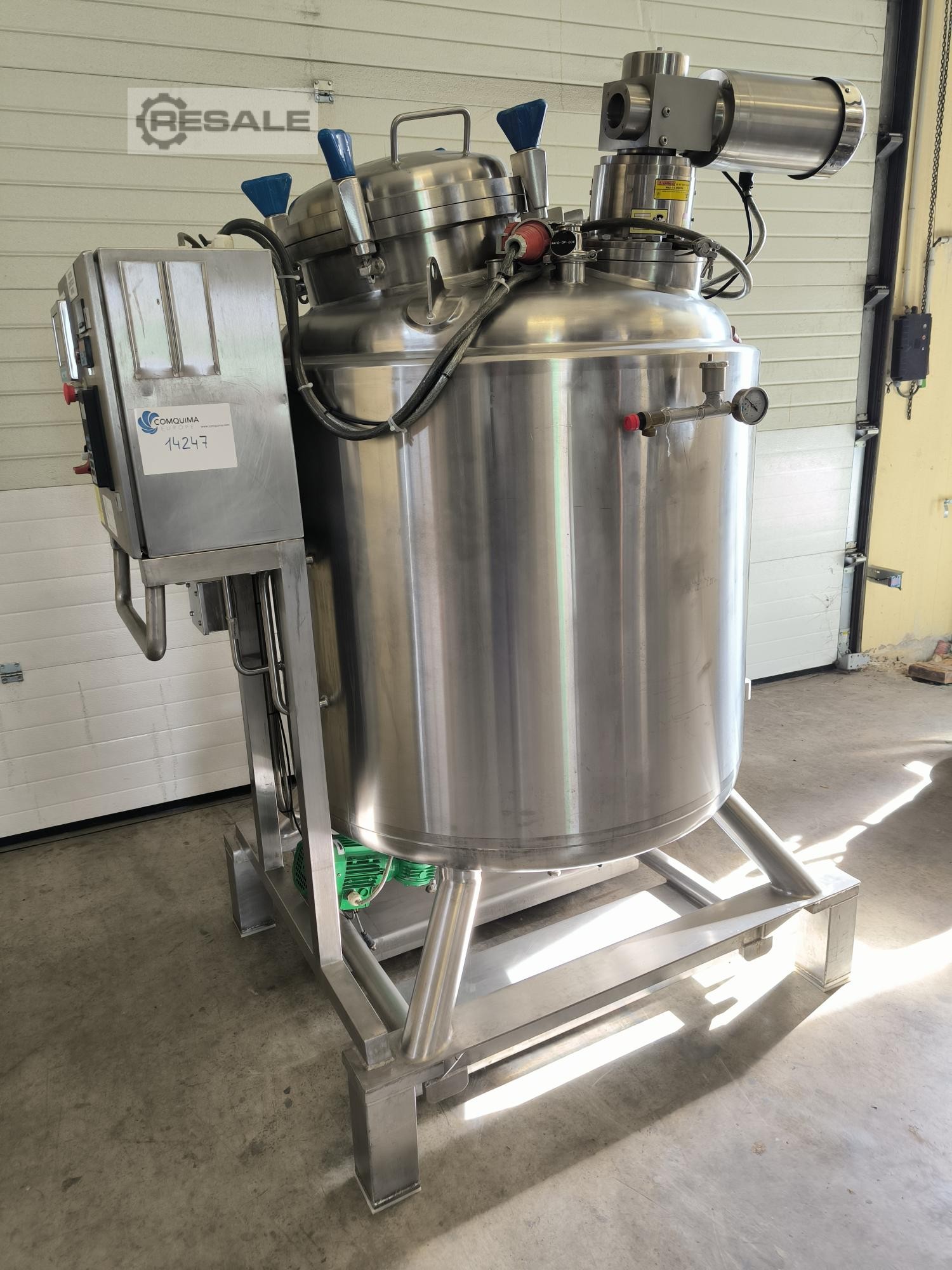

910-liter 316 stainless steel reactor with jacket made of 316L stainless steel, hermetic heat-insulation, control panel and agitation.

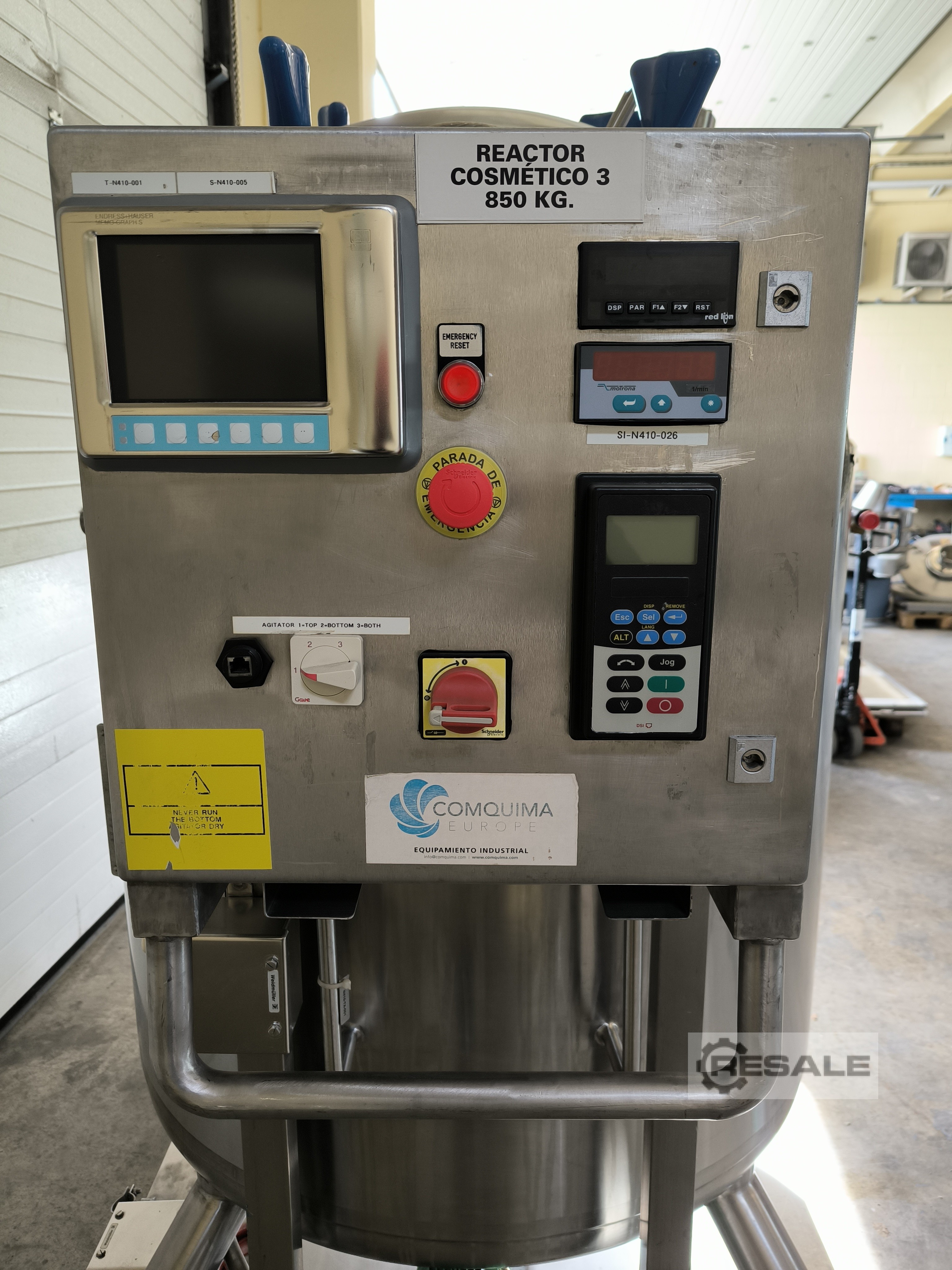

Dashboard Description:
Endress+Hauser HMI Display
"Emergency reset" pilot
Emergency mushroom
Display RPM
Product temperature display
3-position stirrers selector (1- upper agitation, 2- lower agitation, 3- both at the same time)

Off-center three-blade helix shake on the upper bottom. Manufactured by SPX, Lightnin SR5S200 model with a 0.37 kW motor.

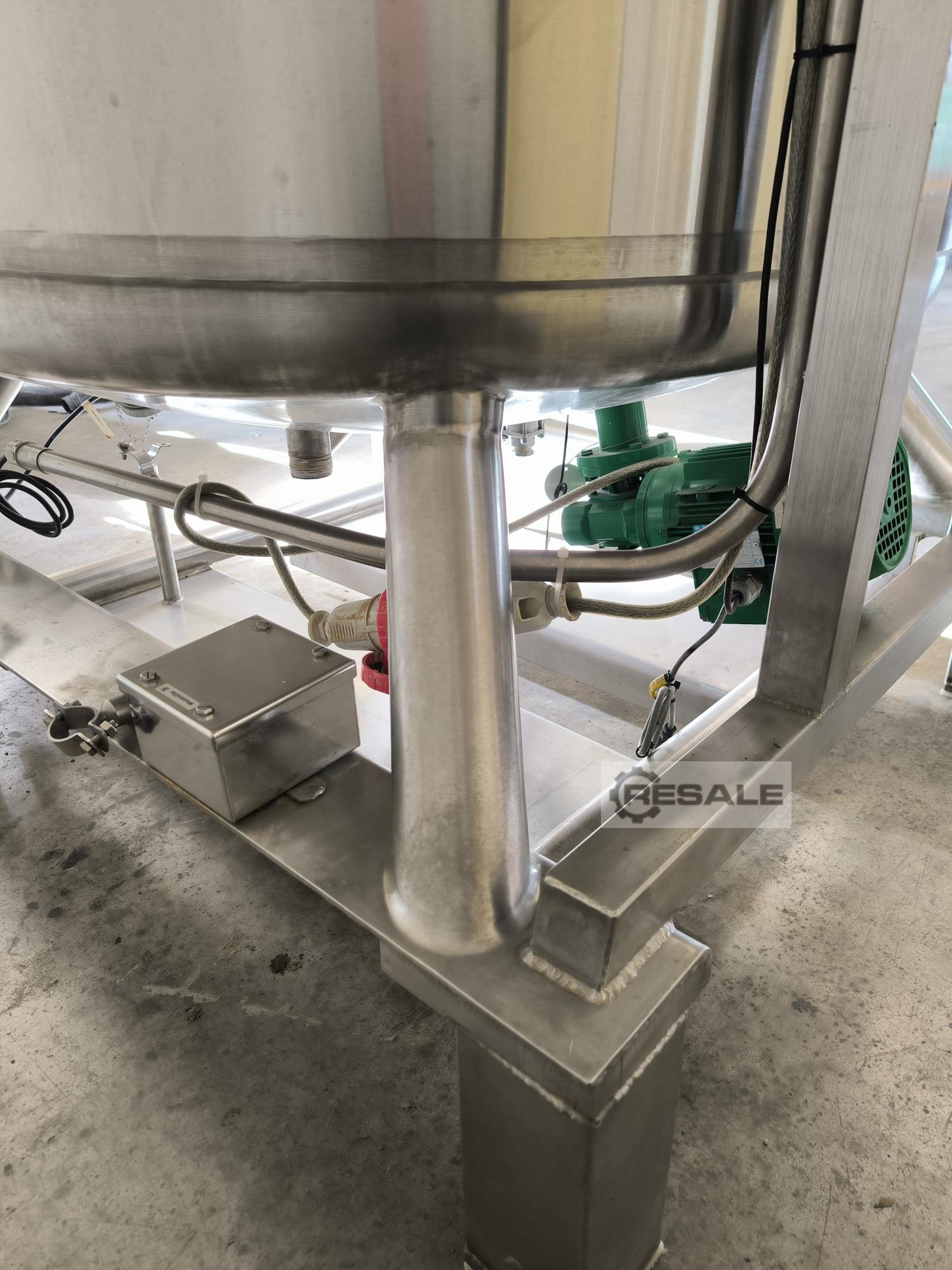

Magnetic stirring on the bottom with a 0.55 kW motor.
Volume
Total capacity
910 L
Material
Stainless Steel 316/316L
Equipment Setup
Agitator
Heat Burning
Transportation Information
Length
1600 mm
Width
1200 mm
Height
2100 mm
Weight
1000 Kg
Status
In your state
seller offer No. resale C14247
