ARBURG 570 used machines

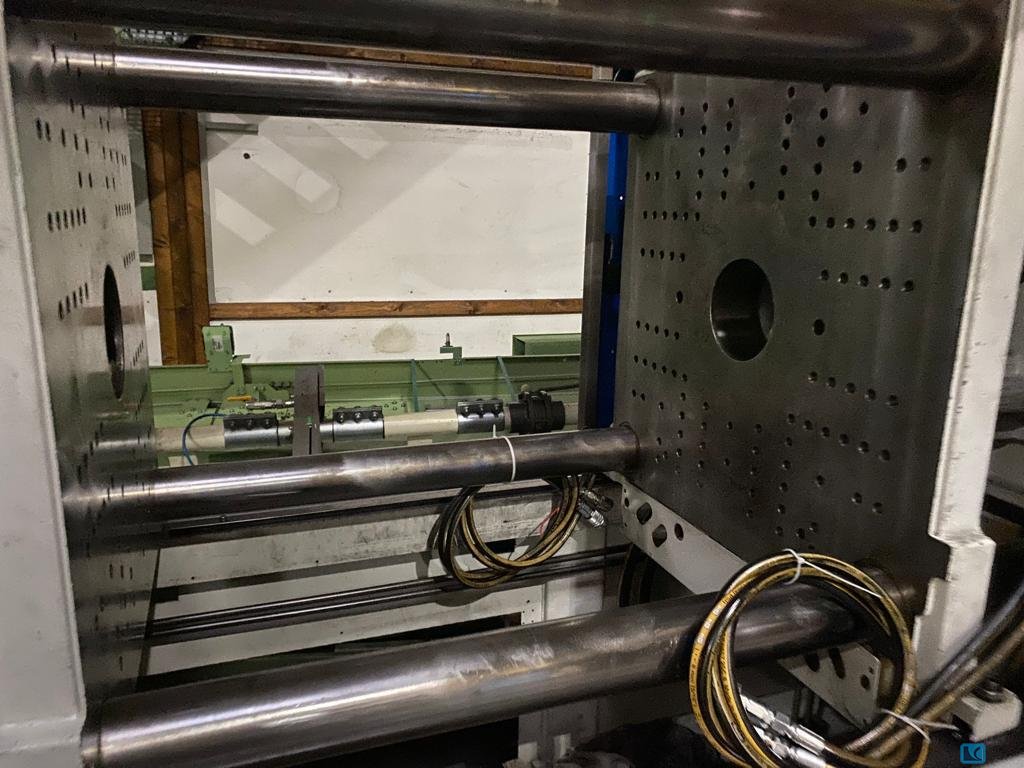

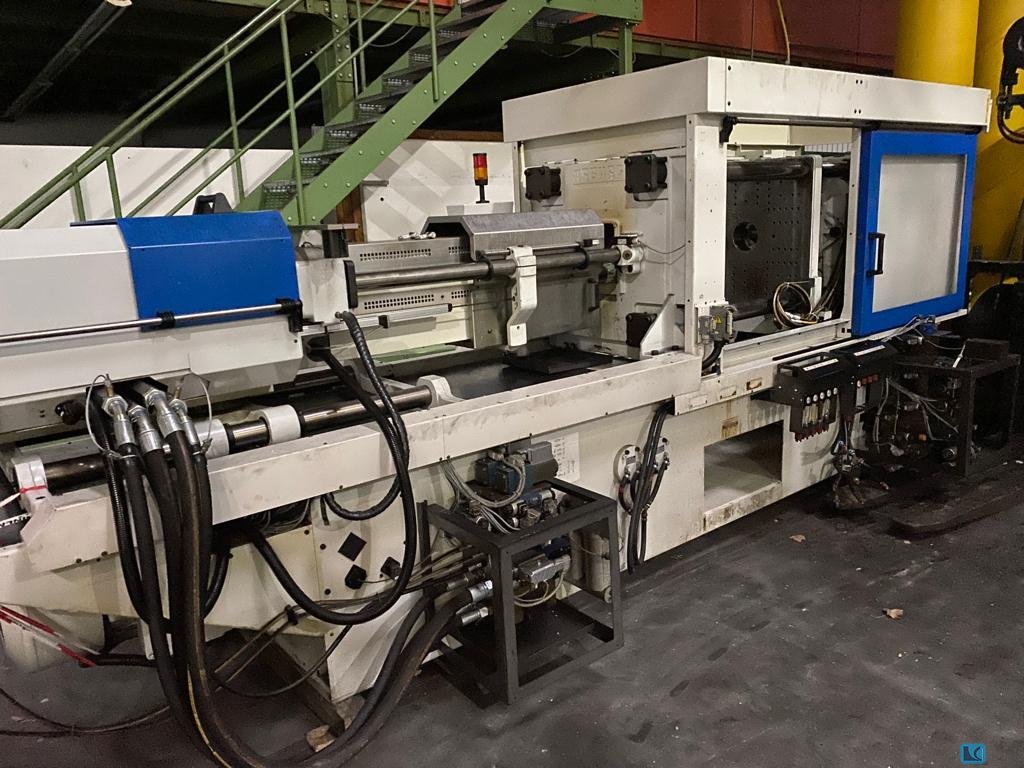

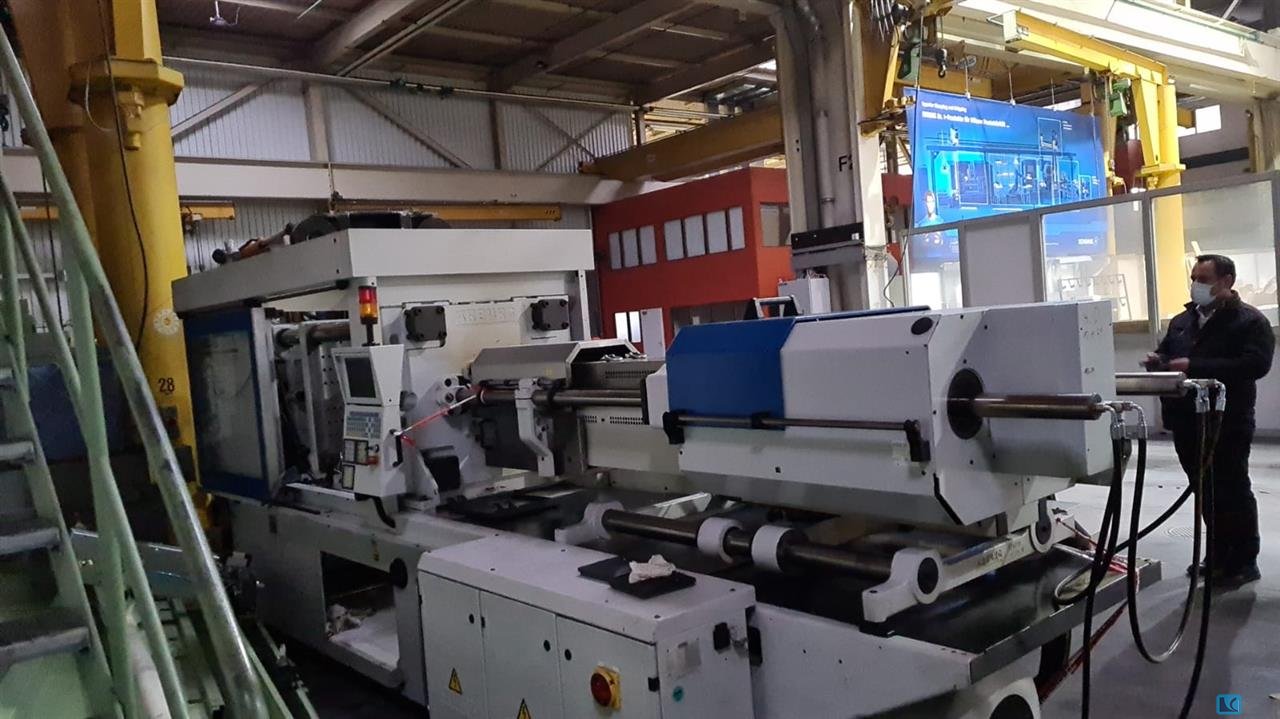

This Arburg 570 S 2200-800/290 was manufactured in 2020. It features a hydraulic drive system and the Selogica control system for precise operations. With a clamping force of 2,200 kN and a screw diameter of 40 mm, it is ideal for detailed injection moulding tasks. Consider the opportunity to buy this Arburg 570 S 2200-800/290 hydraulic injection moulding machine. Contact us for more information.

B&A REF: 8759 TON: 200 SHOT WEIGHT: 297 SCREW DIAMETER: 50MM STROKE VOLUME: 353CM3 INJECTION PRESSURE: 2050AR PLATEN SIZES: 795 X 795MM DBTB: 570 X 570MM MIN MOULD HEIGHT: 300MM MOULD OPENING STROKE: 650MM MAX DAYLIGHT: 950MM EJECTOR STROKE: 225MM CONTROLS: SELOGICA AIR VALVES: 1 MOTOR: 30 HEATING CAPACITY: 12KW SCREW DRIVE: ELECTRIC

Screw diameter; 55mm Injectable volume: 427 cm3 Injection pressure: 1720 bar Passage between columns: 570 x 570 mm Minimum mould thickness: 250 mm max: 750 mm Opening stroke: 600 mm Cores: 2 Robot interface: NO Options: Electrical dosing motor

Key data: 2000 , 678 , 60

Screw diameter; 60 mm Injectable volume / Shot volume: 678 cm3 Injection pressure: 2000 bar Column Passage /Bettween tie bar: 570 x 570 mm Mould tickness thickness: 250 mm max: 550 mm Opening stroke: 450 mm Core Pulling: 2 Robot interface: yes / Yes E67 Options: 12 Zones chauffe - 12 heating way

Description SILICONE PRESS 12 zone mold heating water channels 2 zones 6-zone thermoregulator control WAGNER Reinhardt-Technik pumping unit mod. LSR 200l and Twin year 2017

Description SILICONE PRESS 12 zone mold heating water channels 2 zones 6-zone thermoregulator control WAGNER Reinhardt-Technik pumping unit mod. LSR 200l and Twin year 2017

Injection moulding machine Arburg 570C 2000/150 60 2 K BJ 2007

Arburg 570C 2000-350/150 / Production line with the Arburg Multilift side robot / 2K machine Year of Make: 2003 Injection unit: Screw diameter: 40 mm Injection weight: 153 g Spray pressure: 2120 bar Dosing volume: 182 ccm Clamping unit: Clamping force: 200 t Handlebar spacing: 570x570 mm Size of the clamping plates: 795x795 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA Additional equipment: Production line with the Arburg Multilift side robot 2K Machine Air Valve x 1 Hydraulic core pull x 5 Control with hot runners Reinforced Injection Units – Bimetal Proportional valves on sprinkler units - precise spraying The vertical injection unit - screw diameter: ⌀25 mm - 49 g/hp All offered machines are started by our service technicians before they are sold. It is possible to receive a video of the technical tests of the selected machine o ...

Arburg 570S 2200-290/100/100 / Production line with the Wittmann W823 robot / Operating hours: 20,499 h in automatic mode Year of Make: 2016 Injection unit: Screw diameter: 35 mm Injection weight: 132 g Spray pressure: 2000 bar Dosing volume: 144 ccm Clamping unit: Clamping force: 220 t Handlebar spacing: 570x570 mm Size of the clamping plates: 795x795 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: 3-component injection moulding machine, high-speed Very good technical condition Operating hours: 20,499 h in automatic mode Euromap 67 Robot interface Air Valve x 6 Hydraulic, needle-core pull, controlled by a proportional valve x 4 Control with hot runners Hardened injection unit - Bimetal Proportional valve on the injection unit – precise injection Machine with two cylinders / battery with compressed ni ...

Key data: 2000 kN

Arburg 570H 2000-800 e² / Hybrid machine / Production line with the Arburg Multilift Select robot Year of Make: 2011 Injection unit: Screw diameter: 50 mm Injection weight: 359 g Spray pressure: 2000 bar Dosing volume: 392 ccm Clamping unit: Clamping force: 200 t Handlebar spacing: 570x570 mm Size of the clamping plates: 795x795 mm Ejector: electric Clamping unit: toggle lever Control: SELOGICA - Touchscreen Additional equipment: Hybrid machine: energy-saving and very quiet Euromap 67 Robot interface Air Valve x 4 Hydraulic core pull x 2 Control with hot runners x 12 Hardened injection unit - Bimetal Main motor of the machine - Servo motor driven by inverter - Energy saving The injection unit is driven by the servo motor, which is controlled by an inverter Machine with cylinder / battery with compressed nitrogen (extra charge for fast working) Central lu ...

Key data: 2000 kN, 55 mm

Clamping force: 200t Year of Make: 2002 Injection Unit .../675 Screw diameter 55 mm Spec. Spray pressure 2080 bar Injection volume 427 cc Clamping unit 2000/... Clamping force 200 t Size of the clamping plates 950 x 950 mm Lights spar spacing 570 x 570 mm Tool installation height 300 mm Opening way 650 mm Max. panel spacing 950 mm Year of construction 2002 Control type Selogica

Various injection molding machines are available. 1) Arburg Allrounder 420 A 1000-400, clamping force: 100t, screw diameter: 30/35mm, year of manufacture: 2005. 2) Demag 1000-420-310 EL-Exis S, clamping force: 100t, screw diameter: 30mm, year of manufacture: 2003. 3) Demag 1000-420-200 EL-Exis S, clamping force: 100t, screw diameter: 25mm, year of manufacture: 2003. 4) Arburg 570 C 2000-150/60 2K, clamping force: 200t, screw diameter: 25/12+15mm, year of manufacture: 2007. 5) Arburg 420 C 1000-250, clamping force: 100t, screw diameter: 35mm, year of manufacture: 1996. 6) Arburg 420 C 1000-250, clamping force: 100t, screw diameter: 30/25mm, year of manufacture: 1995. 7) Arburg 420 C 1000-250, clamping force: 100t, screw diameter: 30mm, year of manufacture: 1994. 8) Netstal Synergy 600-110, clamping force: 60t, screw diameter: 25mm, year of manufacture: 2001. 9) Arburg 900T 800-150, clampi ...

Arburg Injection Moulding Machine Type: 520 C 2000-675 Control: Selogica Built: 1999 Closing unit Clamping force t: 220 Opening path mm: 900 Holm size mm: 520 x 520 Installation height min/max mm: 250 Plate size: 715 x 715 Spraying unit Screw diameter mm: 60 Spray weight gr: 427 Spray volume cm3: 508 Spray pressure bar: 1400 Dimensions and weights Dimensions LxWxH m: 5.6 x 1.7 x 2.2 Machine Weight Kg: 7050 Other - Clamping force increased to 220 KN - resistant plastification unit - 2x core pull - Robotinterface Euromap12

- agregat card ARB 425 - analog output card ARB ARB 390 - output card ARB 409 - base board card SN. 193170 + SN 143537 ARB 729 + SN 173858 - panel card ARB 256, ARB 414 - control card ARB 692 - CPU card ARB 726, ARB 251 - diagnose card ARB 389 - disk controller card ARB 500 - input card ARB 254, ARB 705 - injection control card ARB 460, ARB 328, - elektronic card ARB 252, ARB 255, ARB 380 - inside press card ARB 259 - base board card ARB 372, ARB 523 - motor control card ARB 307, ARB 440 - 24V card ARB 381 - proporcional valve card 0 811 405 047, ARB 330 - memo card ARB 339, ARB 508, ARB 526 - heating control card ARB 365, ARB 404, ARB 530 ARB 640, ARB 730, yPIII - distributor card ARB 511, ARB 534, ARB 538, ARB 539 - video card ARB 258, ARB 535 - amplifier card, modul card - rectifier - transducer card ARB 302, ARB 399, ARB 733 - power supply Deutronic ED-60 -  ...

Closing unit Clamping force t: 200 Opening path mm: 650 Holm size mm: 470 x 470 Installation height min/max mm: 300/950 Plate size: 715 x 715 Spraying unit Screw diameter mm: 45 Spray weight gr: 240 Spray volume cm3: 286 Dimensions and weights Dimensions LxWxH m: 5.8 x 2.1 x 2.1 Machine Weight Kg: 7800 Other - 1 core - robot Interface Euromap 12

ARBURG injection moulding machine Type: 420 V 800-150-150 2Component, with turntable controller: SELOGICA year: 1998 Clamping unit Clamping force t Gap between 80 mm: 500 Holm dimension mm: 420 x 420 min/max height mm: 250 Plate size: 545 x 545 Injection unit Screw diameter mm: 25/25 Injection weight gr: 49/49 Injection volume cm m³: 54/54 Spray pressure bar: 2500 Dimensions and weights Dimensions Lxwxh m: 4.7 x 1.7 x 2.1 machine weight kg: 5000 Miscellaneous 2 Component with turntable (with turntable)

Complete screw and cylinder with filament and lockable nozzle. NEW!

Manufacturer/manufacturer: Arburg Typ/type: 420 C 1300-350 Year/year: 2008 Control/controller: Selogica Clamping force/clamping force: to 130 Holmabstand/Dist.Betw.Tiebars: 420 x 420 mm WZ height/mould hight: min 250 mm Opening/opening stroke: 500 mm Plate distance of max/Max open daylight: 750 mm Auger/screw size: 45 mm Stroke volume/shot volume: 230 ccm spec. Spritzdr / injection pressure: 1670 bar General / General engine power: 22 kW Heating/heating power: 8 kW Dimensions/dimensions: 4.3 m x 1.6 m x 1.8 m Weight/weight: 4300 kg

Manufacturer/manufacturer: Arburg Typ/type: 420C 1300-250 Year/year: 1999 Control/controller: Selogica Clamping force/clamping force: 1000 kN Holmabstand/Dist.Betw.Tiebars: 420 x 420 mm Disk size/platen size: 605 x 605 mm WZ height/mould hight: min 250 mm Opening/opening stroke: 500 mm Plate distance of max/Max open daylight: 750 mm Auger/screw size: 35 mm Stroke volume/shot volume: 144 CC / 132 gram PS spec. Spritzdr / injection pressure: 1820 bar General / General Engine power: 18.5 kW Heating/heating power: 6,5 kW Dimensions/dimensions: 4.3 m x 1.7 m x 1.8 m Weight/weight: 3180 kg Screen text/language: German/English Additional equipment/additional equipment Core puller / core pulling: x 1 Robot

Key data: 600 , 132 , 35

Manufacturer/Manufacturer: Arburg Type/Type: 370C 600-250 Bau-year year: 1999 Control/Controller: Selogica Clothing Power/Clamping Force: 600 kN Schliessart/Clamping Type: Hydraulisch/Hydraulic Holmabstand/Dist.Betw.Tiebars: 370 mm x 370 mm Plate Groesse/Platen Size: 570 mm x 570 mm WZ Einbauhoehe/Mould hight: min 250 mm Oeff-weg/opening stroke: 500 mm Plate distance max/Max. Open Daylight: 750 mm Snail/Screw size: 40 mm Lifting volume/shot volume: 188 cc/158 gram hp Spez. Spray./injection pressure: 1900 bar General General Motor/Motor Power: 11 kW Heating/heating power: 8.1 kW Dimensions: 4.3 m x 1.7 m x 1.8 m Weichtt/Weight: 3180 kg Screen text/Language: Deutsch/German Additional equipment/Additional equipment

Manufacturer/Manufacturer: Arburg Type/Type: 370C 600-250 Bau-year/Year: 2000 Control/Controller: Selogica Clothing Power/Clamping Force: 600 kN Schliessart/Clamping Type: Hydraulisch/Hydraulic Holmabstand/Dist.Betw.Tiebars: 370 mm x 370 mm Plate Groesse/Platen Size: 570 mm x 570 mm WZ Einbauhoehe/Mould hight: min 250 mm Oeff-weg/opening stroke: 500 mm Plate distance max/Max. Open Daylight: 750 mm Snail/Screw size: 40 mm Lifting volume/shot volume: 188 cc/158 gram hp Spez. Spray./injection pressure: 1900 bar General General Motor/Motor Power: 11 kW Heating/heating power: 8.1 kW Dimensions: 4.3 m x 1.7 m x 1.8 m Weichtt/Weight: 3180 kg Screen text/Language: Deutsch/German Additional equipment/Additional equipment

Key data: 800 , 132 , 35

Manufacturer/Manufacturer: Arburg Typ/Type: 370C 800-250 Bau-year year: 2003 Control/Controller: Selogica Clothing kraft/Clamping Force: 800 kN Schliessart/Clamping Type: Hydraulisch/Hydraulic Holmabstand/Dist.Betw.Tiebars: 420 mm x 420 mm Plate Groesse/Platen Size: 570 mm x 570 mm WZ Einbauhoehe/Mould hight: min 250 mm Oeff-weg/opening stroke: 500 mm Plate distance max/Max. Open Daylight: 750 mm Snail/Screw size: 34 mm Lifting volume/shot volume: 144 cc/132 gram hp Spez. Spray./injection pressure: 1820 bar General General Motor/Motor Power: 15 kW Heating/heating power: 8.6 kW Dimensions: 4.2 m x 1.7 m x 1.8 m Weichtt/Weight: 3180 kg Screen text/Language: Deutsch/German Additional equipment/Additional equipment Euromap

Manufacturer/Manufacturer: Arburg Typ/Type: 420C 1000-350 Bau-year year: 1999 Control/Controller: Selogica Clothing Power/Clamping Force: 1000 kN Schliessart/Clamping Type: Hydraulisch/Hydraulic Holmabstand/Dist.Betw.Tiebars: 420 mm x 420 mm Plate's Platen Size: 650 mm x 650 mm WZ Einbauhoehe/Mould hight: min 225/275 mm Oeff-weg/opening stroke: 575 mm Plate distance max/Max. Open Daylight: 800/850 mm Snail/Screw size: 45 mm Lifting volume/shot volume: 206 cc/194 gram hp Spez. Spray./injection pressure: 1670 bar General General Motor/Motor Power: 18.5 kW Heating/heating power: 10.5 kW Dimensions: 4.4 m x 1.7 m x 2 m Weicht/Weight: 5100 kg Screen text/Language: Deutsch/German Additional equipment/Additional equipment Core Pulling: x1 Euromap

Key data: 1300 , 194 , 45

Manufacturer/Manufacturer: Arburg Typ/Type: 420C 1300 kN-350 Bau-year year: 1999 Control/Controller: Selogica Closing Power/Clamping Force: 1300 kN Schliessart/Clamping Type: Hydraulisch/Hydraulic Holmabstand/Dist.Betw.Tiebars: 420 mm x 420 mm Plate Groesse/Platen Size: 605 mm x 605 mm WZ Einbauhoehe/Mould hight: min 250 mm Oeff-weg/opening stroke: 500 mm Plate distance max/Max. Open Daylight: 750 mm Snail/Screw size: 40 mm Lifting volume/shot volume: 182 cc/166 gram hp Spez. Spray./injection pressure: 1670 bar General General Motor/Motor Power: 22 kW Heating/heating power: 8 kW Dimensions: 4.3 m x 1.7 m x 1.8 m Weicht/Weight: 5100 kg Screen text/Language: Deutsch/German Additional equipment/Additional equipment Core Pulling: x1 Euromap Vario
