ARBURG 270 used machines

Manufacturer: Arburg Type: 270 C 400 - 100 Year of construction: 1998 Control: Selogica Closing force: 400 kN Closing type: Hydraulic Tie bar spacing: 270 mm x 270 mm Plate size: 446 mm x 446 mm Tool height: min 200 mm Opening distance: 350 mm Plate spacing max.: 550 mm Screw: 30 mm Stroke volume: 70 ccm / 64 gram HP Injection pressure: 1550 bar general Engine: 11 kW Heating: 5.9 kW Dimensions: 3.42 m x 1.5 m x 1.7m Weight: 1980 kg Screen text: German Additional equipment Core train: x1

Manufacturer: Arburg Type: 270 S 250 - 150 Year of construction: 1997 Control: Selogica Closing type: Hydraulic Closing force: 250 kN Tie bar spacing: 270 mm x 270 mm Plate size: 400 mm x 400 mm Tool height: min 200 mm Opening distance: 275 mm Plate spacing max.: 475 mm Screw: 25 mm Lifting volume: 54 ccm / 45 gram PS Injection pressure: 2500 bar general Engine: 11 kW Heating: 4.8 kW Dimensions: 3.2 m x 1 m x 1.6 m Weight: 2100 kg Screen text: German Optional extras Core train x2 Robot interface Air valve Sorting flap

Key data: 250 , 33 , 25

Manufacturer: Arburg Type: 270 S 250 - 60 Year of construction: 1997 Control: Selogica Closing type: Hydraulic Closing force: 250 kN Tie bar spacing: 270 mm x 270 mm Plate size: 400 mm x 400 mm Tool height: min 200 mm Opening distance: 275 mm Plate spacing max.: 475 mm Screw: 25 mm Stroke volume: 39 ccm / 33 gram HP Injection pressure: 1800 bar general Engine: 7.5 kW Heating: 2.7 kW Dimensions: 3.2 m x 1 m x 1.6 m Weight: 1900 kg Screen text: German Optional extras Picker Gaiger Robot interface Air valve

Manufacturer: Arburg Type: 270 C 300 - 100 Year of construction: 1999 Control: Selogica Closing type: Hydraulic Closing force: 300 kN Tie bar spacing: 270 mm x 270 mm Plate size: 446 mm x 446 mm Tool height: min 200 mm Opening distance: 350 mm Plate spacing max.: 550 mm Screw: 30 mm Stroke volume: 70 ccm / 59 gram PS Injection pressure: 1550 bar General Engine: 7,5 kW Heating: 4.7 kW Dimensions: 3.4 m x 1.4 m x 1.6 m Weight: 2000 kg Screen text: German

Arburg 270 S 250-60 (2004) Clamping Force: 25 t Tie Bar Spacing: 270 mm × 270 mm Platen Dimensions: 400 mm × 400 mm Max. Mold Opening Stroke: 275 mm Min. Mold Height: 198 mm Max. Daylight: 279 mm Ejector Stroke: 95 mm Mold Opening Force (Max.): 14 kN Machine Dimensions (W × D): 1250 mm × 3800 mm Machine Weight: Approximately 1900 kg Screw Diameter: 22 mm Stroke Volume: 39 cm³ Injection Pressure: 1810 bar Injection Flow (2 Pumps): Up to 8.1 cm³/s Material Throughput (PS): Up to 22.0 kg/h Year of Manufacture: 2004 Type: Hydraulic Injection Molding Machine

Arburg 270 C 400-100 (2000) Clamping force: 40 t Screw diameter : 20 mm Distance between tie bars : 270 x 269 mm Shot weight : 25 g Type : horizontal Drive : hydraulic Hours : 138000 h

ARBURG 270 S 150-60 U ALLROUNDER MACHINE WAS FULLY SERVICED NOT LONG AGO WITH NEW SCREW TECNICAL DATA IN LIST -PHOTO EUROMAP 150-60

Key data: 500 kN

Injection moulding machine Arburg 270 D 500-210 with control cabinet, functional, built in 1990, power 20kW, weight 1,850 kg, Clamping force 500 kn

Key data: 400 , 64 , 30

Manufacturer: Arburg Type: 270C 400 - 100 Built: 2000 Control: Selogica Closing force: 400 kN Closing type: Hydraulic Tie bar distance: 270 mm x 270 mm Plate size: 446 mm x 446 mm Tool installation height: min 200 mm Opening distance: 350 mm Plate spacing max.: 550 mm Screw: 30 mm Lifting volume: 70 cc / 64 gram hp Spray pressure: 1550 bar General Engine: 11 kW Heating: 5.9 kW Dimensions: 3.42 m x 1.5 m x 1.7m Weight: 1980 kg Screen text: German Additional equipment Core train: x1 Robot interface

Manufacturer: Arburg Type: 420 C 1000 - 270 Year of construction: 2007 Control: Selogica Closing type: Hydraulic Closing force: 1000 kN Tie bar spacing: 420 mm x 420 mm Plate size: 570 mm x 570 mm Tool height: min 250 mm Opening distance: 500 mm Plate spacing max.: 750 mm Screw: 35 mm Stroke volume: 144 ccm / 132 gram PS Injection pressure: 2000 bar general Engine: 15 kW Heating: 6.4 kW Dimensions: 4.3 m x 1.6 m x 2 m Weight: 3880 kg Screen text: German Optional extras Core train x1 Robot interface

clamping force: 500 kN injection volume: -- cm³ screw diameter: 25 mm platen size: 400 x 400 mm Condition: used, Specification: horizontal injection molding machine, - used injection unit: - Screw diameter: 25 mm - shot volume max.: -- cm³ - injection pressure approx.: 1290 bar - heating zones: 4 - Heating power: 4 kW clamping unit: - clamping force: 500 kN - opening stroke max.: 325 mm - platen distance max.: 550 mm - clamping platen size approx.: 400 x 400 mm - tie bar distance: 270 x 270 mm - pump motor: 15 kW - total power: 19 kW - operating voltage: 380V, 50Hz - Weight approx.: 1.870 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

clamping force: 350 kN injection volume: 59 cm³ screw diameter: 25 mm platen size: 400 x 400 mm Condition: used, Specification: injection moulding machine for rubber - used International size: 350-90 clamping unit: - clamping force: 350 kN - clamping platen size: 400 x 400 mm - Clear distance between tie bars: 270 x 270 mm - Mould installation height min.: 225 mm - Distance between clamping platens: max. 550 mm - Opening stroke max.: 325 mm - Ejector stroke: 125 mm Injection unit: - Screw diameter: 25 mm x 20D - Injection volume max.: 49 cm³ - Injection part weight: 59 g/hp - Max. injection pressure: 1,860 bar - Screw circumferential speed: 37 m/min - Cylinder heating: 4x 900 W - Nozzle heating: 300 W - Heating complete: 4,6 kW - Pump motor: 11 kW - Total power ...

Description 6 zone mold heating

Description bi-injection machine vertical injection with 20mm diameter screw hoist capacity 200kg height from the ground 3800mm

Description Verticalizable

There are five injection moulding machines Arburg available. 1) Arburg 320C 600-250, year of construction: 2001, operating hours: 83,365h. 2) Arburg 420C 1000-250, year of manufacture: 2001, operating hours: 90,769h. 3) Arburg 270C 300-100, year of construction: 1999, operating hours: 78,784h. 4) Arburg 320C 300-100, year of construction: 2000, operating hours: 78,784h. 5) Arburg 270C 300-100, year of construction: 2007, operating hours: 59,885h.

2 x Injection Molding Machines Manufacturer. Arburg Type : 270S-250-60 BJ 1996

Eight Arburg injection molding machines, one Engel injection molding machine, and one Demag injection molding machine are available. 1) Arburg 270M 350-90, year of manufacture: 1996, operating hours: approx. 110000h. 2) Arburg 270M 350-90 U, year of manufacture: 1998, operating hours: approx. 108000h. 3) Arburg 270M 350-90, year of manufacture: 1992, operating hours: approx. 178000h. 4) Arburg 420C 1000-250, year of manufacture: 1995, operating hours: approx. 96000h. 5) Arburg 370C 800-225, year of manufacture: 1992, operating hours: approx. 156000h. 6) Arburg 320M 500-90, year of manufacture: 1991, operating hours: approx. 94000h. 7) Arburg 270M 350-90 U, year of manufacture: 1998, operating hours: approx. 83000h. 8) Arburg 630S 2500-675, year of manufacture: 2003, operating hours: approx. 93000h. 9) Demag Viva 100-400, year of manufacture: 1999, operating hours: approx. 116000h. 10) En ...

Ref. no.: 17540 Hersteller: ARBURG Year of construction: 1994 Clamping unit Clamping force: 50 ton Opening stroke: 350 mm Distance between tie bars: 270 X 270 mm Mould height min.: 200 mm Platen size (h x v): 405 X405 mm Injection unit Screw diameter: 25 mm Injection volume: 67 cm³ Shot weight: 61 g Injection pressure: 2500 bar Measurements and weight Dimensions: 3,3 X 1,5 X 2,0 m Machine weight: 2400 kg

Key data: 400 kN

Arburg 270C 400-70 Year of Make: 2007 Injection unit: Screw diameter: 22 mm Injection weight: 31 g Spray pressure: 2000 bar Dosing volume: 34 ccm Clamping unit: Clamping force: 40 t Tiebar spacing: 270x270 mm Size of the clamping plates: 446x446 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: Euromap 67 Robot interface Air Valve x 2 Hydraulic core pull x 1 Control with hot runners Hardened injection unit - Bimetal Proportional valve on the injection unit – precise injection It is possible to change the screw diameter Dimensions: Weight: 2370 kg Length/Width/Height: 2.99x1.43x1.98 m All offered machines are started by our service technicians before they are sold. It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our compa ...

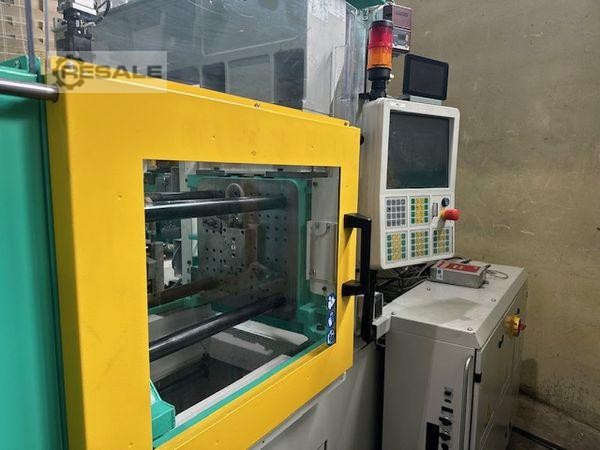

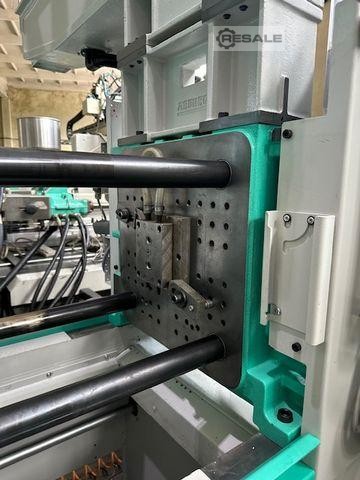

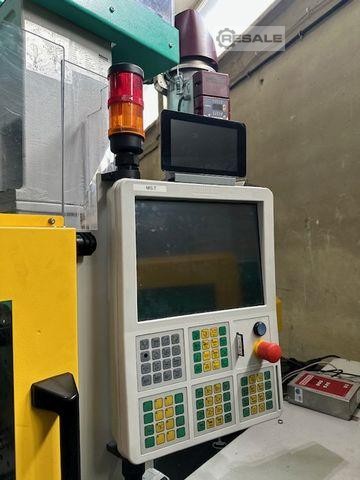

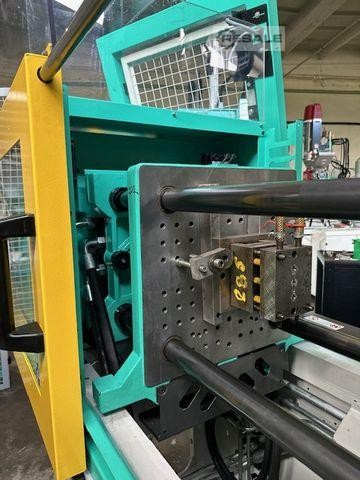

Arburg 270C 400-70 e² with the Arburg Multilift robot / hybrid machine Year of Make: 2016 Injection unit: Screw diameter: 22 mm Injection weight: 31 g Spray pressure: 2000 bar Dosing volume: 34 ccm Clamping unit: Clamping force: 40 t Tiebar spacing: 270x270 mm Size of the clamping plates: 446x446 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: Hybrid machine: energy-saving and very quiet Euromap 67 Robot interface Air Valve x 2 Hydraulic core pull x 1 Hardened injection unit - Bimetal Main motor of the machine - Servo motor driven by inverter - Energy saving Proportional valve on the injection unit – precise injection Self-closing nozzle Arburg Multilift Select 6kg transverse robot Year of manufacture: 05.2016 5-axis robot: 3 axes are driven by servo motors (electric); Axis B and C Traversing in ax ...

CONTROLS   CNC controls MOULD CLAMPING UNIT   locking force: 350 to   die opening stroke max.: 350 mm EJECTOR (TABLE EJECTOR)   stroke: 150 mm INJECTION UNIT   stroke of screw: 80 mm ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 3700 mm   space requirements -front/back-: 1300 mm   total height: 2100 mm   total weight approx.: 2300 kg Features: - Includes pellet dryer: Labotek DDM 60 ALB3 units available

Injection moulding machine Arburg 270s 500-60 and Boy 12 M 1998

Arburg ARB 270 G SN 42458 Leiterplatte Spritzgiessmaschine Ersatzteile Hersteller: Arburg Teilenummer: SN 42458 Leiterplatte Number: SN 42458 Type: ARB 270 g Anwendung: Ersatzteil für Arburg Spritzgussmaschinen Zustand: gebraucht, geprüft, voll funktionsfähig Referenznummer: 11061323

Special price because without dukumentation / without disc without funnel +VAT (reclaimable) R1277 Injection moulding machine Arburg A 270 Hydronica D-Version Dialogica topZustand screw D 30mm with device for injection into the parting plane a viewing is desirable by appointment Sale only to traders and under the following conditions The machine is considered to have been taken over when it leaves the company, subsequent complaints cannot be taken into account So no guarantee and return.We do not assume any liability for compliance with all requirements mentioned in the UVV (accident prevention regulations).
