55 TRAUB used machine for sale

turning diameter:500 mm turning length:1000 mm weight of the machine ca.:7,3 t dimensions of the machine ca.:6,5 x 4,45 x 2,21 m

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

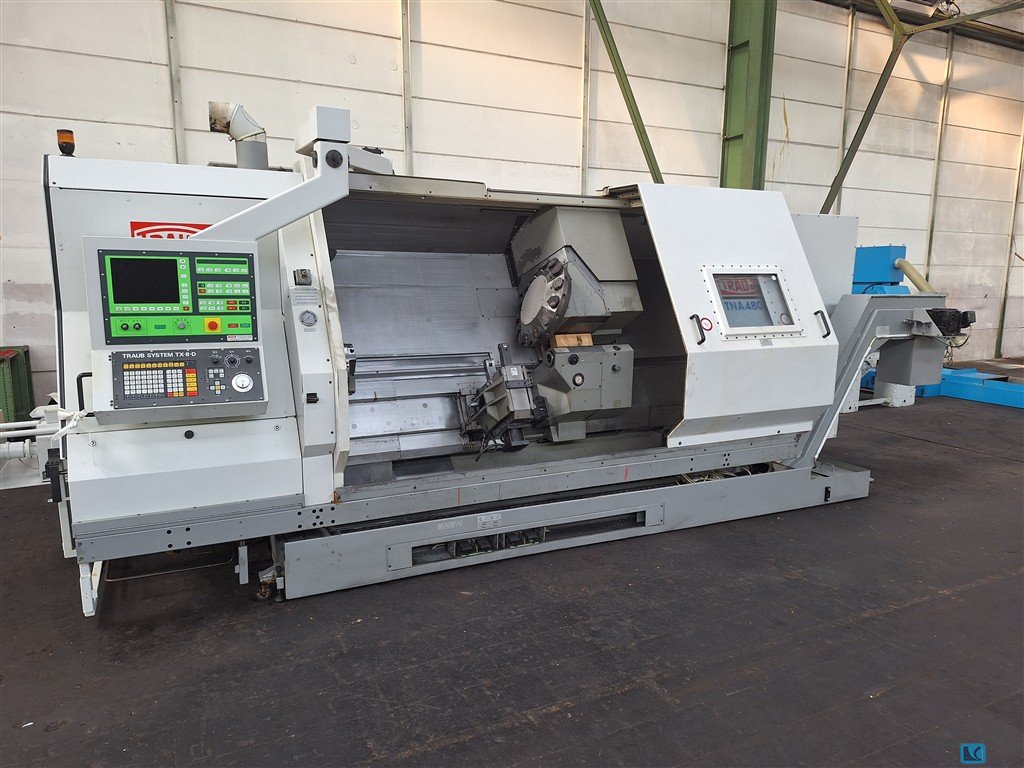

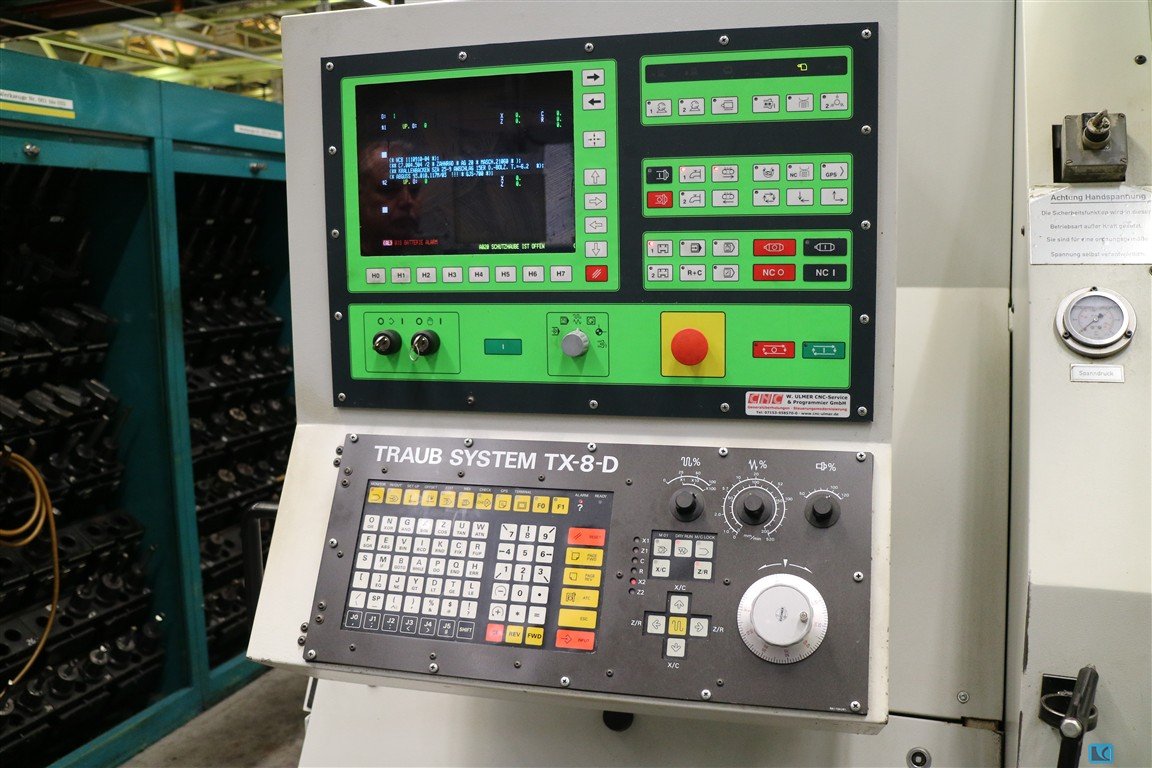

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment

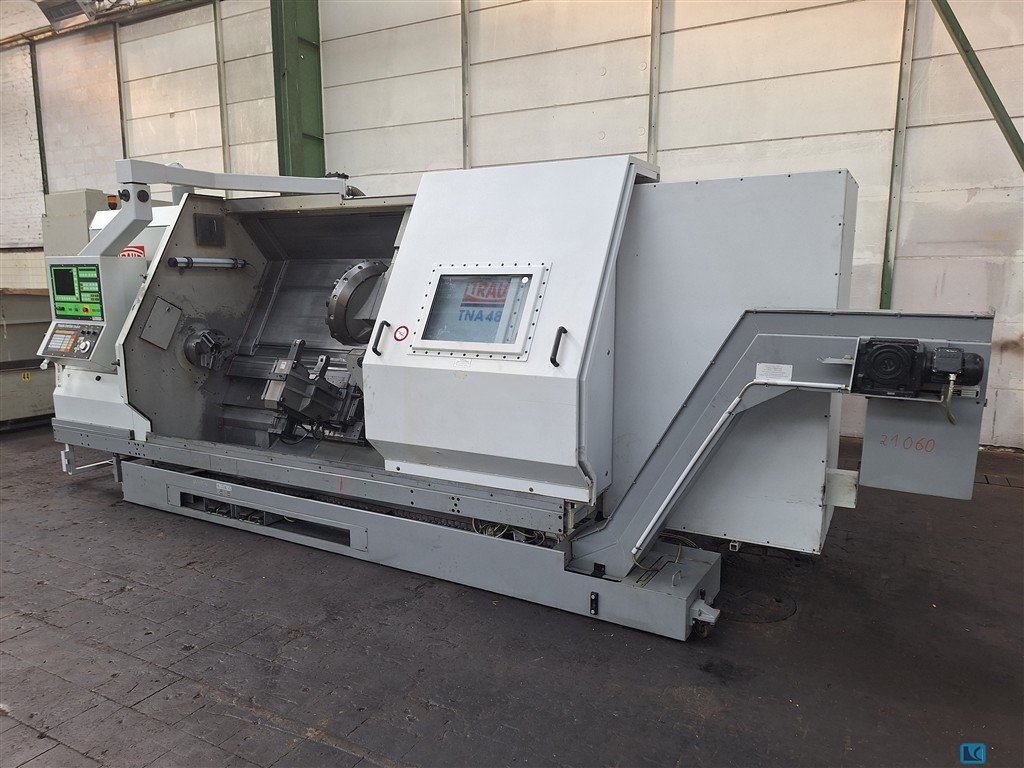

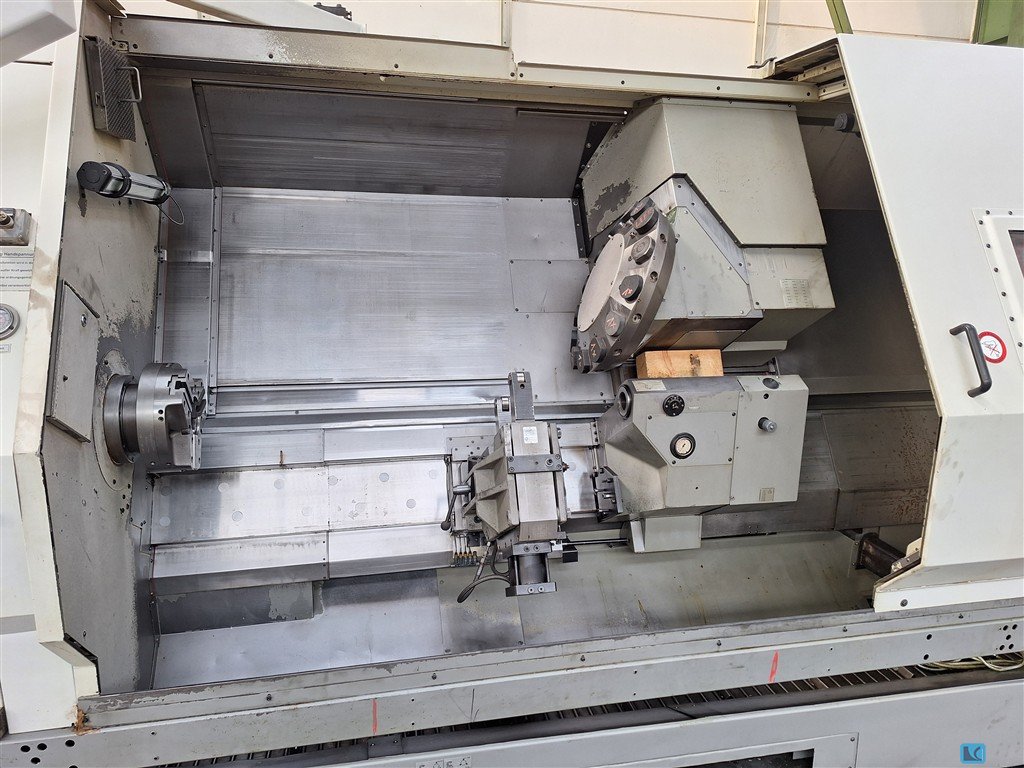

spindle passage: 80 mm max. turning diameter: 395 mm Max. Turning length: 750 mm control: System TX 8H max. Spindle speed: 3.150 U/min. CNC lathe | TRAUB - TNA 400 The machine is in a well-maintained condition. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags:TNA400 | TNA-400 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle passage: 80 mm max. turning diameter: 460 mm Max. Turning length: 1.000 mm control: System TX 8F max. Spindle speed: 2.800 U/min. CNC lathe | TRAUB - TNA 500 The machine is in a well-maintained condition. The machine videos from the production plant will be shared on request. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags:TNA500 | TNA-500 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 480 mm turning length: 800 mm control: System TX8F turning diameter over slide: 240 mm spindle passage: 65 mm chuck diameter: 200 mm turning speeds: 4000 U/min power capacity: 30 kW total power requirement: kW weight of the machine ca.: 4,3 t dimensions of the machine ca.: m powered tools The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 12,7 mm turning length: 50 mm control: Traub System TX 8i turning speeds: 12000 U/min c-axis: 0,001° c-axis: 0,001 ° gripping station: 12,7 mm speeds: 12000 U/min rapid traverse: 15 m/min turret (x-stations): 6 worktool system: 5+3 worktool system: 3 Werkzeugsysteme total power requirement: 2,5/4 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 2,4 x 1,1 x 1,7 m driven tools: 6+4+4 Rev+S7+S8 CNC turning machine Traub TNL 12K with barloader LNS Tryton 112 Motor drive S8 (rear working with driven tools possible) Motor drive S7 (front working with driven tools possible) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

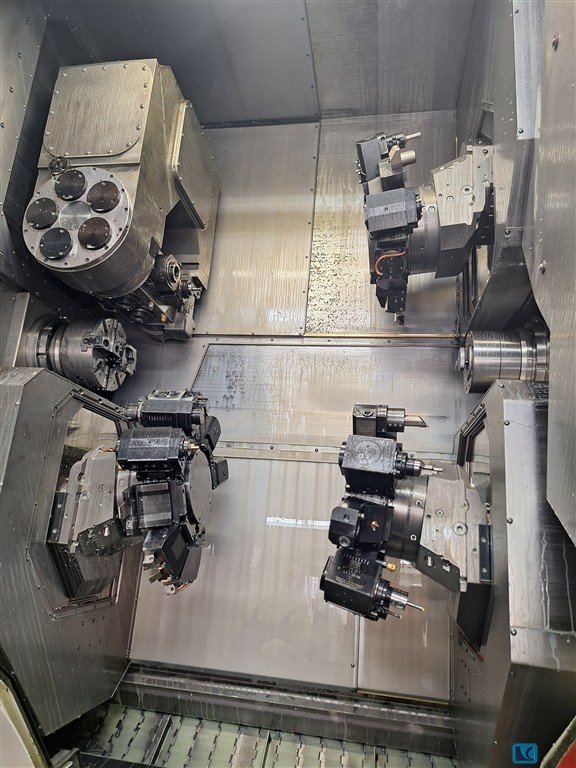

turning diameter: 275 mm turning length: 900 mm control: TRAUB TX8i Main- opposite spindle: spindle passage: 65 mm power capacity at 100 % load: 25,20 kW power capacity at 40 % load: 30,20 KW max. torque at 40% / 100% load: 180 / 135 Nm spindle turning speed - stepless: 1 - 5.000 U/min spindle diameter in front bearing: 110 mm C-axis: 1 - 500 U/min worktool support: No. 1 x-axis: 290 mm y-axis: 165 mm z-axis: 600/950 mm B - axis: 360 ° rapid traverse X/Y/Z: 18 / 18 / 30 m/min feed capacity X/Y/Z: 10 / 10 / 7 kN number of tools: 2x2 + 2x2 number of driven tools: 2x2 + 2x2 mm toolpiece turning speed range: 8.000 / 2.000 U/min power capacity at 25 % load: 5,80 kW max. torque at 25% load: 4x18,6 / 4x74 Nm tool taper: TRAUB Ø60 worktool support: No.2 / No.3 / No.4 x-axis: 170 mm z-axis: 600/950 mm y-axis: +/- 60 mm rapid traverse X/Y/Z: 18 / 15 / 30 m/min feed capacity X/Y/Z: 10 / 10 / 7 k ...

max. bar material dia.: 65 mm max. swing diameter: 175 mm max. bar length: 3.000 mm control: System TX 8F travel -x axis: 140 mm travel -z axis: 520 mm CNC lathe | TRAUB - TNC 42/65 DG equipped with bar loader. The machine is in a well-maintained condition and can be inspected at any time under power. The machine videos from the production plant will be shared on request. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: TNC65 | TNC-65 |TNC 42-65 DG | TNC 42/65DG The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Traub TNL 12 K lathe for sale year of construction 2005 Removal and loading on truck at buyer´s expense Delivery ex works excl. transport insurance Find more here - / Contact us at -

CNC Control Traub System TX 8D C-axis/ Driven tools Bar feeder Stamag DN42 Collector of the finished parts Chip conveyor Internal liquid cooling Very good condition Max. bar diameter 42 mm Turning length 220 mm Hydraulic chuck Chuck- max. turning dia. 140 mm Max. turning diameter 140 mm Max. turning diameter over bed 390 mm Spindle boring 42 mm Number of turret heads- 3 -1st turret 12 tools -2nd turret 12 tools -3rd turret 4 tool Tool holders VDI 30 X axis travel 200 mm Z axis travel 300 mm Spindle speed 5600 rpm Max. bar length 4200 mm Max. working bars in dia. 42- 7 Total power requirement 34 kW Interlocking cover Total dimensions: 7400x1900x2400 mm Weight 4500 kg

CONTROLS   CNC controls TRAUB TX8I-S BASIC FUNCTIONS   number of spindles: 2   number of c-axes: 2 WORKING RANGE TURNING   turning diameter (max): 20 mm   bar diameter (max): 20 mm MAIN SPINDLE   spindle revolutions (max): 10000 /min   c-axis: yes COUNTER SPINDLE   spindle revolutions (max): 10000 /min   c-axis: yes ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz ATTACHMENTS (TURNING)   chip conveyor: yes   through spindle coolant attachment: yes   hydraulic system: yes   European CE standards: yes - Interchangeable operation: Can be used as a short- or long-turning lathe Equipment: Number of axes: 12 (15) - Main spindle C - Sub-spindle D20 with X/Z/C axes - Upper tool gantry with X/Y/Z/H/B axes and 8 tool ho ...

BASIC FUNCTIONS   number of spindles: 1   number of turrets: 1   live positions: yes WORKING RANGE TURNING   swing diameter (max): 560 mm   turning diameter (max): 275 mm   bar diameter (max): 42 mm   worpiece length max.: 450 mm MAIN SPINDLE   spindle revolutions (min): 5600 /min   drive power: 11 kW X/Z SLIDE   number of tool positions (total): 11   number of live positions: 11   - rotation speeds (max): 4500 /min TAILSTOCK   sleeve stroke: 60 mm   sleeve diameter: 70 mm   holding force (max.): 8600 kN ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 2700 mm   space requirements -front/back-: 1600 mm   to ...

CONTROLS   CNC controls TRAUB TX 8 BASIC FUNCTIONS   number of spindles: 1   number of x/z slides: 1   number of turrets: 1   live positions: yes   number of c-axes: 1 WORKING RANGE TURNING   swing diameter (max): 450 mm   turning diameter (max): 350 mm   bar diameter (max): 60 mm   worpiece length max.: 490 mm MAIN SPINDLE   spindle revolutions (max): 4000 /min   c-axis: yes TOOL MAGAZINE   number of positions: 12 ELECTRICAL SPECIFICATIONS   total power consumption: 39 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 3150 mm   space requirements -front/back-: 2100 mm   total height: 2100 mm   total weight approx.: 4000 kg ATTA ...

Inv. Num. : 8535 Type: TNL 18P Producer: TRAUB Created: 2013 Parameters: Control system: TRAUB SYSTEM TX 8i-p Max. rod diameter: 20 mm Maximum turning length: 180 mm Number of Spindles: 2 pieces Maximum spindle speed: 8000 1/min Length: 2500 mm Width: 1460 mm Height: 2250 mm Weight: 4000 kg Equipment: Bar Feeder

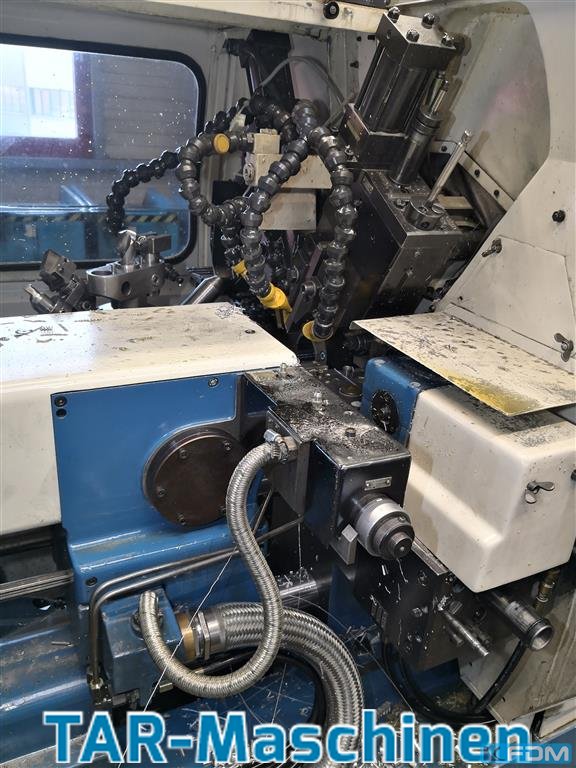

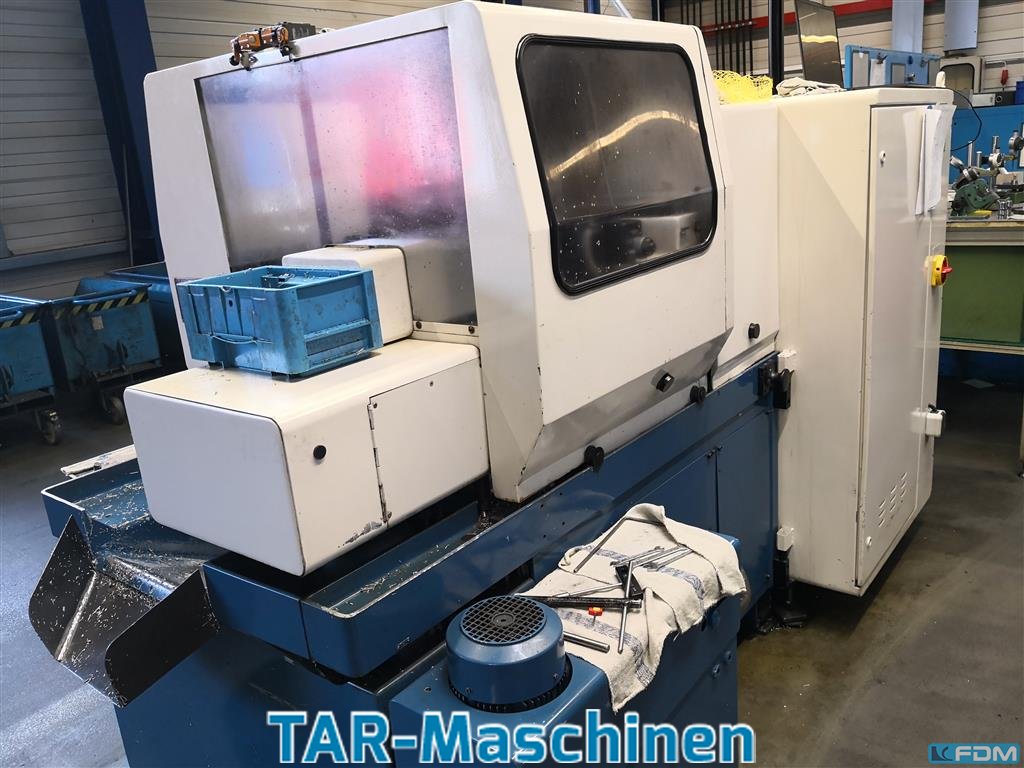

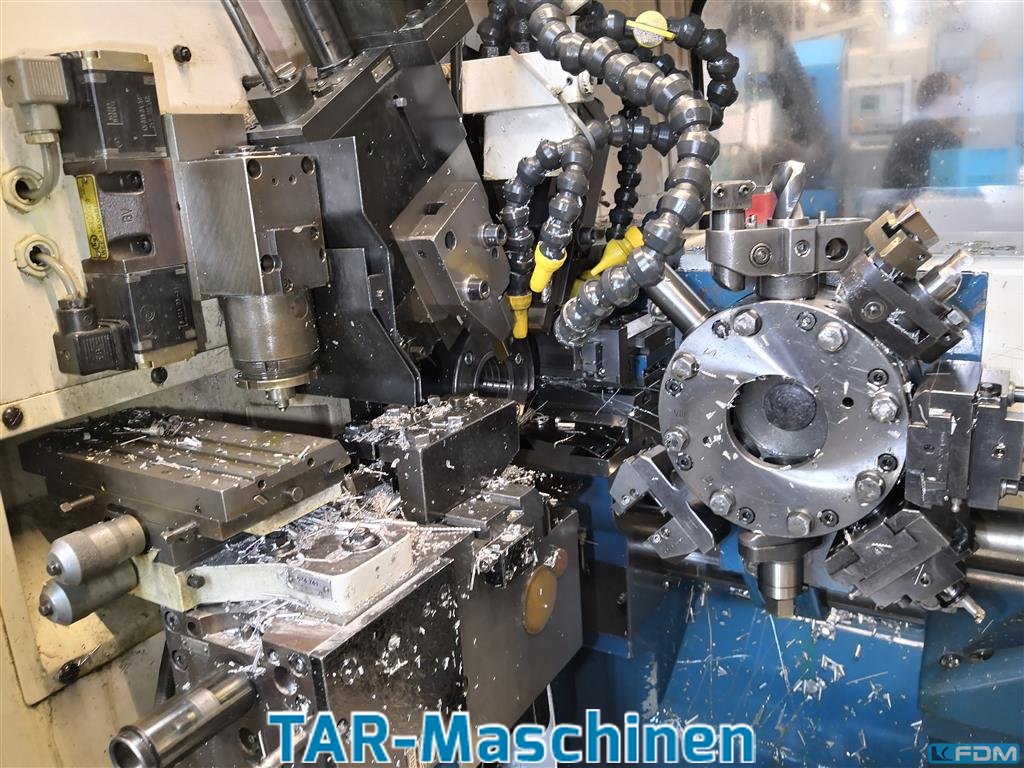

Article: Programme-controlled automatic lathe Manufacturer: Traub Type: TF60 / 140 Yob: 1978 Bar automat Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

4 x Lathes Traub TND 400

Traub TNL 20 – 9B Machine No. 11920182 Year of construction 2022 TX8i-s control (with Polyform / Helical / 19" multi-touch with gesture technology) Alternating operation: Use as a short or long-turning lathe Main spindle D20 (with 10,000 rpm) with C-axis Sub-spindle D20 with X/Z/C axis Tool carrier top X/Y/Z/H/B axis with 8 tool holders Tool carrier lower X/Y/Z/H axis with 8 tool holders Recirculating apparatus with 4 tool positions Cooling lubricant mist extraction and filter system Automatic CO2 extinguishing system Accuracy Package Tool breakage control device (Wkz beam above) Tool breakage control device (Wkz beam below) Hinge Belt Chip Conveyor Coolant system with 20 to 80 bar pump Charging magazine FMB Turbo 2-20 Sliding device for loading magazine Portal workpiece removal unit Workpiece conveyor belt

This 7-axis TRAUB TNL 32-7 horizontal turning machine was manufactured in 2013. Ideal for precision turning operations, it offers robust performance and reliability. Consider the opportunity to buy this TRAUB TNL 32-7 horizontal turning machine. Contact us for more information.

GENERAL Project No.: 905832 Quantity: 1 pcs. Manufacturer: TRAUB Type: TNL 20 - 9B Control: Traub TX 8i-s Year of Make: 2022 Condition: Used machine Approx. (hrs): 33180 Program run approx. (hrs.): 16914 DESCRIPTION TURNING Max. turning diameter 20 mm Max. speed main spindle 10,000 1/min Spindle aperture main spindle 20 mm Axes on the main spindle unit C Max. speed sub-spindle 10,000 1/min Spindle passage sub-spindle 20 mm Axes on the sub-spindle unit X/Z/C Tool carrier at the top Number of stations 8 Axes X/Y/Z/H/B Bottom Tool Carrier Number of stations 8 Axes X/Y/Z/H Residual apparatus Number of stations 4 OTHER EQUIPMENT Tool breakage monitoring Splash protection cladding with fully encapsulated working area Lighting in the work area Oil/Emulsion Mist Extraction System Hinge belt chip conveyor Engine is/was operated with oil Co ...

TRAUB TNS 65 D / 5 - Axis CNC Lathe -For complete technical data, see data sheets -Control TX8 D -Built in 1994 -Rod passage 65 mm -Hydraulic bar loading magazine -Various driven tool holders -Tool holder -Three-jaw chuck -Complete documentation Hebkn Auovug Uls S Tel

This 9-axis TRAUB TNL 32 swiss type turning machine was manufactured in 2014. It features a TX8i-s control with a 64-bit RISC CNC/PLC processor, color TFT display, and electronic handwheel. The main spindle supports a 32 mm bore, and the machine includes a sub-spindle with a C-axis. It offers a dual-driven upper tool turret and a lower turret with nine tool holders. Consider the opportunity to buy this TRAUB TNL 32 swiss type turning machine. Contact us for more information.

CNC Swiss Automatic Lathe TRAUB TNL 32 9P With control TX 8 i - p Year of Make: 2016 Spindle bore: 32 mm MAIN SPINDLE Speed range: Max. 6400 rpm C Axis SUB-SPINDLE Speed range: Max. 6000 rpm C Axis TOOL TURRET TOP: Speed range: Max. 12000 rpm 10 speed turret ( All driven ) TOOL TURRET ABOVE: Speed range: Max. 12000 rpm 9 speed turret ( All driven ) REAR UNIT Number of stations: 8 Of which powered: 3 ( T 12 , 13 and 14 ) Speed T12 + T 14 ( 12000 rpm ) Speed T 13 : ( 4000 rpm ) With the following accessories: Full protection cab with interior lighting Various powered tools Various tool holders IEMCA Boss 338 Bar Feeder - HD KSS Pump 20 bar Chip conveyor Operating Instructions
