Tilting moulders SCHNEIDER MIT LIEFERUNG type SH 1/2 with Vorschub
wood working machines / milling machines wood / Tilting moulders
Manufacturer: SCHNEIDER MIT LIEFERUNG
Model:type SH 1/2 with Vorschub
Type of machine: Tilting moulders
item-No.: 168377490
Quantity: 1
Date: 07.12.2025
Year of manufacture: 1990
Location:
Germany
99974 Mühlhausen OT Eigenrieden
Price: basis for negotiations (BN) 4,850 EUR
Machine in stock:Yes

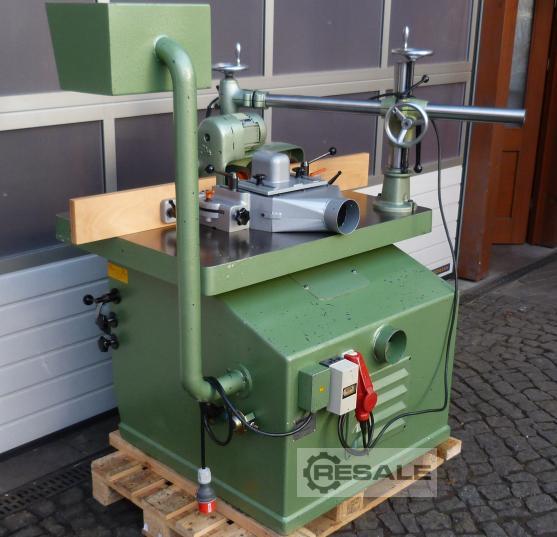

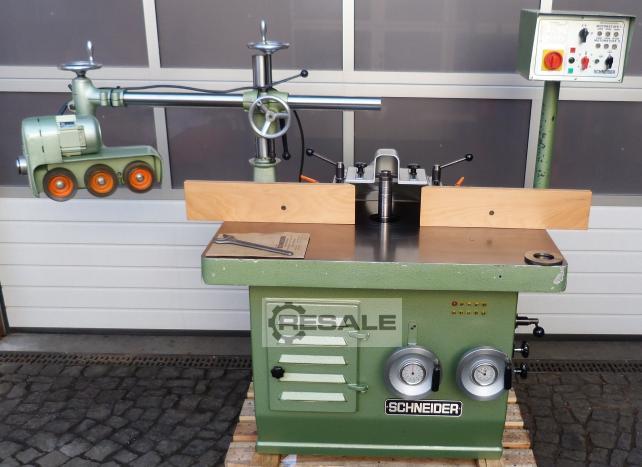

Swivel spindle milling machine SCHNEIDER SH 1/2
very good condition, the machine comes from an assembly company and was only used for modification work, the last few years it was no longer needed and that's why it is now being sold
everything works perfectly
all bearings and guides are OK
Built in 1990

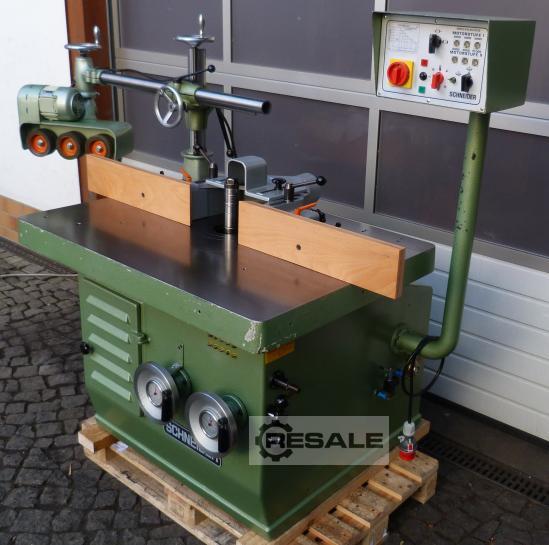

the machine has the control panel at the top

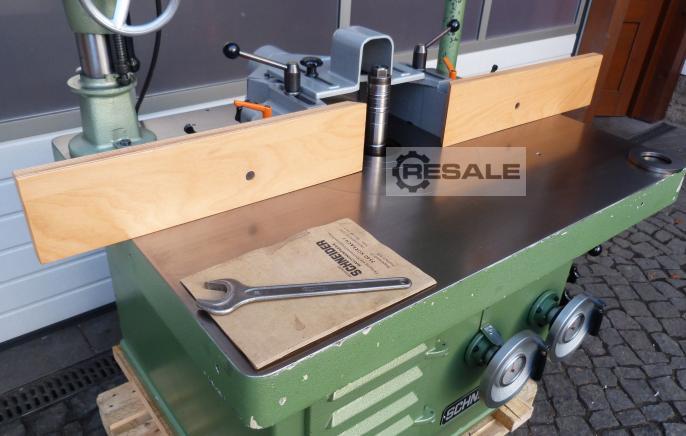

both stop jaws can be adjusted in depth on the milling fence, which means that dressing work can also be carried out, e.g. on a gluing profile
with spindle lock by lever
the chips can be removed very well, with 2 suction nozzles 120mm, on the milling fence and on the machine table
with 30 spindle, which can be swivelled continuously from -5 to 45°, the spindle is swivelled with a handwheel, with a very precise, mechanical count clock
with right/counterclockwise rotation
the machine will be delivered and demonstrated by us personally throughout Germany for 220.00 euros, so you have no risk when buying, shipping to Austria and the rest of the EU is also possible on request

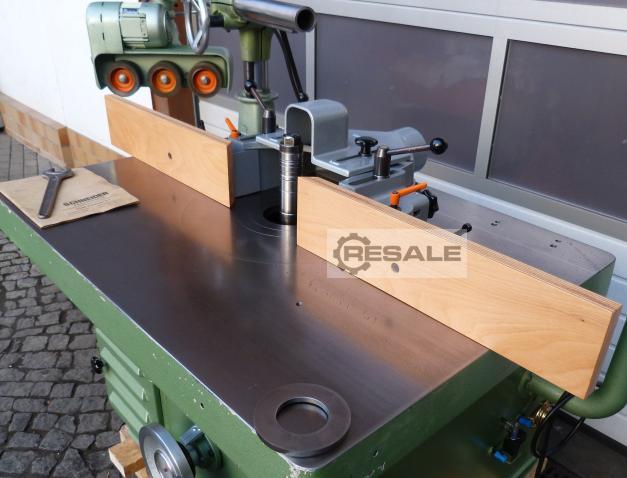

with a large table opening, which can be reduced by different rings (this means that milling cutters with a very large diameter can also be used and you can also mill safely with small milling cutters)
with 3000, 4000, 5000, 6000, 8000 and 10000 rpm
Max. cutter diameter: approx. 280mm

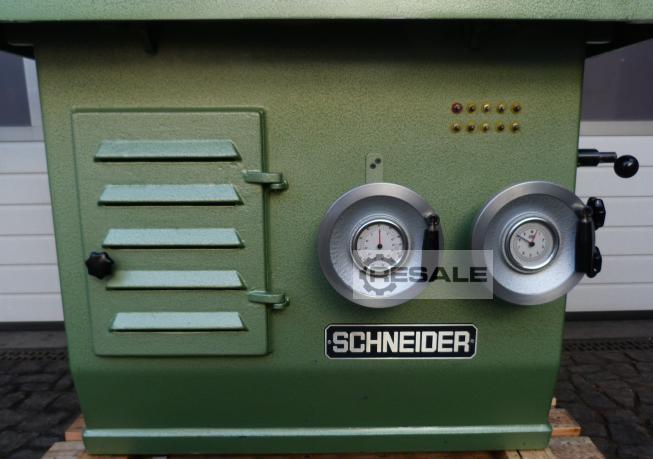

the spindle height adjustment is also done with a handwheel, there is also a very accurate, mechanical count clock
the table is made of high-ribbed gray cast iron
with replaceable spindle (a 40 mm spindle can also be L51236686 used)
very robust and durable design, the machine was built for the heaviest milling work, it is suitable for all milling work
Optimum power transmission through V-belt drive
with description

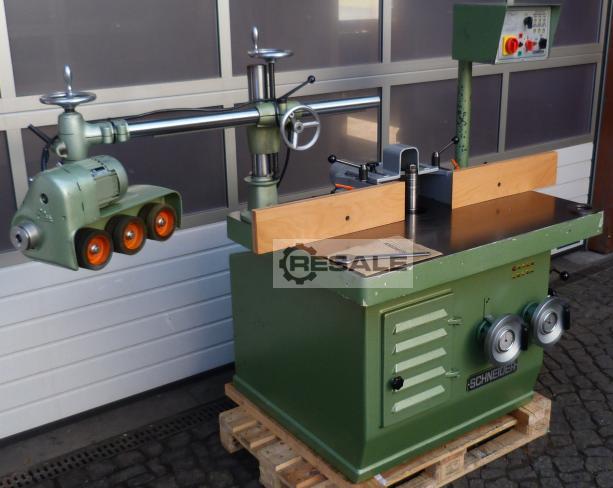

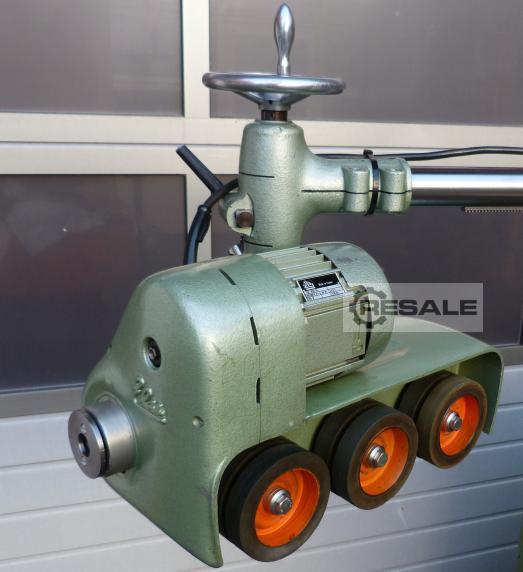

with 3-roller feed ELU, type MVA 34, the speed can be infinitely adjusted from 3 to 23 m/min
the feed has clockwise/counterclockwise rotation, the feed rollers are individually mounted
The machine table is 1150mm wide and 840mm deep
the machine can be used immediately
380V, 4900 and 5800W through the 2 speeds
The machine weighs about 850kg
with motor protection switch against overload
Professional equipment, no DIY store scrap
optimal, simple, fast and safe handling
very good condition, the machine comes from an assembly company and was only used for modification work, the last few years it was no longer needed and that's why it is now being sold
everything works perfectly
all bearings and guides are OK
Built in 1990
the machine has the control panel at the top
both stop jaws can be adjusted in depth on the milling fence, which means that dressing work can also be carried out, e.g. on a gluing profile
with spindle lock by lever
the chips can be removed very well, with 2 suction nozzles 120mm, on the milling fence and on the machine table
with 30 spindle, which can be swivelled continuously from -5 to 45°, the spindle is swivelled with a handwheel, with a very precise, mechanical count clock
with right/counterclockwise rotation
the machine will be delivered and demonstrated by us personally throughout Germany for 220.00 euros, so you have no risk when buying, shipping to Austria and the rest of the EU is also possible on request
with a large table opening, which can be reduced by different rings (this means that milling cutters with a very large diameter can also be used and you can also mill safely with small milling cutters)
with 3000, 4000, 5000, 6000, 8000 and 10000 rpm
Max. cutter diameter: approx. 280mm
the spindle height adjustment is also done with a handwheel, there is also a very accurate, mechanical count clock
the table is made of high-ribbed gray cast iron
with replaceable spindle (a 40 mm spindle can also be L51236686 used)
very robust and durable design, the machine was built for the heaviest milling work, it is suitable for all milling work
Optimum power transmission through V-belt drive
with description
with 3-roller feed ELU, type MVA 34, the speed can be infinitely adjusted from 3 to 23 m/min
the feed has clockwise/counterclockwise rotation, the feed rollers are individually mounted
The machine table is 1150mm wide and 840mm deep
the machine can be used immediately
380V, 4900 and 5800W through the 2 speeds
The machine weighs about 850kg
with motor protection switch against overload
Professional equipment, no DIY store scrap
optimal, simple, fast and safe handling
