MORI SEIKI NL 3000 MC / 700

turning diameter: max. 420 mm
turning length: 713 mm
control: MSX 850 III MAPPS Mitsubishi
swing over bed: 995 mm
Swing dia. over traverse guideway: 825 mm
max. turning diameter: 420 mm
max. bar capacity: 90 mm

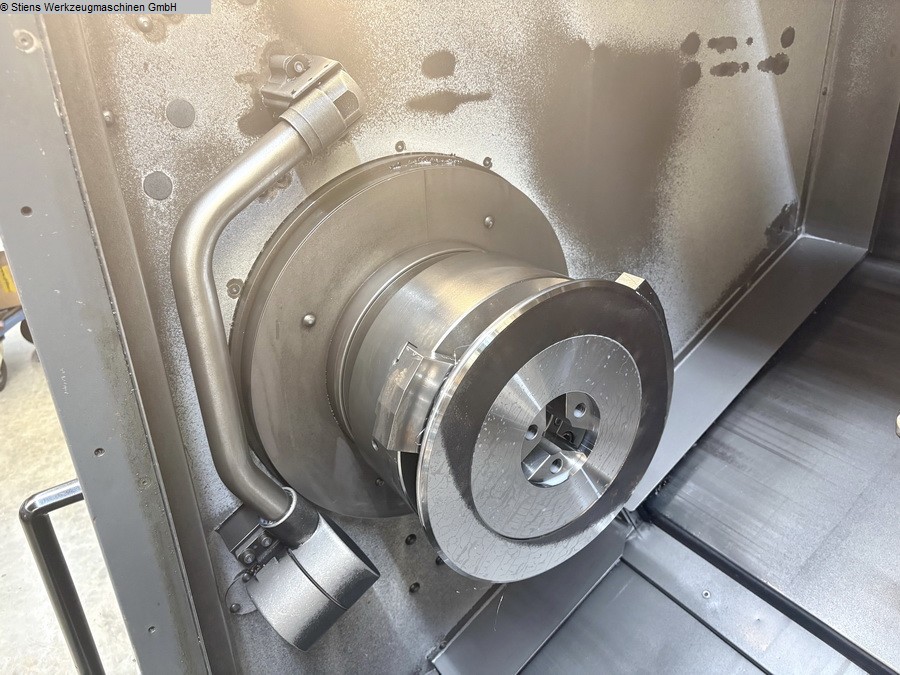

Main spindle::
turning speed range - main spindle: max. 3.000 min/-1
power capacity - main spindel: 30 / 25 kW
spindle nose: JIS A2-8
spindle bearing diameter: 160 mm
spindle bore: 105 mm
max. bar capacity: 90 mm
C-Axis: 0,001 °
axis stroke::
x-axis: 280 mm
z-axis: 820 mm

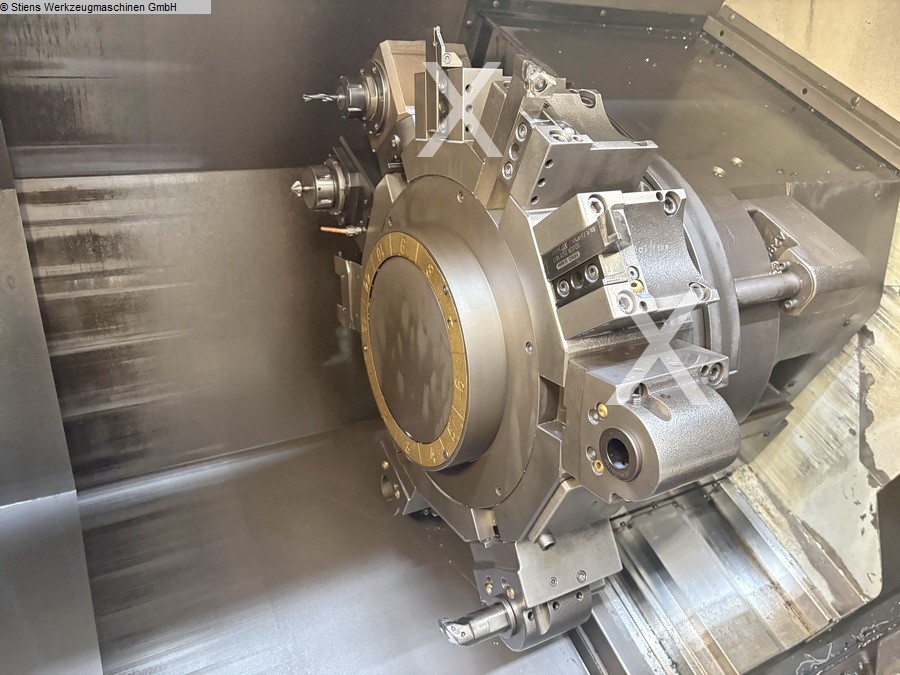

turret::
Tooling: 12 Pos.
Schank height for square tool: 25 mm
Diameter of boring bar: 50 mm
turret change time: 0,3 sec.
Spindle speed - driven tool stations: max. 6.000 min -1
power capacity driven tool-stations: 5,5 / 3,7 kW
feeds::
rapid traverse X-axis: 30 m/min
rapid traverse Z-axis: 30 m/min
rapid traverse C-axis: 300 min/-1
Tailstock::
tailstock: 734 mm
diameter of quill: 110 mm
taper of center: MK 5
total power requirement: 46 kVA
weight of the machine ca.: 6,0 t
dimensions of the machine ca.: 5,0 x 3,0 x 2,5 m
Documents:
Chip conveyor:
exhaust fan: Tebaron
tool setter:
Coolantsystem:
triple signal light:
tool holders: 10x
driven tools: 4x

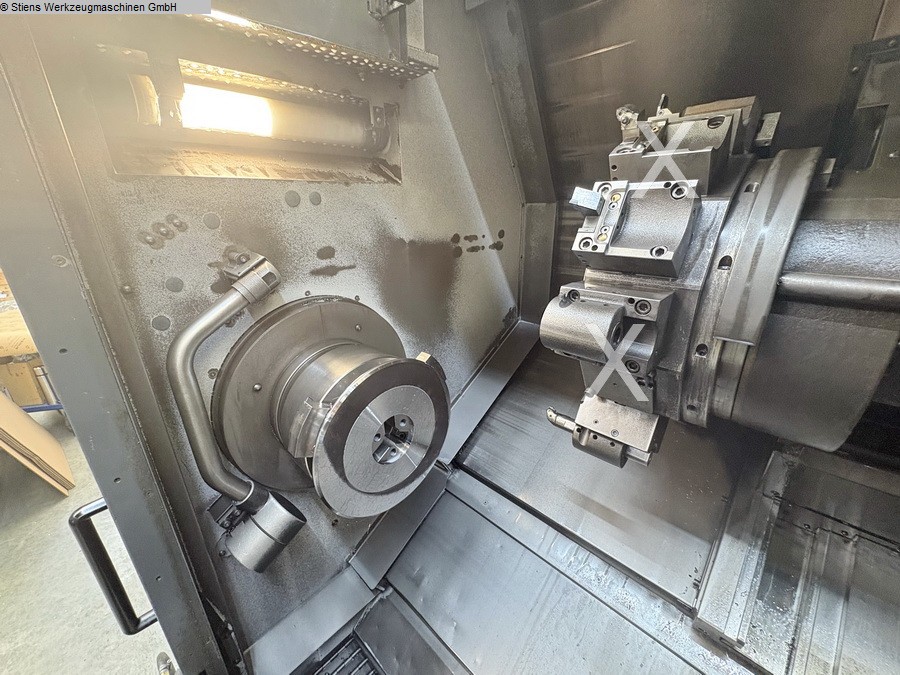

CNC - Turning- and Milling Center
MORI SEIKI - NL 3000 MC / 700

- Operating time: approx. 9,595 hours
- Processing time: approx. 7,552 hours



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1039-9467
