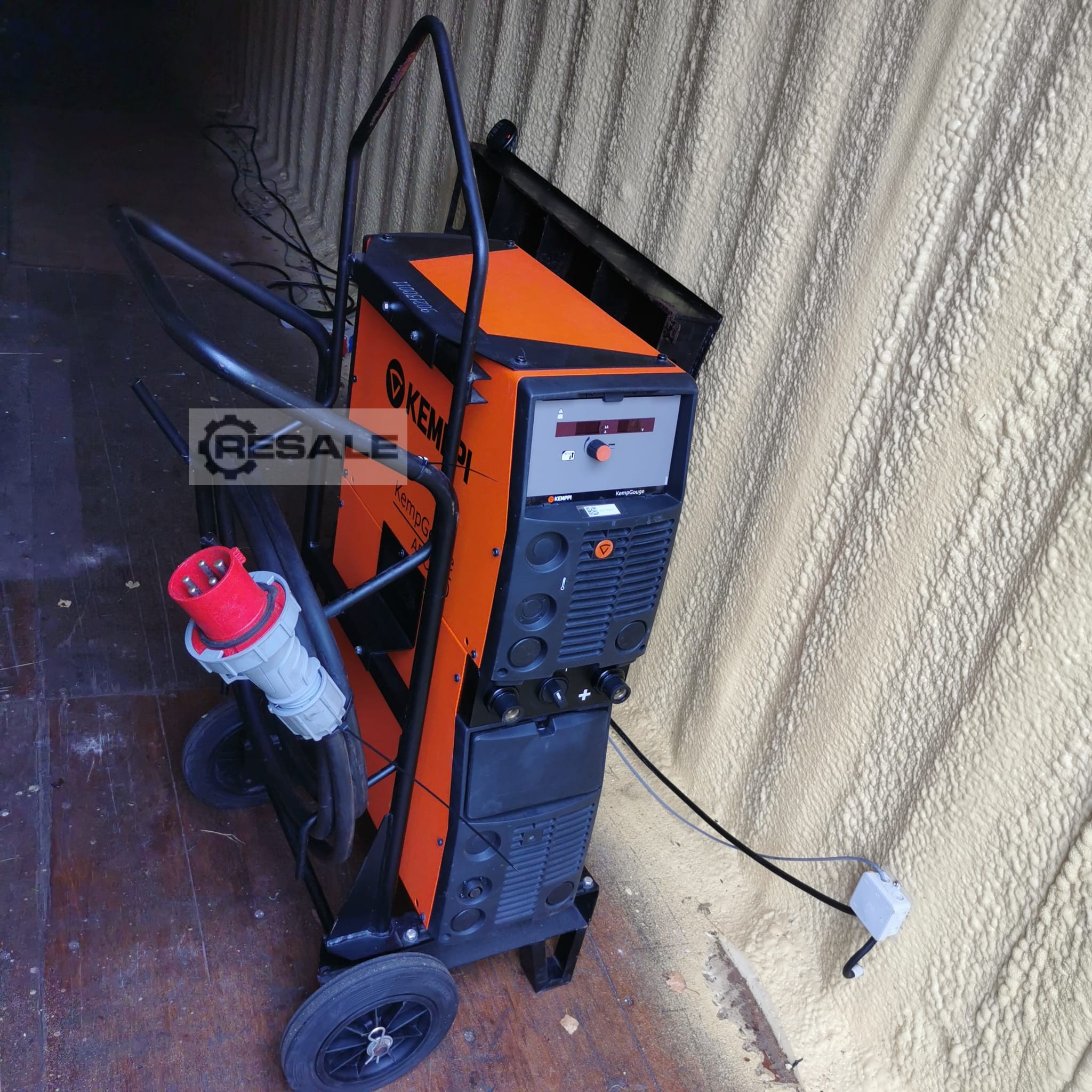

Welding Equipment KEMPPI KempGouge ARC 800

• Year 2022 (like new)

• Offering up to 800 amps of gouging power with 50 % dutycycle,

• the KempGouge ARC 800 is a heavy duty power source package that is designed for all types of carbon arc gouging.

• KempGouge can be used with the majority of metals, such as steel, stainless steel, cast iron, nickel, copper, magnesium, andaluminum.
• KempGouge lets you open roots or faulty welds and cracks, prepare welding grooves, cut metals, make holes and cleancasts, and remove excess metal.

• The characteristics curve controlling the KempGouge’s operating parameters has been designed specifically for carbon arc gouging, so its gouging properties are optimal.

• The noise levels of KempGouge have also been kept very low.

• FAST AND EFFECTIVE Way to remove defects, backgouge the root, cut metal and pierce holes

• EASY WAY To move the equipment and adjust the gouging N51254819 current


TECHNICAL N51254819 SPECIFICATIONS


Connection voltage 3~ 50/60 Hz400 V -15...+20 %

Fuse (delayed)63 A

Output (MMA) 50% ED800 A/44 V

Output (MMA) 100% ED600 A/44 V

Open circuit voltage50 V

Operating temperature range-20 ... +40 °C

External dimensions LxWxH700 × 660 × 1400 mm (with transport unit)

Weight (no accessories)115 kg (with transport unit)

Degree of protectionIP23S

seller offer No. resale 168219665
